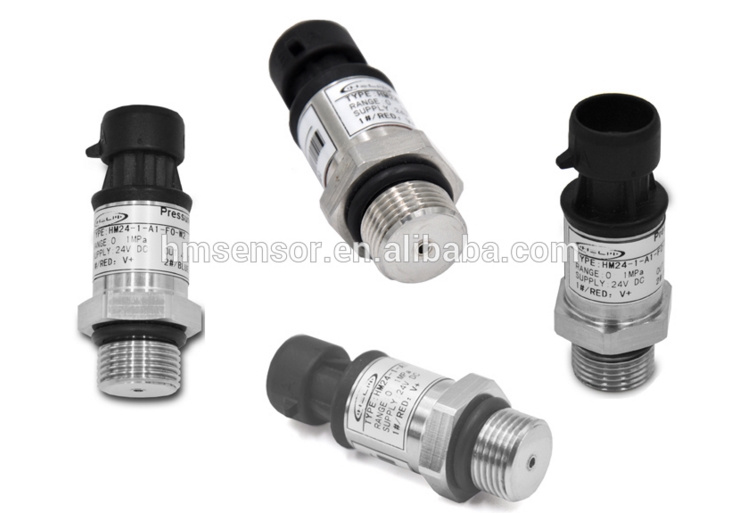

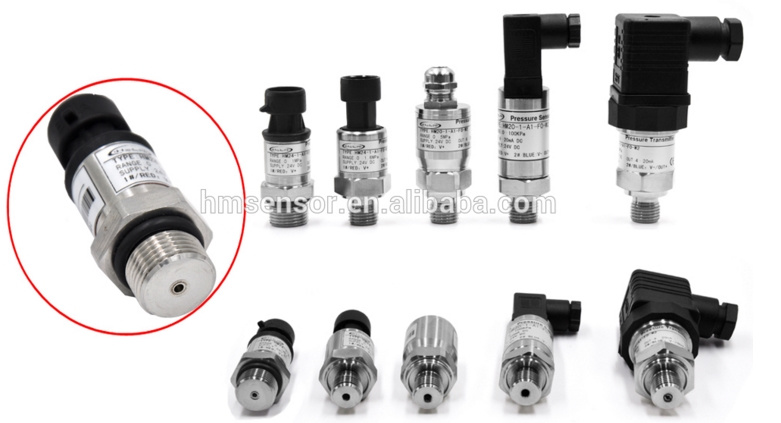

Hm600-5-24 Economical Pressure Sensor, Low Cost OEM Pressure Transmitter

Name: Hm600-5-24 Economical Pressure Sensor, Low Cost OEM Pressure Transmitter
Brand: all-electronics-online.com
SKU: 836639365
Availability: InStock
Rating: 4.7 (125 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM600-5-24

Product Description

Product overview
HM600-5-24 Economical Pressure Sensor and Transducer is a civil and industrial product with large consumption and low costs, for which a new standard of cost performance has been established. This series of products is widely used for pneumatic and hydraulic detection even in very harsh medium environment such as sewage, vapor, slight corrosive liquid and gas.

Features&Application
Product Features Product Applications
•Leakage protection •Pump and compressor
•Low-cost OEM •Hydraulic and pneumatic system
•Free of O-ring, silicone oil, and welding seam •Energy and water treatment system
•Single-piece integrated structure made of stainless steel •Automatic detection system
•Millivolt or standard signal output •Agricultural equipment
•High cost performance •Refrigeration equipment --- Freon or ammonia
•Wide range of operating temperature

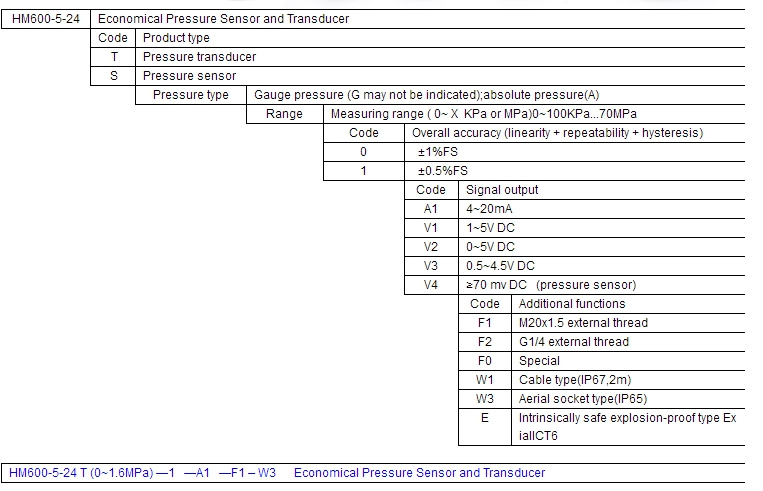

Tips for Type Selection:
1. The medium to be measured shall be compatible with the material contacting with the product.
2.As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type Ex iaIICT6 denotes that power source must be supplied via safety barrier
3. For other special requirements, please discuss with us and clearly indicate them in the order.

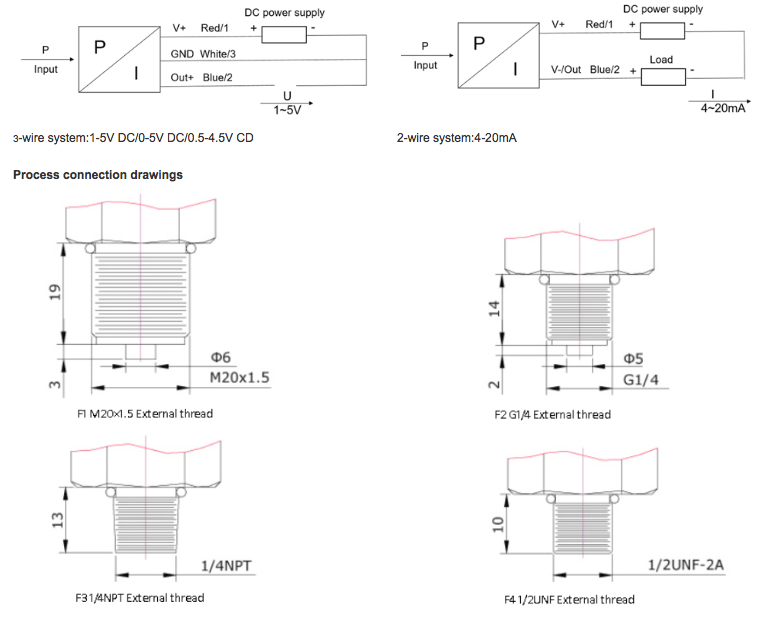

Electric Connection

Plug	Cable	4-20mA	1-5V/0~5V/0.5-4.5V DC
1	Red	Positive power supply: +V	Positive power supply: +V
2	Blue	Signal output / negative power supply: OUT/-V	Positive signal output: +OUT
3	White	Idle	Common port / power source end: GND/-V
4	Yellow	Grounded in case of strong disturbance	Reliably grounded in case of strong disturbance

Certifications

Packaging & Shipping

Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
