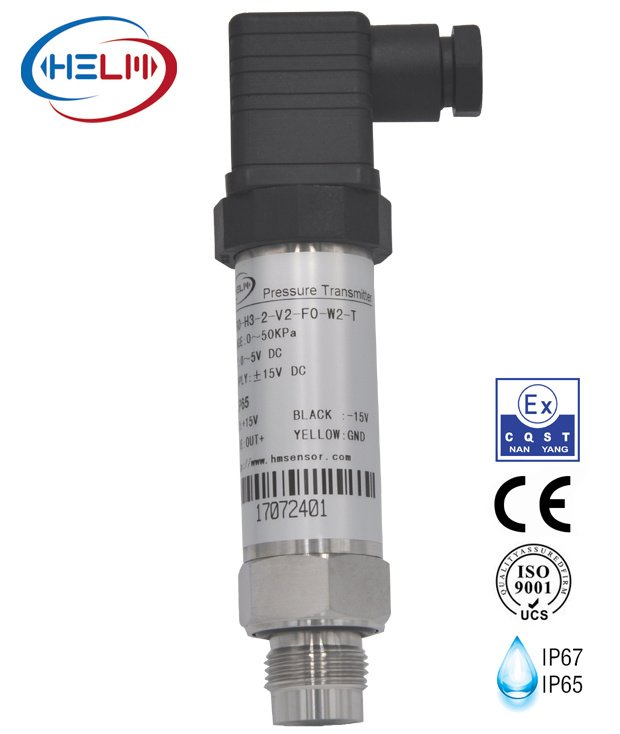

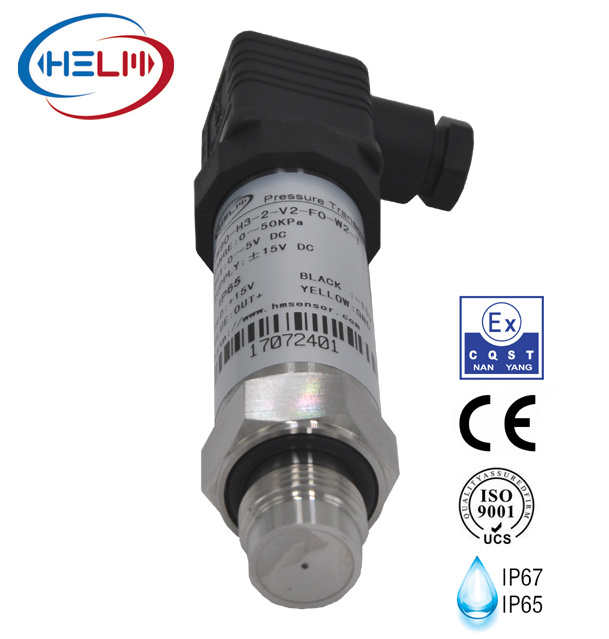

Hm90h3 Hot Sale/ OEM/ Small Size /High-Frequency Pressure Transducer /Sensor 4~20mA

Hm90h3 Hot Sale/ OEM/ Small Size /High-Frequency Pressure Transducer /Sensor 4~20mA
Price: US $ 250-310/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Contact Supplier
Showroom Product Company Profile
Prod Model: HM90H3

Product Description

Product Overview
    In military engineering, chemical explosion test, petroleum investigation and exploitation, petroleum well test, material, mechanics, civil engineering, geo-mechanics, traumatic medicine, hydraulic power mechanical test and other scientific tests as well as modern instruments and meters, undistorted measurement of some frequently -changing dynamic pressure form, amplitude, and effective value with fast and steep pressure waveform rise shall be made. This requires that the pressure sensors used have high intrinsic frequency, very short rise time, and wide and good response frequency band to ensure sufficient dynamic pressure measurement accuracy. HM90 high-frequency dynamic pressure transducer is specially designed for this purpose. It adopts high - performance chip of a foreign company, using micro machining technology to enable small effective dimensions and high intrinsic frequency of the integrated silicon chip. It boasts good elastic mechanics characteristics and its comprehensive performance is better than that of piezoelectric dynamic pressure sensor. Thus, it is ideal for dynamic pressure measurement.

Features/Application

Product Features                                                                                                                            Product Application

• Stainless steel enclosure, with excellent corrosion resistance                                           • Military engineering

• Wide pressure measuring range                                                                                               • Chemical explosion test

• Intrinsic frequency up to 2MHz                                                                                                    • Petroleum investigation and exploitation and petroleum

• Stable working                                                                                                                                 well test

• Strong interference immunity                                                                                                      • Mechanics

• Genuine imported module with stable performance                                                             • Civil engineering

• Small dimensions, light weight, a variety of types and high cost      performance           • Geo-mechanics

• Wide range of measured medium                                                                                            • Traumatic medicine

                                                                                                                                                            • Hydraulic power mechanical test and other scientific tests


Dimensions

 Tips for Type Selection:
1.Three output frequencies of the product are available (H1, H2, and H3). The user can determine the most suitable frequency output  range based on the industrial and mining requirements to make the product selection more economical.
2. During the field installation of flush diaphragm, the correct sealing method shall be adopted to prevent the installation stress      influencing product stability.
3. The code E, an additional function code for selection, namely, intrinsically safe explosion-proof type Ex iaIICT5, must be power supplied via safety barrier.
4.Please contact us for other special requirements and clearly indicate them in the order.

Certifications



Packaging & Shipping


Established in 2006, Nanjing Helm Sci-tech Co., Ltd. (Nanjing Jiucheng technology Co., Ltd) is specialized in R&D and production of pressure measuring and controlling instruments. It has introduced the internationally advanced production technology, equipment and process as well as strict product quality standards and ODM cooperation concept to China, so as to manufacture and sell JC pressure / differential pressure / liquid level sensors and transducers in mainland China.

Our products have been fallen into six categories totaling hundreds of specifications in dozens of series. Main products include: High-accuracy Pressure Sensor, General-purpose Pressure transducer, Liquid Level transducer, Anti-lightning/Anti-corrosive Liquid Level transducer, Special Pressure transducer for Air Conditioner, Refrigeration and Compressor, Special Pressure transducer for Oilfield and Mining Well, Economical Pressure Sensor and transducer, Ceramic Capacitor Pressure transducer, Vacuum Pressure transducer, Sapphire Pressure transducer, Digital Pressure transducer, Micro Differential Pressure / Air Pressure transducer, Intelligent Digital Pressure Gauge, Intelligent Digital Pressure Switch, Anti-corrosive Pressure transducer, Anti-explosive Pressure transducer, Hygienically Flat-membrane Pressure transducer, High-temperature Pressure transducer, High-frequency Pressure transducer, Micro Pressure transducer, Integrated Temperature transducer, and Capacitance Pressure transducer.
