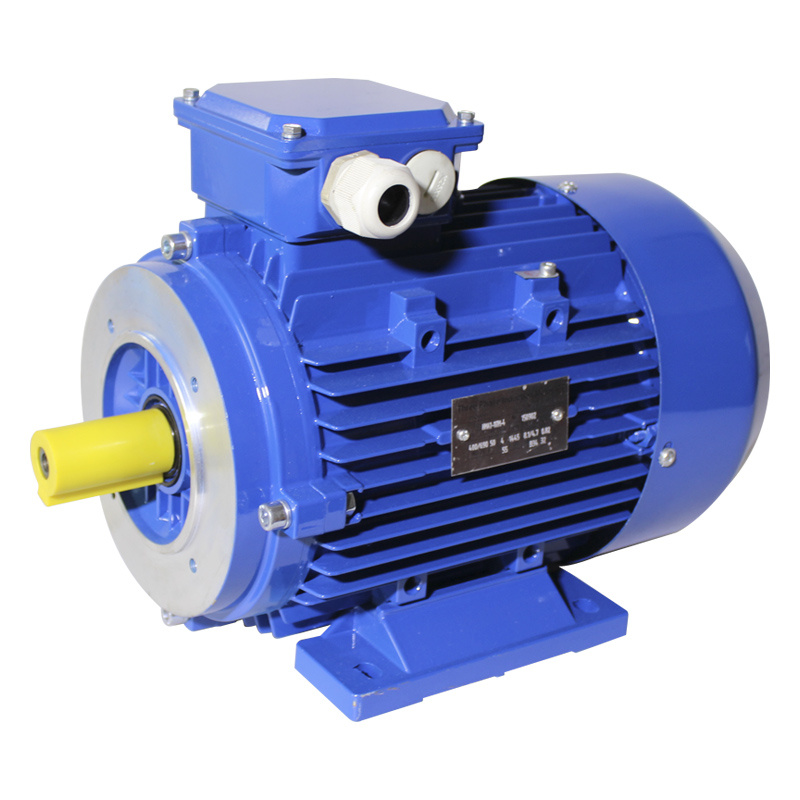

Hmdt Series Three-Phase Multispeed Induction Motor
| Price: |
US $ 52.8-1476.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HMDT multispeed motor |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Brand: |
Customized |
| Number Of Poles: |
2-8poles |
Product Description
HMDT series 3 phase multispeed induction motor devices from Y2 series motor, and it switches poles and output power by transforming the joint mode of winding to matching to the load performance of mechanical equipment. It conforms to IEC standard on noise, starting torque, vibration value and mounting and overall dimensions. And the motors have characteristics such as small size, light, stable, firm structure, good appearance, and so on.
Technical data:
| HMDT series three phase multispeed induction motor |
| Type | Poless | Output | Rated current | Efficiency | Power factor | Is/In | Ts/Tn | Tmax/Tn |
| KW | (A) | % | COSΦ |
| HMDT801-4/2 | 1500/3000 | 0.17/0.75 | 0.65/1.86 | 62/72 | 0.62/0.82 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| HMDT802-4/2 | 1500/3000 | 0.25/0.95 | 0.87/2.33 | 66/74 | 0.65/0.81 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| TDT90S-4/2 | 1500/3000 | 0.3/1.4 | 0.85/3.43 | 73/74 | 0.72/0.82 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| HMDT90L-4/2 | 1500/3000 | 0.4/1.9 | 1.08/4.27 | 74/77 | 0.73/0.86 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| HMDT100L1-4/2 | 1500/3000 | 0.65/2.5 | 1.85/5.25 | 74/82 | 0.72/0.87 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| HMDT100L2-4/2 | 1500/3000 | 0.8/3.1 | 2.17/6.39 | 76/82 | 0.72/0.87 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| HMDT112M-4/2 | 1500/3000 | 1.1/4.4 | 2.42/9.15 | 80/82 | 0.74/0.88 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| HMDT132S-4/2 | 1500/3000 | 1.4/5.9 | 3.5/11.68 | 80/83 | 0.74/0.91 | 5.5/7.5 | 1.3/1.9 | 1.8 |
| HMDT132M-4/2 | 1500/3000 | 2/8 | 4.65/15.29 | 83/85 | 0.77/0.91 | 5.5/7.5 | 1.3/1.9 | 1.8 |
| HMDT160M-4/2 | 1500/3000 | 2.8/12.5 | 6.56/24.04 | 85/86 | 0.75/0.91 | 5.5/7.5 | 1.3/1.9 | 1.8 |
| HMDT160L-4/2 | 1500/3000 | 3.8/16.5 | 8.64/30.98 | 86/87 | 0.76/0.91 | 5.5/7.5 | 1.5/1.9 | 1.8 |
| HMDT90S-8/4 | 750/1500 | .22/1.0 | 0.92/2.44 | 57/73 | 0.62/0.82 | 5.0/7.5 | 1.5/1.9 | 1.8 |
| HMDT90L-8/4 | 750/1500 | 0.3/1.3 | 1.18/3.10 | 60/75 | 0.63/0.82 | 5.0/7.5 | 1.5/1.9 | 1.8 |
| HMDT100L1-8/4 | 750/1500 | 0.55/2.0 | 2.07/4.68 | 65/80 | 0.61/0.80 | 5.0/7.5 | 1.5/1.9 | 1.8 |
| HMDT100L2-8/4 | 750/1500 | 0.65/2.4 | 2.37/5.48 | 66/80 | 0.61/0.80 | 5.0/7.5 | 1.5/1.9 | 1.8 |
| HMDT112M-8/4 | 750/1500 | 0.9/3.2 | 3.24/7.40 | 71/83 | 0.59/0.78 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| HMDT132S-8/4 | 750/1500 | 1.1/4.5 | 3.68/9.68 | 75/84 | 0.59/0.82 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| HMDT132M-8/4 | 750/1500 | 1.5/6.3 | 4.84/13.13 | 78/85 | 0.59/0.83 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| HMDT160M-8/4 | 750/1500 | 2.0/8.9 | 5.34/18.14 | 82/85 | 0.67/0.85 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| HMDT160L-8/4 | 750/1500 | 2.7/12 | 6.9/23.47 | 84/86 | 0.67/0.86 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| HMDT180M-8/4 | 750/1500 | 4/16 | 10.83/31.77 | 84/88 | 0.65/0.85 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| HMDT180L-8/4 | 750/1500 | 5/19.5 | 13.32/38.56 | 85/89 | 0.66/0.85 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| HMDT200L-8/4 | 750/1500 | 7.5/29 | 19.57/56.8 | 87/90 | 0.66/0.85 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| HMDT225M-8/4 | 750/1500 | 9.5/40 | 25.43/74.57 | 88/91 | 0.64/0.88 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| HMDT250M-8/4 | 750/1500 | 14.5/52 | 36.97/97.29 | 88/91 | 0.66/0.87 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| HMDT280S-8/4 | 750/1500 | 17/65 | 41.73/122.74 | 89/91 | 0.68/0.87 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| HMDT280M-8/4 | 750/1500 | 18.5/75 | 43.86/137.39 | 90/91 | 0.70/0.88 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| HMDT315S-8/4 | 750/1500 | 25/92 | 58.71/174.76 | 90/91 | 0.70/0.86 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| HMDT315M-8/4 | 750/1500 | 30/110 | 70.11/2.8026 | 91/92 | 0.70/0.86 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| HMDT315L1-8/4 | 750/1500 | 36/135 | 83.99/253.26 | 91/92 | 0.70/0.87 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| HMDT315L2-8/4 | 750/1500 | 41/155 | 94.72/287.97 | 91/92 | 0.71/0.87 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| HMDT90S-6/4 | 1000/1500 | 0.32/1.1 | 1.0/2.86 | 66/73 | 0.66/0.78 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT90L-6/4 | 1000/1500 | 0.45/1.4 | 1.43/3.43 | 70/75 | 0.66/0.81 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT100L1-6/4 | 1000/1500 | 0.7/2.2 | 2.15/5.22 | 73/80 | 0.66/0.79 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT100L2-6/4 | 1000/1500 | 0.9/2.5 | 2.86/5.96 | 74/81 | 0.67/0.78 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT112M-6/4 | 1000/1500 | 1.1/3.2 | 3.09/7.03 | 78/82 | 0.68/0.82 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT132S-6/4 | 1000/1500 | 1.5/4.7 | 4.06/10 | 81/84 | 0.68/0.83 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT132M-6/4 | 1000/1500 | 2.2/6.7 | 5.7/13.71 | 83/85 | 0.69/0.85 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT160M-6/4 | 1000/1500 | 3.1/9.5 | 7.9/19.3 | 83/87 | 0.69/0.84 | 7.0/7.5 | 1.6/1.8 | 1.8 |
| HMDT160L-6/4 | 1000/1500 | 4/12 | 10/24.36 | 83/88 | 0.69/0.84 | 7.0/7.5 | 1.6/1.8 | 1.8 |
| HMDT180M-6/4 | 1000/1500 | 5.1/15.5 | 11.5/29 | 81/87 | 0.72/0.84 | 7.0/7.5 | 1.6/1.8 | 1.8 |
| HMDT180L-6/4 | 1000/1500 | 6.2/18.5 | 13.85/34.3 | 81/87 | 0.74/0.85 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| HMDT200L-6/4 | 1000/1500 | 8.7/26 | 19.1/48.2 | 83/88 | 0.77/0.85 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| HMDT225S-6/4 | 1000/1500 | 11/33 | 8.2/60.7 | 84/99 | 0.84/0.86 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| HMDT225M-6/4 | 1000/1500 | 13/39 | 27.3/71.3 | 85/90 | 0.85/0.86 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| HMDT250M-6/4 | 1000/1500 | 16/47 | 32.3/84.2 | 85/90 | 0.87/0.89 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| HMDT280S-6/4 | 1000/1500 | 18.5/55 | 37.3/99.6 | 85/90 | 0.86/0.88 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| HMDT280M1-6/4 | 1000/1500 | 25/70 | 48.4/125 | 87/91 | 0.87/0.88 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| HMDT280M2-6/4 | 1000/1500 | 28/84 | 54.8/150.6 | 87/91 | 0.87/0.88 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| HMDT315S-6/4 | 1000/1500 | 32/95 | 65.3/177.4 | 89/91 | 0.79/0.86 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| HMDT315M-6/4 | 1000/1500 | 38/115 | 77.9/217.5 | 90/92 | 0.78/0.86 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| HMDT315L1-6/4 | 1000/1500 | 45/135 | 90.5/260 | 90/92 | 0.80/0.86 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| HMDT315L2-6/4 | 1000/1500 | 55/160 | 113.4/294 | 91/93 | 0.80/0.86 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| HMDT90S-8/6 | 750/1000 | 0.25/0.65 | 1.22/2.24 | 52/65 | 0.58/0.63 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT90L-8/6 | 750/1000 | 0.35/0.80 | 1.58/2.87 | 56/67 | 0.58/0.63 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT100L1-8/6 | 750/1000 | 0.55/1.30 | 2.23/4.07 | 62/71 | 0.58/0.66 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT100L2-8/6 | 750/1000 | 0.75/1.60 | 2.86/3.11 | 66/74 | 0.59/0.67 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT112M-8/6 | 750/1000 | 0.9/2.20 | 3.32/6.0 | 68/77 | 0.59/0.70 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT132S-8/6 | 750/1000 | 1.20/2.60 | 4.05/6.85 | 73/79 | 0.60/0.71 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT132M1-8/6 | 750/1000 | 1.60/3.30 | 5.26/7.96 | 76/80 | 0.60/0.76 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT132M2-8/6 | 750/1000 | 2.20/4.50 | 7.02/10.95 | 77/82 | 0.60/0.75 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT160M-8/6 | 750/1000 | 3.20/6.50 | 9.43/14.84 | 81/85 | 0.61/0.76 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT160L-8/6 | 750/1000 | 4.50/9.0 | 12.97/20.21 | 82/86 | 0.62/0.77 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| HMDT180L-8/6 | 750/1000 | 6.5/13.0 | 17.77/29.07 | 81/86 | 0.65/0.77 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| HMDT200L1-8/6 | 750/1000 | 8.5/17 | 20.6/35.5 | 82/87 | 0.66/0.80 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| HMDT200L2-8/6 | 750/1000 | 11/21 | 27.8/44.3 | 83/88 | 0.68/0.80 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| HMDT225M-8/6 | 750/1000 | 15/30 | 32.2/62.3 | 87/89 | 0.78/0.83 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| HMDT250M-8/6 | 750/1000 | 18/37 | 38.5/72.1 | 87/90 | 0.81/0.86 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| HMDT280S-8/6 | 750/1000 | 22/45 | 46.2/86.8 | 88/90 | 0.81/0.86 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| HMDT280M1-8/6 | 750/1000 | 28/55 | 57.2/104.7 | 89/91 | 0.81/0.82 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| HMDT280M2-8/6 | 750/1000 | 32/65 | 66.6/122 | 89/91 | 0.81/0.82 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| HMDT315S-8/6 | 750/1000 | 37/75 | 40.4/145.1 | 90/91 | 0.78/0.84 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| HMDT315M-8/6 | 750/1000 | 45/90 | 90.4/171.6 | 91/92 | 0.80/0.85 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| HMDT315L1-8/6 | 750/1000 | 55/110 | 115.7/209.7 | 91/92 | 0.78/0.85 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| HMDT315L2-8/6 | 750/1000 | 66/132 | 137.4/252 | 91/92 | 0.78/0.85 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| HMDT112M-8/6/4 | 750/1000/1500 | 0.6/0.8/2.3 | 2.74/3.16/5.88 | 61/65/79 | 0.53/0.57/0.73 | 4.0/6.5/7.5 | 1.3/1.7/2.0 | 1.8 |
| HMDT132S-8/6/4 | 750/1000/1500 | 0.8/1.1/3.1 | 3.06/3.9/7.14 | 68/71/81 | 0.57/0.60/0.79 | 4.0/6.5/7.5 | 1.3/1.7/2.0 | 1.8 |
| HMDT132M-8/6/4 | 750/1000/1500 | 1.1/1.5/4.5 | 3.92/4.66/9.76 | 72/74/83 | 0.57/0.65/0.82 | 4.0/6.5/7.5 | 1.3/1.7/2.0 | 1.8 |
| HMDT160M-8/6/4 | 750/1000/1500 | 1.5/2.6/7.5 | 4.79/7.33/15.98 | 79/79/84 | 0.58/0.67/0.82 | 4.0/6.5/7.5 | 0.95/1.6/1.8 | 1.8 |
| HMDT160L-8/6/4 | 750/1000/1500 | 2.0/3.5/10.2 | 6.03/9.46/20.64 | 81/81/86 | 0.60/0.68/0.85 | 4.0/6.5/7.5 | 0.95/1.6/1.8 | 1.8 |
| HMDT180M-8/6/4 | 750/1000/1500 | 2.6/4.5/13 | 7.72/10.62/24.22 | 80/80/86 | 0.63/0.80/0.90 | 5.5/7.5/8.0 | 0.95/1.6/1.8 | 1.8 |
| HMDT180L-8/6/4 | 750/1000/1500 | 3.3/6/16 | 9.69/13.56/29.63 | 81/81/87 | 0.63/0.81/0.90 | 5.5/7.5/8.0 | 0.95/1.6/1.8 | 1.8 |
| HMDT200L-8/6/4 | 750/1000/1500 | 4.5/8/22 | 13.23/17.75/40.56 | 82/82/87 | 0.62/0.82/0.90 | 5.5/7.5/8.0 | 0.95/1.6/1.8 | 1.8 |
| HMDT225S-8/6/4 | 750/1000/1500 | 5.5/10/28 | 13.43/21.1/53.32 | 85/83/89 | 0.70/0.85/0.88 | 5.5/7.5/8.0 | 1.1/1.7/1.8 | 1.8 |
| HMDT225M-8/6/4 | 750/1000/1500 | 7.5/12/34 | 17.22/24.71/63.11 | 87/83/90 | 0.74/0.86/0.89 | 5.5/7.5/8.0 | 1.1/1.7/1.8 | 1.8 |
| HMDT250M-8/6/4 | 750/1000/1500 | 10/15.5/44 | 22.58/32.12/78.09 | 88/85/90 | 0.75/0.85/0.92 | 5.5/7.5/8.0 | 1.1/1.7/1.8 | 1.8 |
| HMDT280S-8/6/4 | 750/1000/1500 | 12/18/55 | 27.33/37.0/98.47 | 88/85/90 | 0.74/0.85/0.92 | 5.5/7.5/8.0 | 1.1/1.7/1.8 | 1.8 |
| HMDT280M-8/6/4 | 750/1000/1500 | 15/21/66 | 32.79/42.54/116.88 | 89/86/91 | 0.76/0.86/0.92 | 5.5/7.5/8.0 | 1.1/1.7/1.8 | 1.8 |
| HMDT315S-8/6/4 | 750/1000/1500 | 19/27/75 | 43.8/55.27/136.34 | 89/87/90 | 0.73/0.84/0.91 | 5.5/7.5/8.0 | 1.3/1.4/1.8 | 1.8 |
| HMDT315M-8/6/4 | 750/1000/1500 | 22/32/90 | 50.56/64.79/162 | 90/88/91 | 0.72/0.84/0.91 | 5.5/7.5/8.0 | 1.3/1.4/1.8 | 1.8 |
| HMDT315L1-8/6/4 | 750/1000/1500 | 28/40/115 | 62.47/79.73/204.23 | 90/88/91 | 0.74/0.85/0.91 | 5.5/7.5/8.0 | 1.3/1.4/1.8 | 1.8 |
| HMDT315L2-8/6/4 | 750/1000/1500 | 35/51/140 | 80.16/101.83/253.64 | 91/89/92 | 0.72/0.84/0.90 | 5.5/7.5/8.0 | 1.3/1.4/1.8 | 1.8 |
Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.
Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.
We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
