Hmk Special Used for Air-Compressor Three Phase Asynchronous Induction High Efficiency Electric Motor

Name: Hmk Special Used for Air-Compressor Three Phase Asynchronous Induction High Efficiency Electric Motor
Brand: all-electronics-online.com
SKU: 779509155
Availability: InStock
Rating: 4.6 (46 reviews)

Price:	US $ 50-4800/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HMK air-compressor Frame Size 80~355 0.75~315KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size:	80~355mm
Frequency:	50Hz, 60Hz
Output Power:	0.75~315kw
Voltage:	220/380V, 380/660V, 230/400V, 400V/690V
Insulation Class:	B\F\H
Protection:	IP55
Cooling Method:	IC411
Mounting Type:	B3, B5, B14, B35multi and Pad Mounting
Wire:	100% Copper Wire
Number Of Stator:	Three-Phase
Function:	Control
Number Of Poles:	2, 4, 6, 8
Certification:	CE
Brand:	Hongma

Product Description

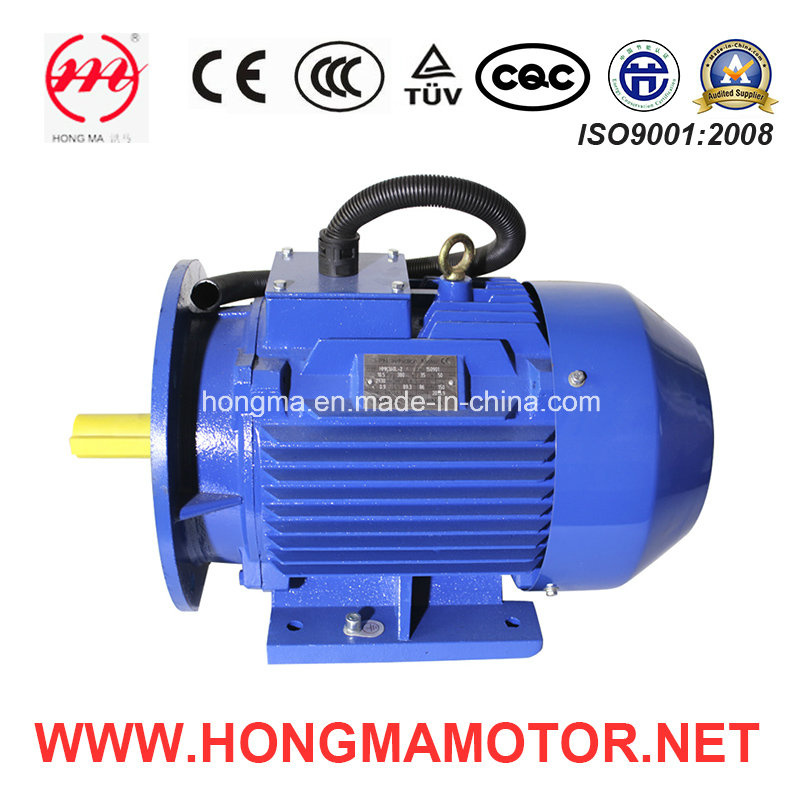

HMK Series motor is special designed for air compressor, frame size from 80 to 355, with insulation class F, we can also make longer leads consider the cable of the motor connect with the electric cabinet of the compressor directly, cable sheath is used for protection, and on both ends fixed with pipe cable glands, the dimensions of the pipe cable gland is indicated at the section of the terminal box. It featured high efficiency, energy saving, reliable performance, and it is suitable for continuous operation for the compressor.

1. 100% output with 100% copper winding;
2. Hongma customer's requirement & customer's drawing;
3. Different size of flange to fit for different device, customized flange is workable.
4. All materials are brand-NEW.

Technical Data

Frame Size	80~355mm
Frequency	50Hz, 60Hz
Output Power	0.75~315KW
Voltage	220/380V, 380/660V, 230/400V, 400V/690V
Insulation Class	B,F,H
Protection	IP55
Cooling Method	IC411
Wire	100% Copper Wire
Mounting Type	B3,B5,B14,B35multi and pad mounting
Pole	2, 4, 6, 8

FENGHUA CITY ELECTRICAL MOTOR CO., LTD
Add: NO.4 Changhe North Rd, Fangqiao, Fenghua, Ningbo,
Zhejiang Province, P. R. CHINA
Tel: +574 55339278
Fax:+574 8865 0988
Mob: +86 15867838828

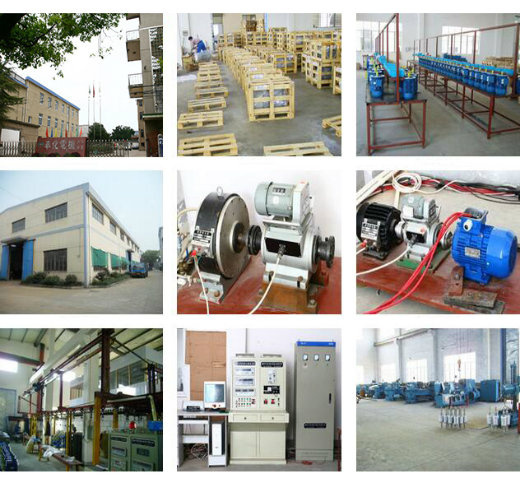

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
