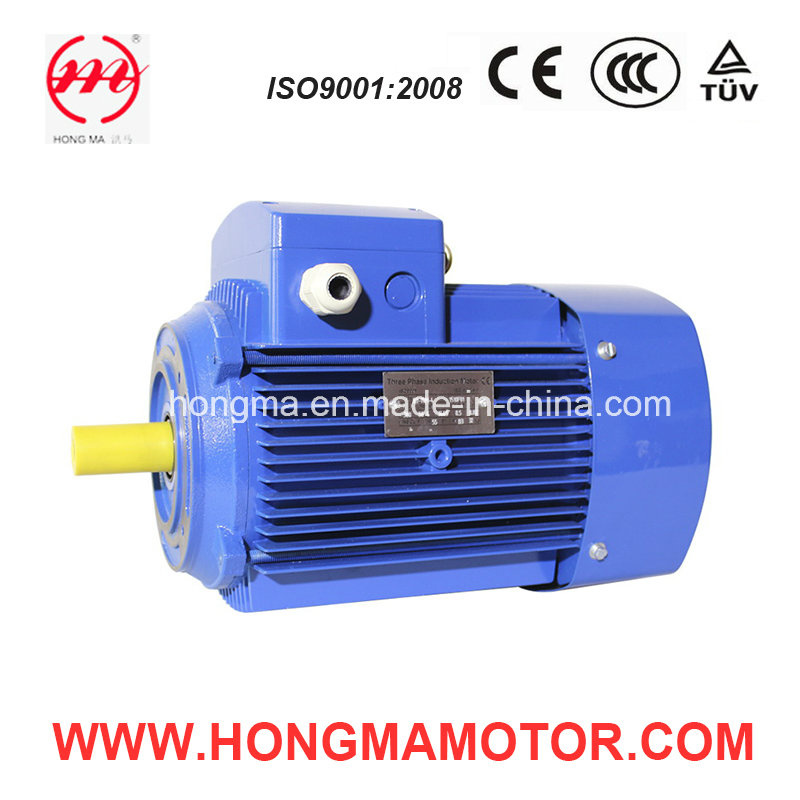

Hmp Series Pump Aluminium Three Phase Asynchronous Induction High Efficiency Electric Motor

Name: Hmp Series Pump Aluminium Three Phase Asynchronous Induction High Efficiency Electric Motor
Brand: all-electronics-online.com
SKU: 780588335
Availability: InStock
Rating: 4.8 (130 reviews)

Price:	US $ 55-260/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HMP Frame Size 71~160 0.37~18.5KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size:	71~160mm
Frequency:	50Hz, 60Hz
Output Power:	0.37kw-18.5kw
Voltage:	220/380V, 380/660V, 230/400V, 400V/690V
Insulation Class:	B\F\H
Protection:	IP55
Cooling Method:	IC411
Mounting Type:	B14, B5
Wire:	100% Copper Wire
Number Of Stator:	Three-Phase
Function:	Control
Certification:	CE
Brand:	Hongma

Product Description

HMP series three phase asynchronous electric motors, is developed as a new design of our company based on the characteristics of water pumps. HMP series motors with unique appearance, IP55 protection degree, class F insulation, and a good function of energy saving can reach high efficiency class in line with international standard IE2, IE3 and China's GB2&GB3, which has made it an ideal energy saving product. Moreover, it has other good features like high starting torque, slight noise, low vibration, optimum structure, convenient operation and so on. In order to solve problems like high torque, vibration and noise in pumps, we use cast iron material for all front flange and rear endshiled in our new HMP motors, and this improvement can completely meet the application of various types of pumps.

1. 100% output with 100% copper winding;
2. Hongma customer's requirement & customer's drawing;
3. Different size of flange to fit for different device, customized flange is workable.
4. All materials are brand-NEW.

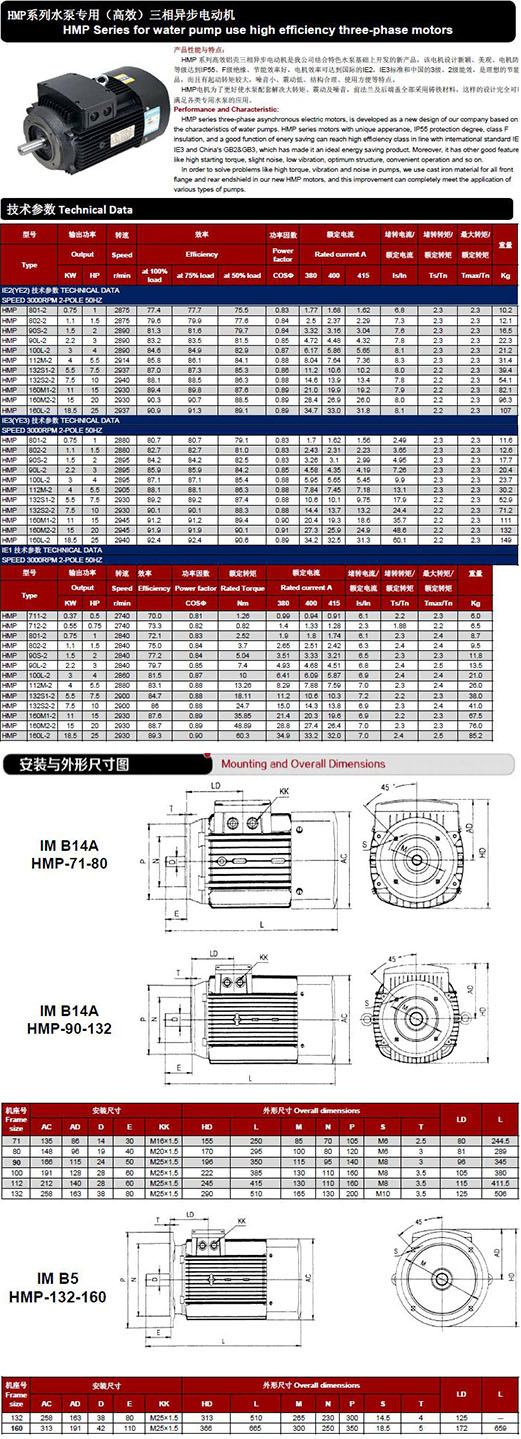

Technical Data

Frame Size	71~160mm
Frequency	50HZ, 60HZ
Output Power	0.37KW-18.5KW
Voltage	220/380V,380/660V,230/400V,400V/690V
Insulation Class	B,F,H
Protection	IP55
Cooling Method	IC411
Wire	100% Copper Wire
Mounting Type	B5, B14
Pole	2

FENGHUA CITY ELECTRICAL MOTOR CO., LTD
Add: NO.4 Changhe North Rd, Fangqiao, Fenghua, Ningbo,
Zhejiang Province, P. R. CHINA
Tel: +574 55339278
Fax:+574 8865 0988
Mob: +86 15867838828
Website: www.hongmamotor.net

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.
