| Prod Model: |
PL16 8000w |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Western Europe |
| Input Voltage Range: |
185VAC-275VAC |
| Frequency Range: |
40Hz-65Hz |
| Rated Output Power: |
8000W |
| Power Factor: |
0.9~1.0 |
| Nominal Charge Current: |
35A/50A |
| Dimension(L*W*H): |
538*255*630mm |
| Net Weight: |
66.1kg |
| Warrenty: |
12 Months |
| Power Source: |
Electric Power |
Product Description

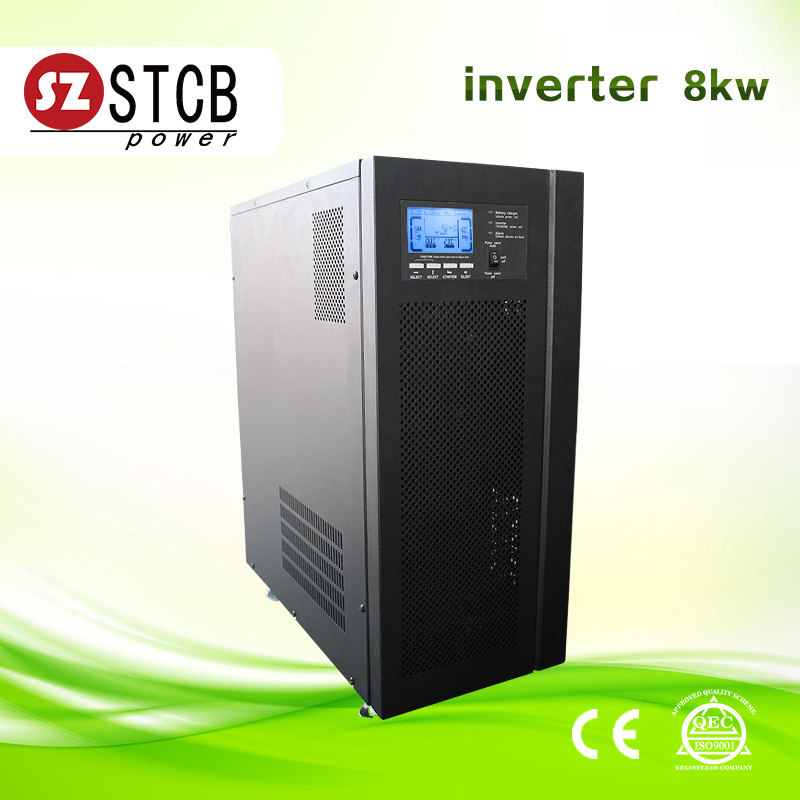

Home applications soalr power inverter 8kw
Main Features:
1. LCD digital display show voltage, load and battery information in real time.
2. Peak power is 3 times of rated power.
3. Work with inductive load such as air conditioner, motor door and so on.
4. Pure sine wave output, available for sensitive load.
5. 5 stages progressive charging
6. Fast and powerful charger with 35A and 50A
7. Built in charge controller 40A/60A (Optional)
8. generator compatible
9. High power factor 0.9, low power consumption.
10. Automatically transfer between battery and line modes.
11. Microprocessor control guarantees high reliability.
12. Remote control function.
13. Protection against: Over load, over temperature, over charging, low battery
Specification:
MODEL | PL16-8KW | PL16-10KW | PL16-12KW |
| Line Mode Specifications: |
| Input Voltage | Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Input voltage range | 185VAC-275VAC |
Input
Frequency | Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) |
| Frequency Range | 40hz-65hz |
Main
Functions | Output Voltage Waveform | As same as Input Waveform |
Over-Load Protection
(SMPS load) | Fuse |
Output Short
Circuit Protection | Fuse |
| Transfer Switch Rating | 63A/80A/100A |
Max Bypass
Overload Current | 100A |
| Battery Invert Mode Specifications: |
| output | Output Voltage Waveform | Sine wave |
| Rated Output Power (KW) | 8kw/10kw/12kw |
| Power Factor | 0.9~1.0 |
| Nominal Output Voltage (V) | 230Vac ±10% rms |
| Nominal Output Frequency | 60Hz ± 0.3Hz |
| 50Hz ± 0.3Hz |
| DC Voltage | Nominal DC Input Voltage | 48V/72V |
| DC Voltage range | 40-62Vdc for 48VDC/ 70-93Vdc for 72VDC |
| Low Battery Alarm | 42.0Vdc ± 1.2Vdc for 48V battery |
| 63.0Vdc ± 1.8Vdc for 72V battery |
| DC input Range | 40.0Vdc-60Vdc for 48V battery |
| 64Vdc -96Vdc for 72V battery |
| Charger | Nominal Charge Current | 35A/50A(5 stages adjustable charging current) |
| Over Charge Protection | Bat. ≥62Vdc / 93Vdc, beeps 0.5s every 1s & fault after 60s |
| Efficiency | Efficiency (Battery Mode) | ≥85% |
| Efficiency (Line Mode) | >98% |
| Transfer Time | Ac to Dc | 20ms (Max) |
| Dc to Ac | 15ms (Max) |
System
parameter | Over-Load Protection | 110% and Fault after 60s off the output,
Load>150%, beeps 0.5s every 1s, and Fault after 20s. |
| Short Circuit Protection | Current limit (Fault after 10s) |
| Surge rating (10s) | 1:3 (VA) |
| Power saver | Load<25W (Enabled on" P/S auto"?setting of Remote control) |
| Protections | Low battery, over charging, over load , over temp. |
| Indicators | LED+LCD Display |
General
Specifications | Temperature Range | 0ºCto 40ºC |
| Storage temperature | -15ºC~60ºC |
| Operation humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
| Dimension(L*W*H) | 538*255*630mm |
| Net weight(Kg) | 8KW | 10KW | 12KW |
| 60kg | 65.5kg | 71kg |
FAQ
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,UL,and so on
Our products could pass different labor testing according to different countries' requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 45-60days.
