Home Automation 433MHz Wireless RF Universal Remote Control Kl1000-4

Prod Model:	KL1000-4
Button:	1/2/4/6/8/12
Frequency:	315MHz, 433MHz, Optional
Current/Ma:	30
Weight/G:	45g
Adjustable Frequency:	250-460MHz
Use:	Garage Doors , Gates Doors, Alarm Systems Et
Encoding Type:	Fixed, Learning Code
Modulation Way:	Ask/Ook
Battery:	23A 12V
Dimension:	85*37*18mm
Application:	LED Products
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Voltage:	12V
Material:	Plastic
Battery Type:	Button Battery
Transmission Distance:	500-1000m

Product Description

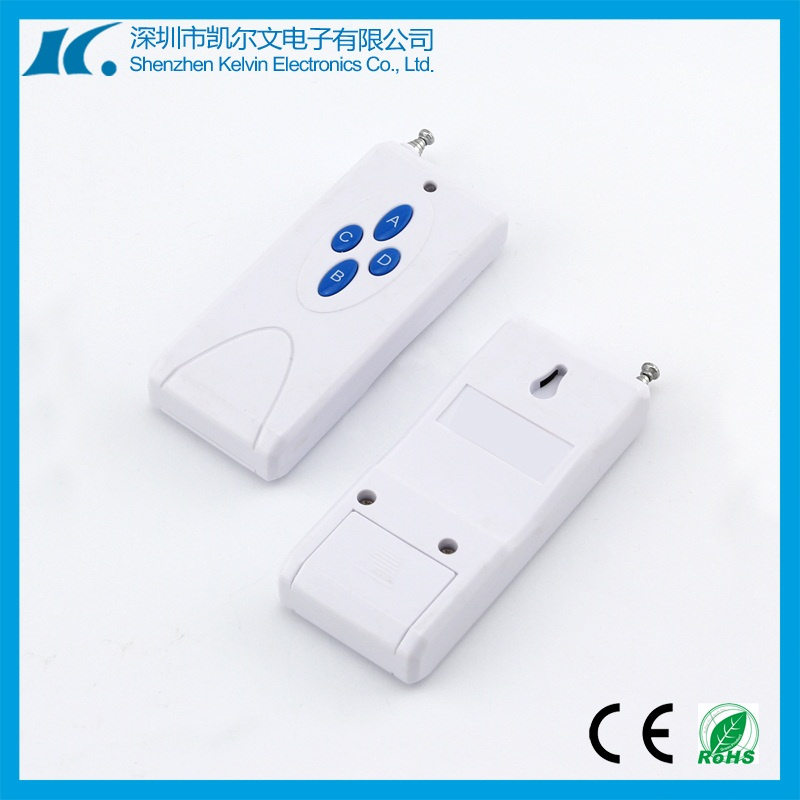

Home automation 433MHz  wireless RF universal remote control KL1000-4

Designed for universal medium range remote control applications. Our radio remote control transmitter is highly configurable with frequency from 250MHz to 450MHz and encoding type from fixed code / learning code to high security rolling code

Technical  Parameters
Model name	KL1000-1/2/4/6B
Buttons Sum	1/2/4/6
Operating Voltage	DC 12V
Operating Current	30mA
Operating Frequency	315MHz / 433.92MHz / Customized
Transmitting Distance	500-1000m
Battery	12V
Modulation way	ASK/OOK
Ambient Temperature	-20ºC ~ +50ºC
Encoding Type	Fixed, Learning code
Encoding chip	SC2262,EV1527
Color	White
Use	Cars, garage doors , gates doors, alarm systems etc
Dimension	95*40*16mm
Weight	45.0g

*Transmitting Distance: Transmitting distance is measured LOS (line of sight) with little radio interference, actual distance may vary greatly depending on the installation and operating environment, receiving sensitivity etc

 ***Certificate: Item meet  CE requirement, for more information please contact us.

Like  more customized product?
The button labels can be customized to your needs, and we can also add your brand logo on the transmitter.

RF Remote Control Transmitter Customizations
  Button Labels: AB/ Customizable
  Color: As shown in photo, some model has multiple colors to choose from
  Brand Label: Brand logo print / etching available for large orders. Contact us for details

RF Remote Control Transmitter Applications
Widely used in automobiles, motorcycles, remote engine starter, vehicle door locks, anti-theft alarm and security system, personal alarm, home security system, home electric control, wireless toys, short-to-medium distance wireless remote control products, garage door and gate openers, wireless roller blinds and shutter control, industry automation, etc.
Feature Highlights
Home / business: burglar alarm, wireless remote control, home appliance control, wireless parking sensor, remote control garage doors, remote control electric roller shutter doors and windows, retractable doors, remote pull gates, sliding door controller, electric curtains, electric door, wireless doorbell, digital conference room, etc.
Industry: remote control garage doors, rolling gates, automatic barrier, retractable door, sliding door controller, industrial control, etc.

RF Remote Control Transmitter Product Availability
Eastern Europe, North America, Mid East / Africa, Central / South America, Asia, Western Europe, Australasia
Due to EU regulations, 433MHz transmitters / receivers is preferred in European countries

Packaging & Shipping
Packaging:KELVIN standard (we also can do customized package)
Shipping:
1) Express: DHL, FedEx, UPS, TNT, EMS, etc.
2) By air
3) By sea
4) By special line,Depends on buyer's requirement.
5).Delivery Details: within 3-5 days depends on order quantity.
.

Please turn off the remote control when it is not in use for extended periods.

4. Shipping

5. FAQ
1) What is your warranty period?
Generally, we provide 1 year warranty for all our products unless otherwise mentioned. (Some are 2 years.)
For DOA (Defective On Arrival) items, which will be replaced or refund, please inform us within 3 days of arrival, please also keep all components and original packaging as further checking maybe required, faulty items must be returned for repair or exchange.

2) If i don't know how to use the products, what can i do?
Pls contact us whenever you need our help, even we are not online.
You can write email to us, or contact us byTrademanager, Skype, and other IM tools.
We are all very glad to answer your questions.

3) What certifications do you have?
Most of our products are approved with CE certification, some are with FCC.
If you have any other requriements with certifications, we also would like to help you.

6. Our Service
1. Accept OEM, ODM &silk-screen printing you logo on the shell.
2. Response in 10 hours.
3. Experienced R&D staff.
4. Professional SMT equipments.
5. Accept payment via T/T, Paypal, Western Union, Escrow, and so on.
6. Delivery by DHL,UPS,EMS or by sea as your requirments.

7. For order
1).Accept OEM.
2).Print logo on the case and pakage
3).Payment Details :30% deposite,70% balance before shipment. Payment accept T/T, Western union, PayPal, optional)
4).Minimum Order:100 pcs (accept trial order)
5).Delivery Details: within 3-5 days depends on order quantity.
