| Prod Model: |
Future Star Series 400-3000Va |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery Charging Time: |
8 Hours to 90% |
| Noise: |
≤35dB |
| Storage Temperature: |
-15oc~45oc |
| Transfer Time: |
≤8ms |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

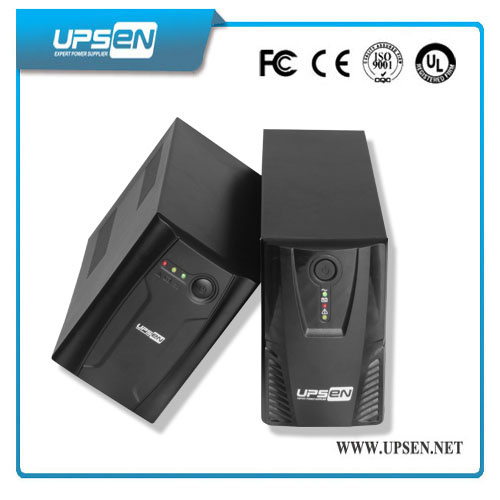

Home Line Interactive UPS with AVR Function
Model: Intelligent Offline AVR UPS Future Star Series 400-3000Va (1ph in/1ph out)
Key Features
1:UPS with AVR Function can offer stable output
2:UPS with LED / LCD Display
3:RJ11/RJ45 is option
4:Reliable online interactive design
5:offline interactive mode design: high-efficiency, high-power charging.
6:Intelligent regulation system on utility power voltage
7:UPS start automatically when the main power recover(optional).
8:Intelligent battery management
9:Adapt to various of power net well ,compatible with generator
10:External battery bank (optional)
Application
UPSEN Future Star Offline AVR UPS mainly used for computer, POS,Computer Peripherals.
Technical Specification
| |
| Model | F400 | F500/650 | F700 | F800 | F1000 | F1200 | F1500 |
| Power factor | 0.6 |
| Load type | Personal computer and other PC peripheral devices |
| Mains voltage range | (140~290) ±5Vac |
| Mains frequency range | (40~70)±1Hz |
| Output voltage range(Line mode) | 220Vac/230Vac±10%(Sine wave) |
| Output frequency range (Line mode) | Synch with mains input |
| Output voltage range (battery mode) | 220Vac/230Vac±5%(Square wave) |
| Output frequency range (battery mode) | (50/60)±1Hz(frequency self-adapt system) |
| Battery No-load protection | Auto protection. The UPS auto shutdown after 2min no load detected |
| Transfer time | ≤8ms |
| Battery backup time* | >6Min(half load) |
| Battery protection |
Auto protection. The UPS auto shutdown
when battery voltage is low or high. |
Battery charging time | 8 hours to 90% |
| Short circuit protection | Auto protection. Output shuts off and the buzzer beeps continuously |
| Overload protection |
110% load percentage >120%, output shuts off,
buzzer beeps continuously. |
Operating temperature | 0ºC~40ºC |
| Storage temperature | -15ºC~45ºC |
| Relative humidity | 0%~90%(No condensation water) |
| Noise | ≤35dB(1m from front panel) |
| Communication interface | Intelligent RS-232/USB(Optional) |
| Network protection | RJ45/11 surge protector (Optional) |
| Size/L×W×H(mm) | 230*90*145 | 291*90*145 | 330*90*145 | 340x122x190 |
| Net weight | 4 | 4.5 | 5 | 5.2 | 8.4 | 9.4 | 10 |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
