| Prod Model: |
IG3110C 500-2000VA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Voltage: |
220/230/240VAC |
| Nominal Frequency: |
50/60Hz |
| Voltage Range: |
176VAC-280VAC(±3VAC) |
| Frequency Range: |
50/60Hz |
| Voltage Regulation: |
220/230/240VAC±2% |
| Frequency Regulation: |
50/60Hz 0.1Hz |
| Wave Form: |
Modified Sine Wave |
| Temperature: |
0oc~40oc |
| Storage Temperature: |
-25oc~55oc |
| Elevation: |
<1500 M |
Product Description

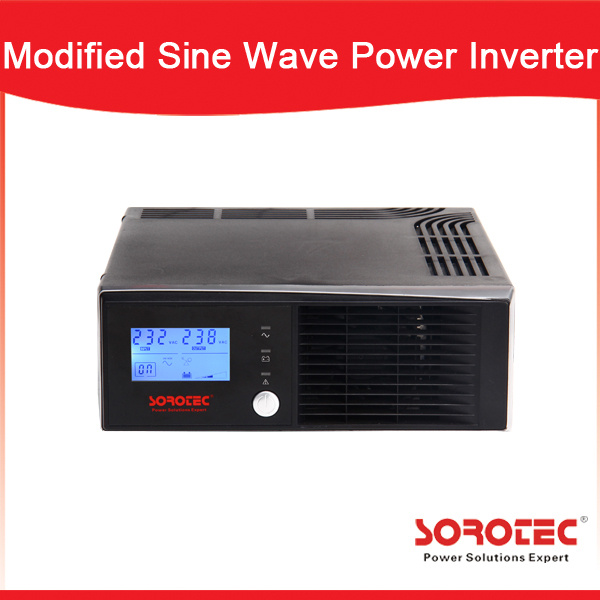

Home Onduleur Inverter UPS with Singl Phase and Modified Sinewave Inverter for Office and Computer
Key Features:
1. User selectable for accepting wider input voltage
2. Full automatic and silent operation
3. Rack Tower design
4. High Frequency
5. Off mode charging
6. Compact size for convenient use and storage
7. Built-in 8AMP super charger for up to 100Ah battery
8. Small scale and cost effective inverter for home appliances and office
equipment
9. Two - steps intelligent charging control to recharging time
Product Features:
1. Perfect protection functions : short-circuit/over-loading; high temperature , reverse connection input battery, high-voltage/under-voltage and low-voltage protection.
2. Protection of wrong polarity connection to avoid the damages by incorrect operation
3. International common voltage standard.
4. With excellent components, some of the key components from Japan which is outstanding the world, high quality guarantee.
5. Featured with high reliability and low failure rate.
6.Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.
7. intelligent 3 -stage charger control for efficient charging and preventing overcharge
Advantages:
1.Competitive EXW Price
2.High conversion efficiency, high-transmission rate
3.Energy saving, environmental-friendly
4.Advanced technology, strict quality control system.
5.Easy installation, safe operation, free maintenance
6.Low MOQ, fast delivery time, long service life
7. 100% test
Technical Parameters
| Model | IG3110C 500-2000VA |
| 500-12 | 1000-12 | 1200-12 | 2000-24 | 1000-24 |
| Capacity | 500VA/300W | 1000VA/600W | 1200VA/720W | 2000VA/1200W | 1000VA/600W |
| Nominal Voltage | 220/230/240VAC |
| Nominal Frequency | 50/60Hz |
| Input |
| Voltage Range | 176VAC-280VAC(±3VAC) |
| Frequency Range | 50/60Hz |
| Output |
| Voltage Regulation | 220/230/240VAC±2% |
| Frequency Regulation | 50/60Hz 0.1Hz |
| Wave Form | Modified sine wave |
| Transfer Time | Standard 2~4ms Typical 6ms |
| Current |
| DC Voltage | 12V | 12V | 12V | 24V | 24V |
| Overcharge Protection | 15V | 15V | 15V | 30V | 30V |
| LCD Display & LED Indicate |
| AC Mode | Green lighting |
| Battery Mode | Yellow lighting |
| Battery Charging Mode | Green flashing every 2 second |
| Overload | Red flashing every 0.5 second |
| Fault | Red lighting |
| Operating Environment |
| Temperature | 0 ° C ~40 ° C |
| Humidity | 5%~95%(<40 ° C ,Non-condensing) |
| Storage Temperature | -25 ° C ~55 ° C |
| Elevation | <1500 m |
| Noise(within 1 meter) | <45dB |
| Physics Characteristic |
Weight
(KG) | N.W | 2.0 | 2.5 | 2.5 | 2.5 | 2.0 |
| G.W | 2.2 | 2.7 | 2.7 | 2.7 | 2.2 |
| Dimensions :( Wx D x H )mm | 224×225×80
|
APPLICATION OF OUR PRODUCT
|
1. Living house and home building
2. Office building, factory and warehouse
3. Shopping mall, stadium and so on
4. Power station, field operation and some huge engineer construction
5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip
Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
1, QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2, Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
1. How to choose suitable inverter?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.
Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power
.......................................................................................................................................................................
2. How do I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the
size of the power inverter.
Notice:
Resistive load: you can choose the same power as the load.
Capacitive loads: according to the load, you can choose 2-5 times power.
Inductive loads: according to the load, you can choose 4-7 times power.
.......................................................................................................................................................................
3. How connection between batteries and an power inverter?
We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions
.......................................................................................................................................................................
4. How to calculate the load of working hours requires configuration of the battery size?
We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
.......................................................................................................................................................................
