Home Security Product UL Magnetic Contact Switch Br-1011

Name: Home Security Product UL Magnetic Contact Switch Br-1011
Brand: all-electronics-online.com
SKU: 686099942
Availability: InStock
Rating: 4.9 (67 reviews)

Price:	US $ 0.68-0.85/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BR-1011, BR-1011DM, BR-1011DMWG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

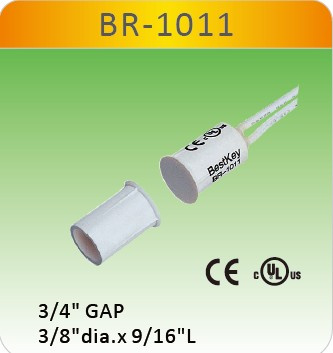

BR-1011

* 3/8" diameter Super miniature Stubby switch
* press to fit
* Standard 18"#24AWG Leads
* Swith or Magnet are available seperately
* long leads on request
* Colors: White, Brown, Grey

Part Number	Loop Type	Reed Form	Closed Gap[Inch(mm)]	Departure Gap[Inch(mm)]	Maximum Initial Contact Resistance(Ohm)	Maximum Contact Rating(W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current(A)
BR-1011	Closed	N/O	3/4(19)	0.8(20)	0.200	10	100	0.5
BR1011DM	Closed	N/O	5/8(16)	0.72(18)	0.200	10	100	0.5
BR1011DMWG	Closed	N/O	1(25)	1.06(27)	0.200	10	100	0.5

Ningbo Sentek Electronics Co., Ltd., is a professional manufacturer in fire and security products, such as smoke detector, gas detector, magnetic contacts and so on.

Most of magnetic contacts are UL list, UL, EN approval for smoke detector and heat detector.

We are still like to be your OEM/ODM manufacturer in fire and security products, including reed sensors.

Warmly welcome customers for all over the world to talk and do business with us.
