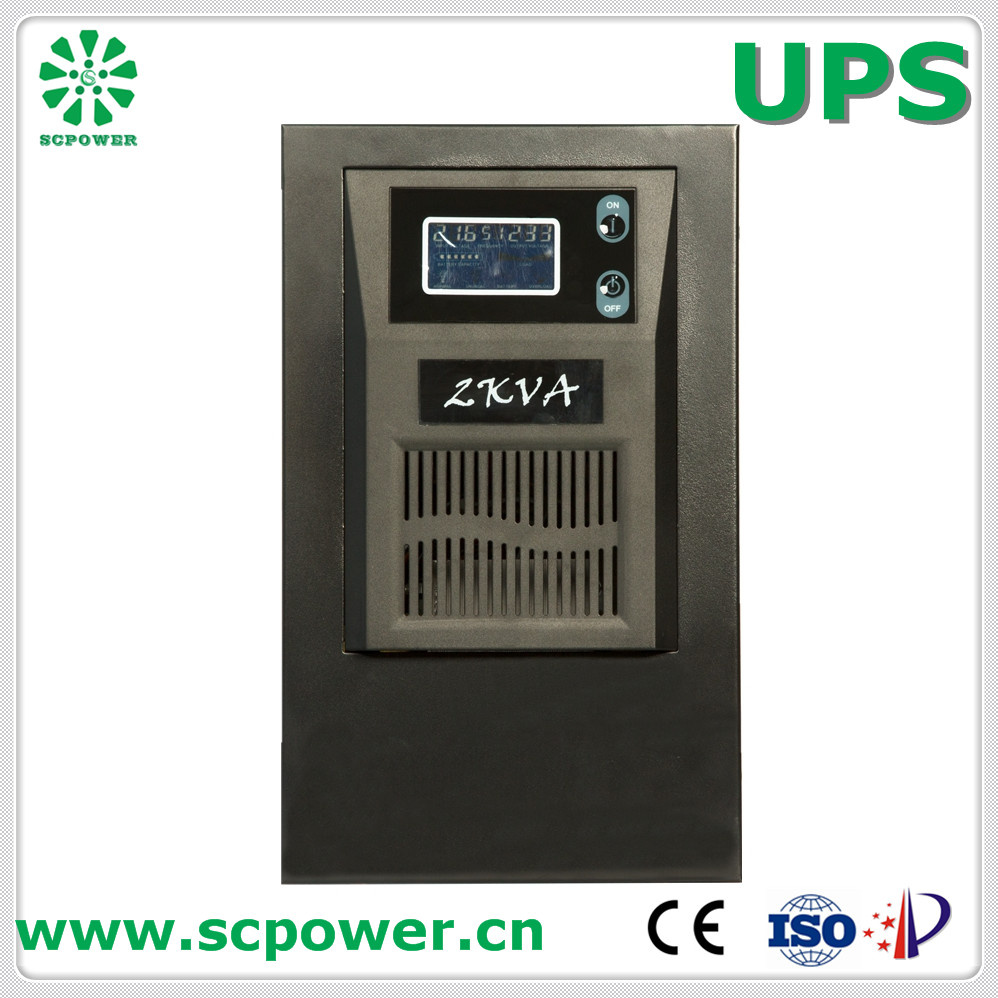

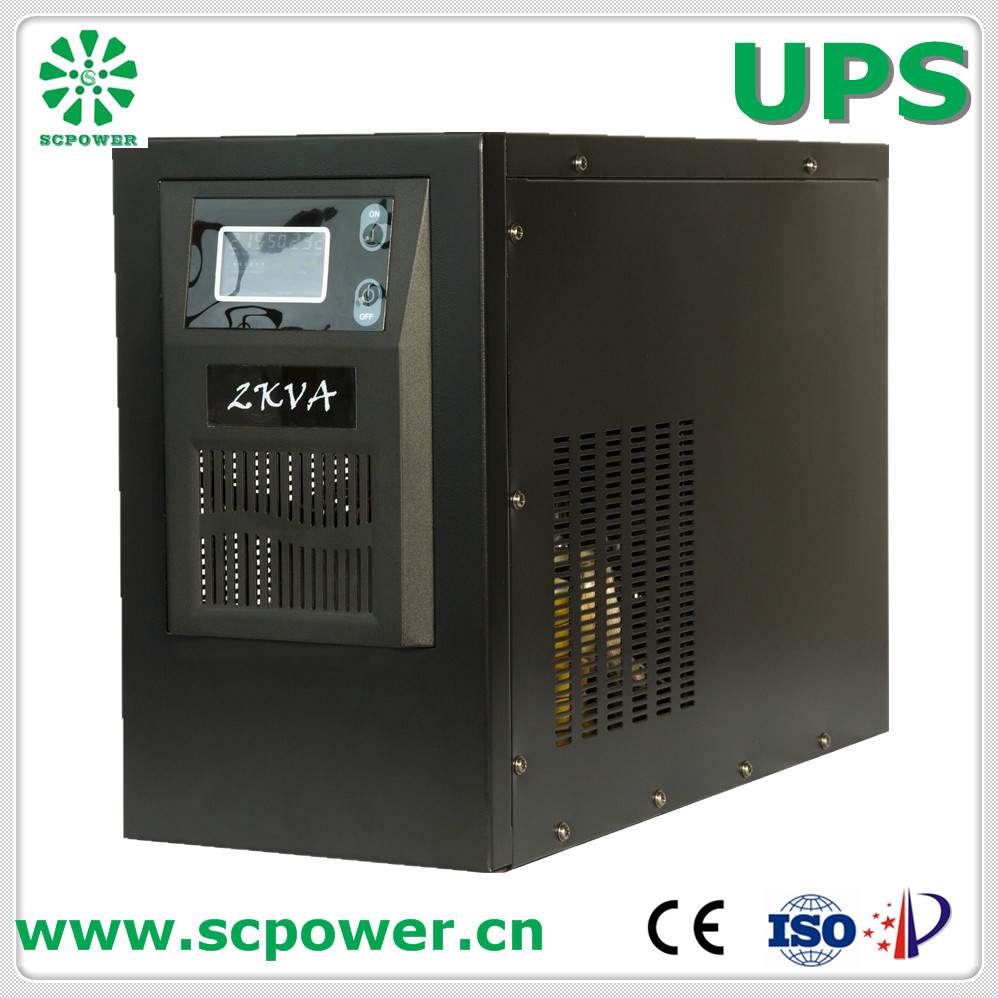

| Prod Model: |
ENVIE 2KVA |
| Color: |
Black |
| Input Voltage: |
165 ~ 275 VAC |
| Output Voltage: |
220V ± 2% (Battery Mode) |
| Frequency: |
45 ~ 65 Hz |
| Certification: |
Ce, ISO, Patent |
| Design: |
OEM & ODM |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Overvoltage |
| Brand: |
Sc Power |
Product Description
The Feature of our product.Excellent microprocessor control guarantees superior quality and reliability
.High efficiency C.R.G.O. technology with output isolation transformer
.100% unbalance load design with lower energy loss
.Built-in super smart charger with battery capacity real-time auto-detection & auto-adapt
.Auto-adjustable 1~20A charging current
.DC cold start function
.ECO mode operation for energy saving
.Communication port on RS232 / RS485, SNMP adapter (optional)
.Adaptable with harsh environment of electric power, and compatible with generator mod
The Feature of our product.Excellent microprocessor control guarantees superior quality and reliability
.High efficiency C.R.G.O. technology with output isolation transformer
.100% unbalance load design with lower energy loss
.Built-in super smart charger with battery capacity real-time auto-detection & auto-adapt
.Auto-adjustable 1~20A charging current
.DC cold start function
.ECO mode operation for energy saving
.Communication port on RS232 / RS485, SNMP adapter (optional)
.Adaptable with harsh environment of electric power, and compatible with generator mode
The parameter of the product| MODEL | | ENVIE 1K(L) | ENVIE 1.5K(L) | ENVIE 2K(L) | ENVIE 3K(L) | ENVIE 5K(L) | ENVIE 6K(L) | ENVIE 8K(L) | ENVIE 10K(L) |
| Phase | Single Phase with ground |
| VA Rating | 1KVA/800W | 1.5KVA/1.2KW | 2KVA/1.6KW | 3KVA/2.4KW | 5KVA/4KW | 6KVA/4.8KW | 8KVA/6.4KW | 10KVA/8KW |
| Display | LCD |
| Casing Material | Metal |
| INPUT | | | | | | | | | |
| Phase | Single Phase |
| Connection | L, N + G wire |
| Voltage | 165 ~ 275 Vac |
| Current THD | < 3% |
| Frequency | 45Hz ~ 65Hz |
| OUTPUT | | | | | | | | | |
| Voltage | 220V ± 2% (Battery Mode) |
| Frequency | 50/60Hz ± 0.5% |
| Efficiency | > 99% in mains mode; > 80% in inverter mode |
| Transfer Time | ≤ 4ms |
| Power Factor | 0.8 |
| Current THD | < 3% (Battery Mode) |
| Instant Reaction | When loading changes between 0 and 100%, voltage change < 3% |
| Overload capability | 110%, close the device in 30 seconds |
| 120%, close the device in 2 seconds |
| Overload at city mains, buzzer alarms |
| Waveform | Pure Sinewave |
| BATTERY | | | | | | | | | |
| Standard Model | Battery Type | Lead-Acid Maintenance-Free Battery |
| Voltage | 24Vdc (2x12Vdc) | 48Vdc (4x12Vdc) | 96Vdc (8x12Vdc) | 192Vdc(16x12Vdc) |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current | Default: 1.0A ± 10%; Max: 2.0A ± 10% |
| Charging Voltage | 27.4Vdc ± 1% | 54.8Vdc ± 1% | 109.6Vdc ± 1% | 219.2Vdc ± 1% |
| Over Charge Ability | 10 minutes at 100% ~ 125% loading; ≥ 1 minute at 125% ~ 150% loading |
| Long-run Model | Battery Type | Depending on application |
| Charging Current | 15A ~ 45A (Can adjust with software and LCD control button) |
| Backup Time | Depends on Capacity and Volume of External Batteries |
| Charging Voltage | 27.4Vdc ± 1% | 54.8Vdc ± 1% | 109.6Vdc ± 1% | 219.2Vdc ± 1% |
| PROTECTION | | | | | | | | | |
| Over Load Protection | Yes |
| Short Circuit Protection | Alarms on 20 seconds and then UPS is off |
| Input High/Low Voltage Protection | Yes |
| Battery High/Low Voltage Protection | Yes |
| Battery Anti-polarity Protection | Yes |
| High Temperature Protection | Yes |
| ALARM | | | | | | | | | |
| Mains failure | Buzzer sounds in every 30 seconds |
| Battery low voltage (after 2nd alarm) | Buzzer sounds in every second |
| UPS failure | Buzzer sounds continously |
| Overload | Buzzer sounds in every second |
| PHYSICAL | | | | | | | | | |
| Standard Model | Dimension (W*D*H) | 390*145*205mm | 400*150*210mm | 400*180*320mm | 502*240*500mm | 504*245*500mm |
| Net Weight | 24kg | 26kg | 30kg | 32kg | 44kg | 46kg | 64kg | 67kg |
| Long-run Model | Dimension (W*D*H) | 390*145*205mm | 400*150*210mm | 502*240*500mm | 504*245*500mm |
| Net Weight | 20kg | 21.5 | 22kg | 24kg | 28kg | 30kg | 32kg | 35kg |
| ENVIRONMENTAL | | | | | | | | | |
| Noise | | < 38 db (1 Meter) |
| Temperature | | 0 ~ 40ºC |
| Humidity | | 10% ~ 90% (non-condensing) |
| MANAGEMENT | | | | | | | | | |
| Smart RS-232/USB | | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC |
| Optional SNMP | | Power management from SNMP manager and web browser |
The culture of the company Founded in 2009, Foshan SC Power Technology Ltd. is a National Key Support High-Tech Enterprise which integrated with R&D, production and marketing of Solar Inverter, Solar MPPT Controller, Hybrid Inverter (inverter with controller) and related solar power system products.
SCP has a group of excellent R&D engineers, which masters core technology of the PV System. We have advanced inspection equipments and perfect quality management system. Our QCs inspect every product strictly according to the procedures. Besides, SCP obtains many technology patents and certificates such as CE, ISO9001 and Environmental Management System etc..Our leading brand (SCPOW) products have been sold in more than 100 countries and regions from Europe, America, Asia, Africa and Oceania."Superiority Captures Potency", that's what SCP is all about. We pursue the brand marketing strategy and focus on customers' satisfaction, providing superior quality products and best service for our customers. Our goal is to become one of the most valuable enterprises.
Welcome friends from China and abroad to create a brilliant future with us!
FAQQ1. Can I have a sample order ?A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit ?A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty?A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
