| Prod Model: |
BV |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PE |
| Certification: |
RoHS |
| Brand: |
Gemt |
Product Description

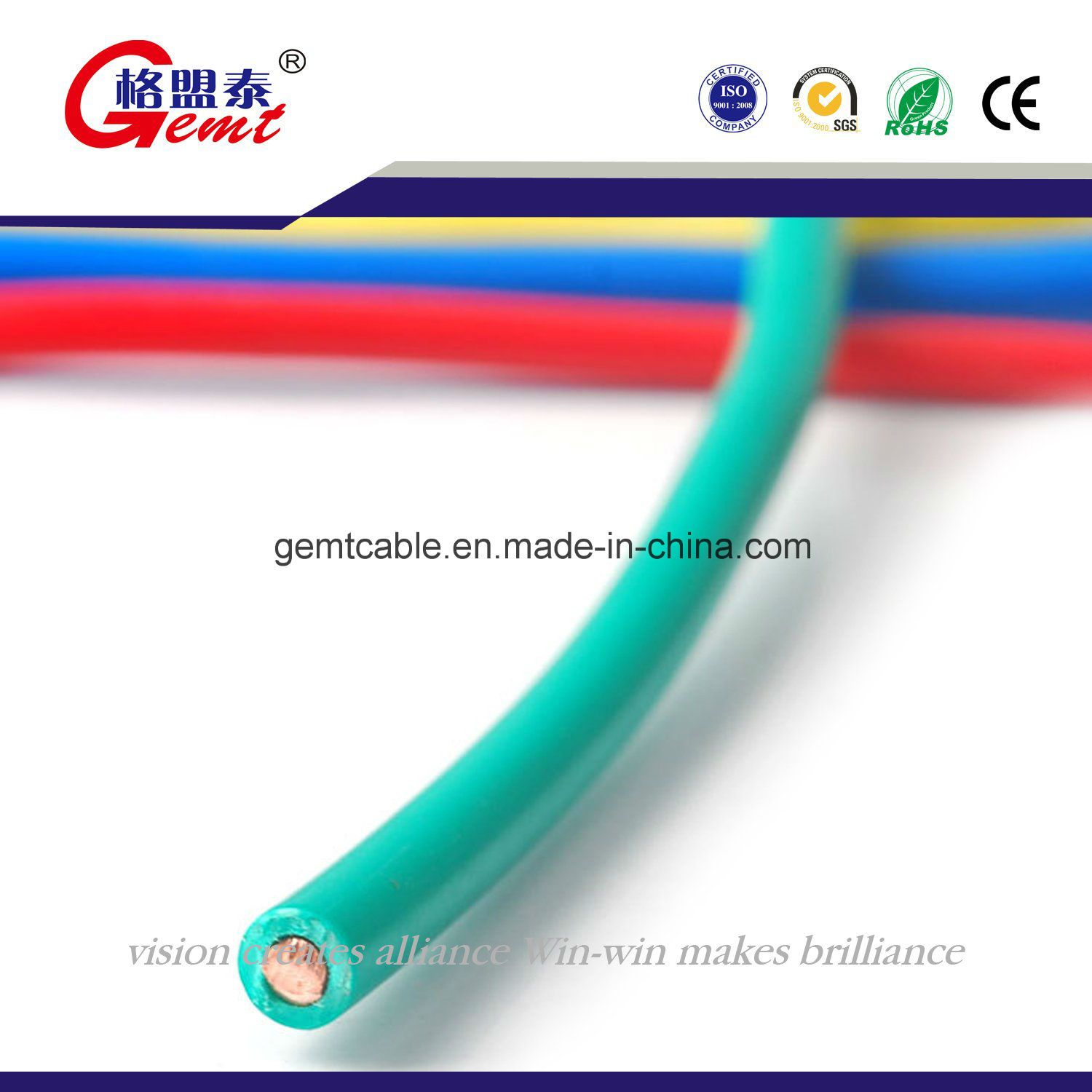

Single Core Solid Copper Conductor Insulated Electrical Cable
Building Wire BV cable
Product Description
APPLICATIONS
Installation in surface mounted or embedded conduits, or similar closed systems.
Suitable for use in channels with cover.
Suitable for fixed protected installation in or on lighting fittings and inside appliances, switchgear and controlgear, for voltage up to 1000V a.C.Or up to 750V to earth, d.C.
CONSTRUCTION
Conductor :Class 5 annealed flexible stranded copper
Insulation :PVC Type TI1
CHARACTERISTICS
Permissible operating temperature at conductor :70
Insulation adheres tightly to conductor yet strips easily, leaves conductor clean.
PVC insulation has good electrical properties.
Standard
STANDARDS
BS 6004
SPECIFICATIONS
| Conductor | RadialThick.Of Insulation | Mean Overall Dia. | Approx.Weight | Standard Length | Max.Resistance of Conductor | Min.Insulation Resistance | Test Voltage |
| Nominal Cross Sectional Area | No.& Nominal Dia.Of Wire | Lower Limit | Upper Limit | Plain Wires | Metal Coated Wires |
| Mm² | Mm | Mm | Mm | Mm | Kg/km | M | Ω/km, 20 | Ω/km, 20 | MΩ·km, 70 | KV/15min. |
| 1.5 | 30/0.25 | 0.7 | 2.8 | 3.4 | 20.3 | C | 300 | 13.3 | 13.7 | 0.010 | 2.5 |
| 2.5 | 50/0.25 | 0.8 | 3.4 | 4.1 | 31.9 | C | 300 | 7.98 | 8.21 | 0.009 | 2.5 |
| 4 | 56/0.30 | 0.8 | 3.9 | 4.8 | 47.5 | C | 300 | 4.95 | 5.09 | 0.007 | 2.5 |
| 6 | 84/0.30 | 0.8 | 4.4 | 5.3 | 67.7 | C | 300 | 3.30 | 3.39 | 0.006 | 2.5 |
| 10 | 80/0.40 | 1.0 | 5.7 | 6.8 | 113.0 | C | 300 | 1.91 | 1.95 | 0.0056 | 2.5 |
| 16 | 126/0.40 | 1.0 | 6.7 | 8.1 | 170.0 | C | 300 | 1.21 | 1.24 | 0.0046 | 2.5 |
| 25 | 196/0.40 | 1.2 | 8.4 | 10.2 | 265.0 | C | 300 | 0.780 | 0.795 | 0.0044 | 2.5 |
| 35 | 276/0.40 | 1.2 | 9.7 | 11.7 | 363.0 | C | 300 | 0.554 | 0.565 | 0.0038 | 2.5 |
| 50 | 396/0.40 | 1.4 | 11.5 | 13.9 | 519.0 | D | 1000 | 0.386 | 0.393 | 0.0037 | 2.5 |
| 70 | 360/0.50 | 1.4 | 13.2 | 16.0 | 720.0 | D | 1000 | 0.272 | 0.277 | 0.0032 | 2.5 |
| 95 | 475/0.50 | 1.6 | 15.1 | 18.2 | 951.0 | D | 1000 | 0.206 | 0.210 | 0.0032 | 2.5 |
| 120 | 608/0.50 | 1.6 | 16.7 | 20.2 | 1200.0 | D | 500 | 0.161 | 0.164 | 0.0029 | 2.5 |
| 150 | 756/0.50 | 1.8 | 18.6 | 22.5 | 1490.0 | D | 500 | 0.129 | 0.132 | 0.0029 | 2.5 |
| 185 | 925/0.50 | 2.0 | 20.6 | 24.9 | 1830.0 | D | 500 | 0.106 | 0.108 | 0.0029 | 2.5 |
| 240 | 1221/0.50 | 2.2 | 23.5 | 28.4 | 2400.0 | D | 500 | 0.0801 | 0.0817 | 0.0028 | 2.5 |
Why Choose Us(GEMT):
G--Guaranteed quality
E--Effective service
M--Mutual benefit
T--Top technique
GEMT Cable, Friend Reliable

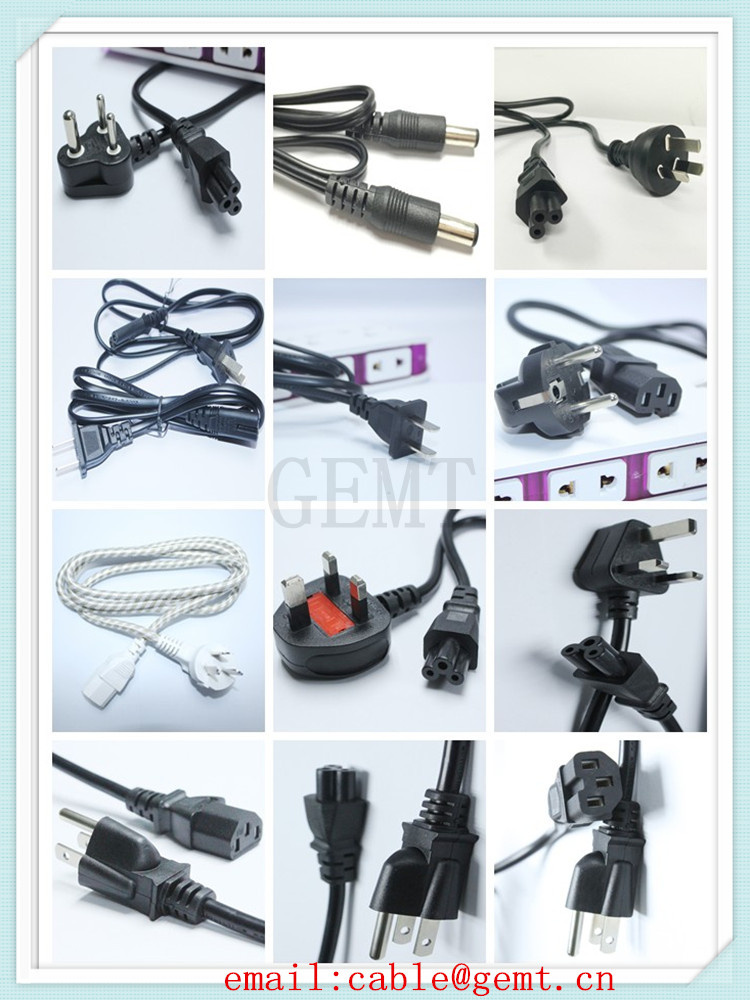

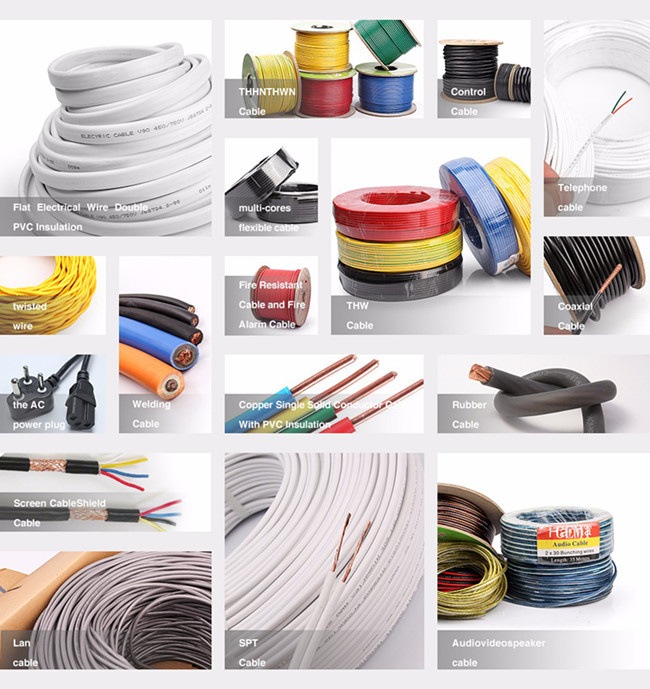

Related Products
