| Prod Model: |
EP1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Charge Current: |
10A/20A Adjutable |
| PCB Board: |
Double Layers |
| Narrow Input Voltage Range: |
170-280VAC |
| Wide Input Voltage Range: |
90-280VAC |
| Wave: |
Modified Sine Wave |
| DC Battery: |
12V or 24V |
| Frequency: |
High Frequency |
| Charge Function: |
Three Steps Intelligent Charging Control |
| Display: |
LCD Display |
| Name: |
Modifed Sine Wave Inverter |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Electric Power |
| Output Power: |
501 - 1000W |
| Brand: |
Must/OEM |
Product Description

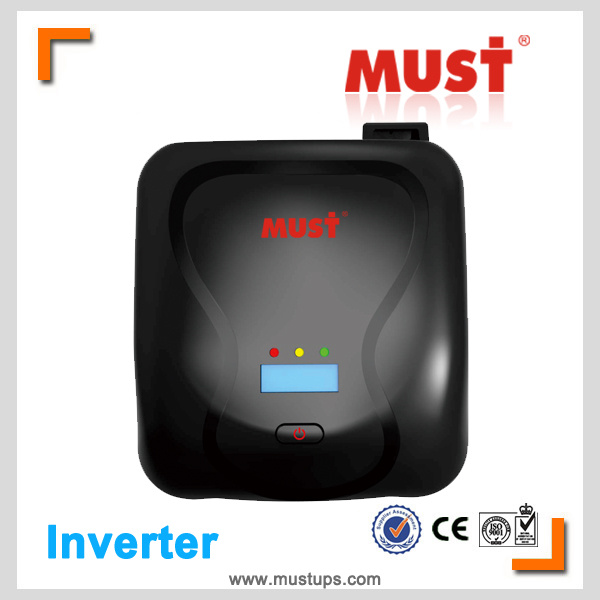

home use high frequency Modifed Sine Wave Inverter
Application:
PG modified sine wave inverter is a combination of an inverter and a charge. It offers a smart, convenient and economic way to get AC power supply from DC source for most electrical equipment. When the AC input is available, it will switch to AC power supply and starts charging on the batteries.
The PG series converts DC power into AC power. With a continuous output and compact design, the units is ideal for running TVs, Stereos, Laptop and computers and other home appliances. PG series will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.
Home Power Inverter Features: Wide Input range 90-280VAC
Home Power Main Feature:
1. Automatic line-to-battery switchover
2. Selectable input voltage ranges, power inverter has wide input range: 90-280Vac
Narrow input range: 170-280Vac
3. Small power inverter has high efficient DC-to-AC conversion, minimizing energy loss
4. Rack Tower design for flexible placement
5. Small power inverter built-in enhanced charger 8Amps for up to 100Ah battery
6. Intelligent 2-stage charger control for efficient charging and preventing overcharge
7. Overload protection
8. Auto restart while AC recovery
9. Multi-function LED indications and buzzer alarms
10. Small scale and cost effective inverter for home appliance and office equipment
11. LED indicator of power inverter for the battery mode, AC mode, battery charging mode, overload mode and fault warning
12. Over 95% efficiency in AC to AC mode
13. Audible alarm for the low battery, overload, overcharge and fault
14. Full protection of power inverter against deep discharge, overcharge, overload protection, short circuit, overvoltage and under voltage (compact power inverter)
| EP1000 Series Inverter 10A/20A charge current Specification |
| MODEL | P1000C | P2000C |
| CAPACITY | 1000VA | 2000VA |
| AC INPUT |
| Voltage | 220/230/240VAC |
| Input Voltage Range | 90-280VAC |
| Frequency | 50-60Hz(Auto Detection) |
| Input Voltage Range Selector |
| Narrow | 170-280VAC |
| Wide | 90-280VAC |
| Inverter Mode Output |
| Voltage | 230VAC + 10% / -18% |
| Frequency | 50/60Hz ± 0.5Hz |
| Waveform | Modified Sine Wave |
| Efficiency (AC to AC) | >95% |
| Efficiency (DC to AC) | >80% |
| Battery |
| Voltage | 12V DC | 24V DC |
| Charger |
| Charging Voltage (V bat< 12.5V) | 14.4 ± 0.4V |
| Charging Voltage (V bat< 12.5V) | 13.7 ± 0.2V |
| Charging Current 10A ± 2A | 10A ± 2A |
| Charging Current 20A ± 2A | 20A ± 2A |
| Overcharging Protection | 16V ± 0.4V |
| Transfer |
| Transfer Time | Typical 12-20ms, 40ms max |
| Indicator |
| Line Mode | Green LED blinks or lights steadily |
| Battery Mode | Yellow LED lights |
| Overload / Fault | Red LED blinks or lights steadily |
| Audible Alarm |
| Low Battery Voltage in Battery Mode | Beeps every 2 seconds |
| Overload | Beeps every 0.5 seconds |
| Fault | Beeps continuously |
| Environment |
| Temperature | 0~40°C |
| Physical |
| Body Size (mm) | 246X253X87 |
| Net Weight (kg) | 2.3 |
| Gross Weight (kg) | 2.8 |
| Carton Size (mm) | 400*347*596 (6pcs/carton) |
| Protections | Deep Discharge, Overcharge, Short Circuit, Overload, Battery Short, Over Voltage, Under Voltage. |
