| Prod Model: |
SBW-F |
| Line Voltage: |
380V 20% 304~456V |
| Line Voltages: |
380V 2~5% Adjustable |
| Input Voltage: |
Phase Voltage: 220V 20% 176~264V |
| Output Voltage: |
Phase Voltage: 220V 2~5% Adjustable |
| Export Market: |
World |
| Quality: |
AAA |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
DBW |
| Frequency: |
50/60Hz |
| Brand: |
Chana |
Product Description
Product Description

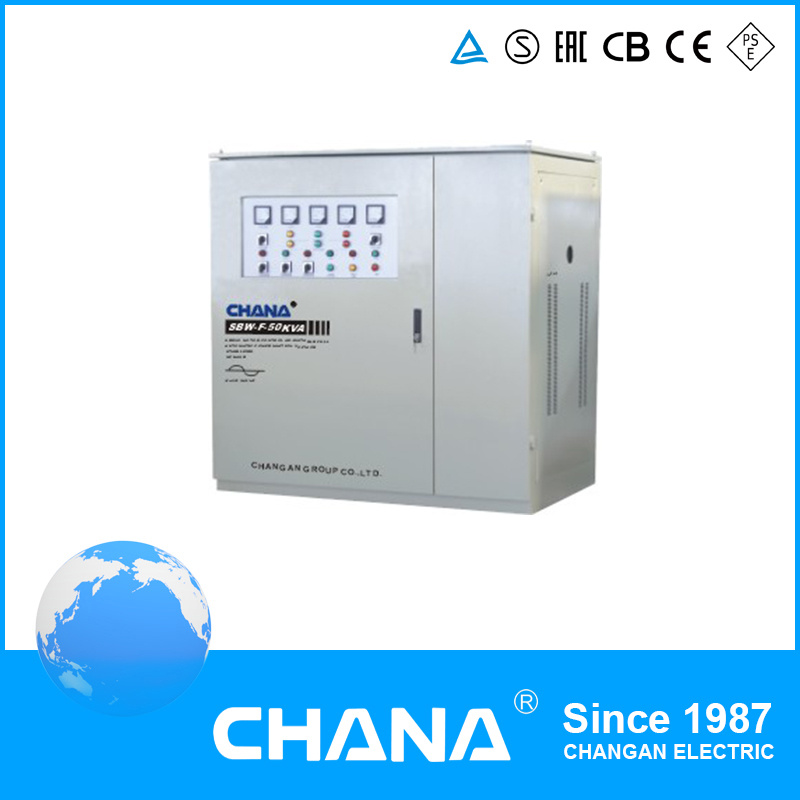

Feature of Homemade Power three phase ac adjustable voltage regulator
The three-phase Adjustable Compensation Voltage Stabilizer is composed of
three sets of single-phase volt age stabilizer by "star-shaped" connection. With
the function of thee phases independently voltage-stabilizing, it applies to the
unbalanced input voltage of three phases or unbalanced t hree phase loads. Moreover,
it has the functions such as voltage regulating stability, high voltage stabilizing
precision, and auto-balance of three phases. The regulating voltage parts of this
series voltage stabilizer is adopted the pillar. Therefore, it has more power and
more reliability.
Main Technical Data of Homemade Power three phase ac adjustable voltage regulator
Phase no.: Three-phase four wire system
Input voltage: Phase voltage: 220V 20% 176~264V
Line voltage: 380V 20% 304~456V
Output voltage: Phase voltage: 220V 2~5% adjustable
Line voltage: 380V 2~5% adjustable
Frequency: 50Hz/60Hz
Efficiency: 95%
Response time: 1.5S (against 10% input voltage deviation)
Ambient temperature: -10 ~+40
Insulation resistance: 2M
Waveform distortion: Non additional waveform distortion
Protection functions: Over-voltage,over-current, phase shortage, phase-sequence
and mechanical failure.
Over-load capacity: 1min. at the rated current of 2 times.
Electricity-resistance strength: Power frequency sinusoidal is 2000VAC without
Application of Homemade Power three phase ac adjustable voltage regulator
It is widely used in the place with large electricity demands such as factories,
post&Communication, schools, hotel etc. Acted as whole voltage-stabilizing or
single voltage -stabilizing.
Note: If input voltage AC50V - 130V, or 160V - 250V with 110/220V input voltage selector switch required by ccustomers, please specify when ordering.
Special Specification can be made according to orders.
| Model | Nos&kinds of pkg. | Package Size |
| SBW-30KV | 1 Unit/Case | 62*80*160 |
| SBW-50KV | 1 Unit/Case | 76*100*180 |
| SBW-60KV | 1 Unit/Case | 76*100*180 |
| SBW-75KV | 1 Unit/Case | 76*100*180 |
| SBW-100KV | 1 Unit/Case | 76*100*180 |
| SBW-120KV | 1 Unit/Case | 100*95*200 |
| SBW-150KV | 1 Unit/Case | 100*95*200 |
| SBW-180KV | 1 Unit/Case | 100*95*200 |
| SBW-200KV | 1 Unit/Case | 115*95*210 |
| SBW-225KV | 1 Unit/Case | 115*95*210 |
| SBW-250KV | 1 Unit/Case | 115*95*210 |
