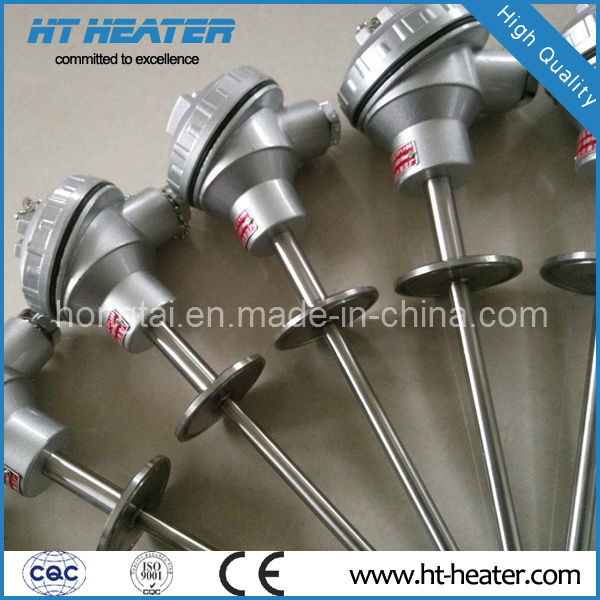

Hongtai Temperature Measurement Platinum Resistance Rtd Sensor PT100

Name: Hongtai Temperature Measurement Platinum Resistance Rtd Sensor PT100
Brand: all-electronics-online.com
SKU: 731584535
Availability: InStock
Rating: 4.8 (148 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RTD Sensor Pt100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thermocouple:	Rtd Sensor PT100
Head:	2 Pin 3 Pin
Flange Or Screw:	Customized
MOQ:	1 PC
K Type Thermocouple:	Max 1200 C
Lead Wire:	Braid, Glass Fiber, PVC, Teflon, Silicone
Plug:	Mini and Standard
Measuring Junction:	Ungrounded, Grounded, Exposed
S Type Thermocouple:	Max 1600 C
Certification:	RoHS
Material:	Metal

Product Description

RTD Sensor Pt100

Introduction:
RTD temperature sensor contains a resistor that changes resistance value as its temperature changes. They have been used for measuring temperature in laboratory and industrial proess. It has a good reputation for accuracy, repeatability and stability.
Our temperature sensors are machined according to customer's requirement. If you have special requirements, our technicians can cooperate with you.

Advantages
1. High accuracy
2. Low drift
3. Wide operating range
4. Suitable for precision applications
Applications
1. Widely used in science and glass industry
2. Temperature measurement for kilns
3. Gas turbine exhaust application
4. Used for diesel engines and other industrial process
5. Other applications for measuring temperature
When inquiry, please inform us the following specification.
1. Graduation of the temperature sensor
2. Measuring temperature range
3. Specification of the temperature sensor
4. Drawing of the temperature sensors if possible
5. Special requirement if you have.

type	Graduation	Measuring Range	Nominal pressure	Flow speed	Remarks
WRN-01T WRN 2-01T	K	0-800	30Mpa	100m/s
WRE-01T WRE 2-01T	E	0-600
WZP-01T WZP 2-01T	Pt100	-200-500
WRN-624 WRN 2-624	K	0-800	30Mpa	80m/s	insulation type
WRE-624 WRE 2-624	E	0-600
WZP-624 WZP 2-624	Pt100	-200-500
WRN-625 WRN 2-625	K	0-800			shell-connecting type

Product name	RTD Temperature Sensor
Graduation	K/E/Pt100
Measuring temperature range	-200-500C, 0-600C, 0-800C
Probe size	3mm-10mm
Dimension	Customized
Tube material	SUS304/SUS316 etc
Insulation material	Fiberglass/PVC/Teflon/Silicone Rubber etc
