Honle SVC Series Stabilizer Voltage

Name: Honle SVC Series Stabilizer Voltage
Brand: all-electronics-online.com
SKU: 747132515
Availability: InStock
Rating: 5 (142 reviews)

Price:	US $ 17/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Industrial Frequency
Frequency Characteristics:	50/60Hz
Brand:	Honle

Product Description

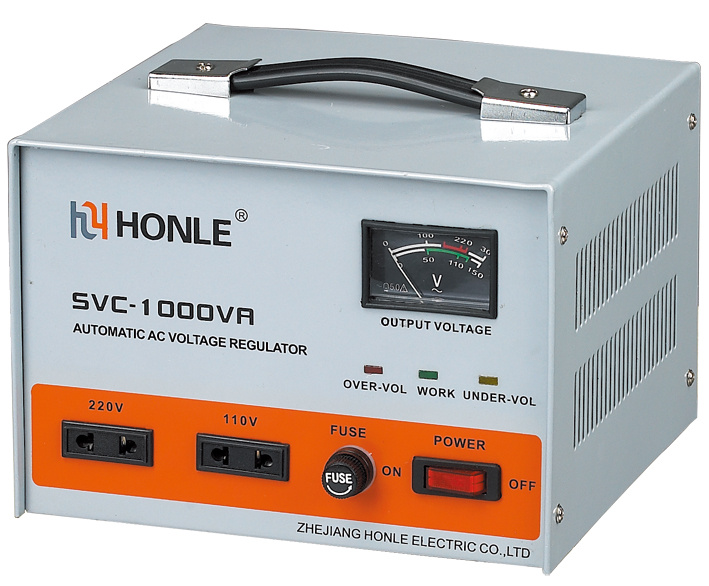

HONLE SVC Single-phase high accuracy full automatic AC voltage stabilizers

Feature
SVC Single-phase high accuracy full automatic AC voltage stabilizers is made of regulator, servo motor, automatic control circuit and so in, When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the postion of the carbon brush of the regulator so as to have the output voltage regulated to the rating and to obtain the steady state. This machine has advantages of small volume, light weigh, undistorted waveform, high efficiency, reliabli performance, and time-delay, over-voltage, etc, the series of stabilizers driven, of general type, the indeel boltage stabilized sources which can be widely applied to any occasions requring power to assure the normal operation of yourpower driven equipment.
Application
Computers, test equipment, lighting systems, safety alarm systems, X-ray systems, communication systems, medical equipment, duplicators, stereo sound equipment, color film developing equipment.

Input voltage	160~250V
Output voltage	220V+/-3% 110V+/-4%
Phase	single phase
Frequency	50-60HZ
Adjusting time	<1S(When input voltage has a change of 10%)
Max of	0.5 1 1.5 2 3 5 10 15 20 30KVA
Output current	2A 4A 6.5A 8A 12A 20A 28A 40A 60A 80A 120A
Delay	Short Deley3~7 Sec long delay 3~7min
Temperature rise	<60 C(full load)
Ambient temperature	-5~+40 C
Relative humidity	<90 C
Wave form distortion	No wave form distortion
Efficiency	>95%
Insulation resistance	≥2MΩ
