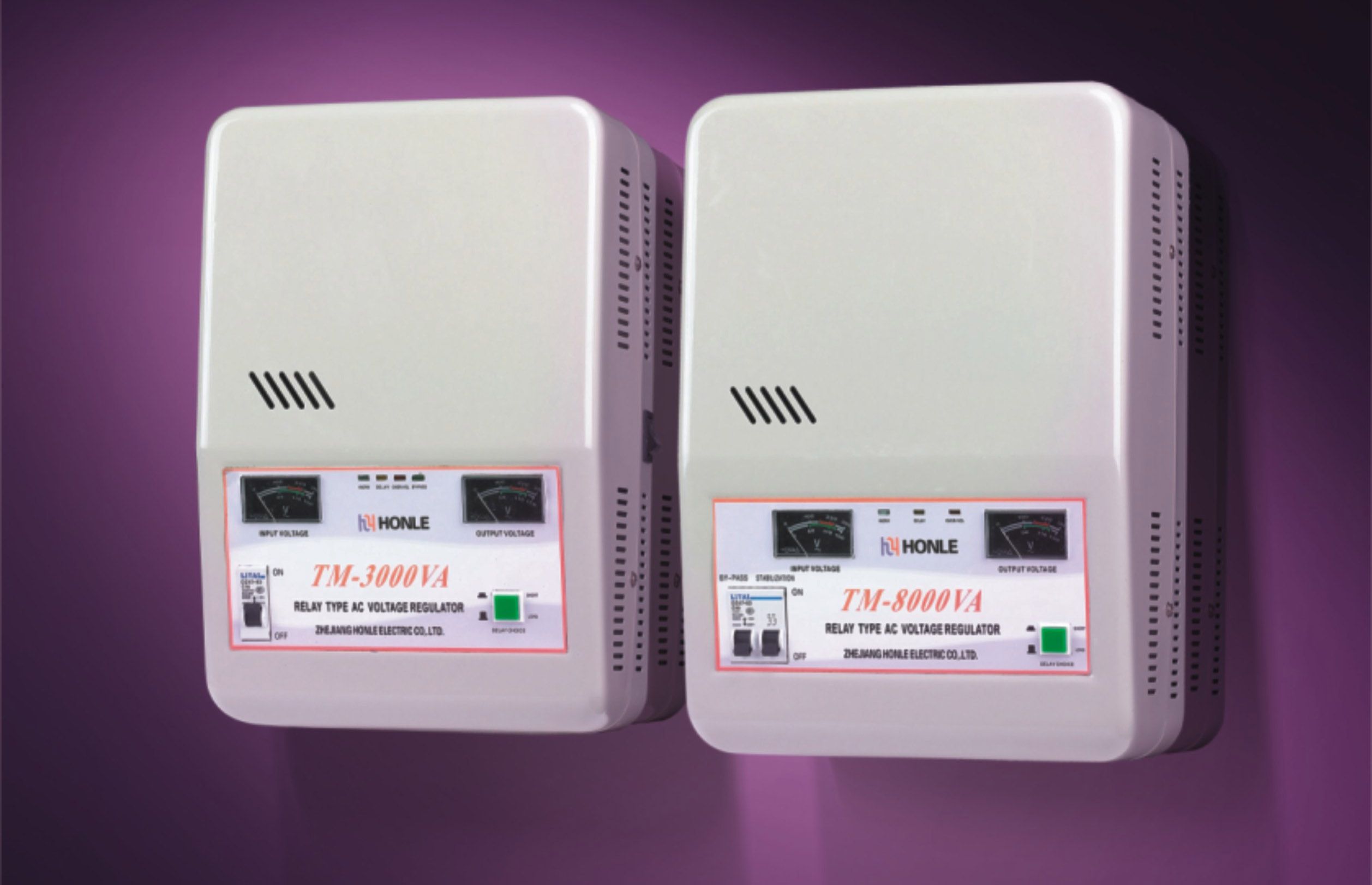

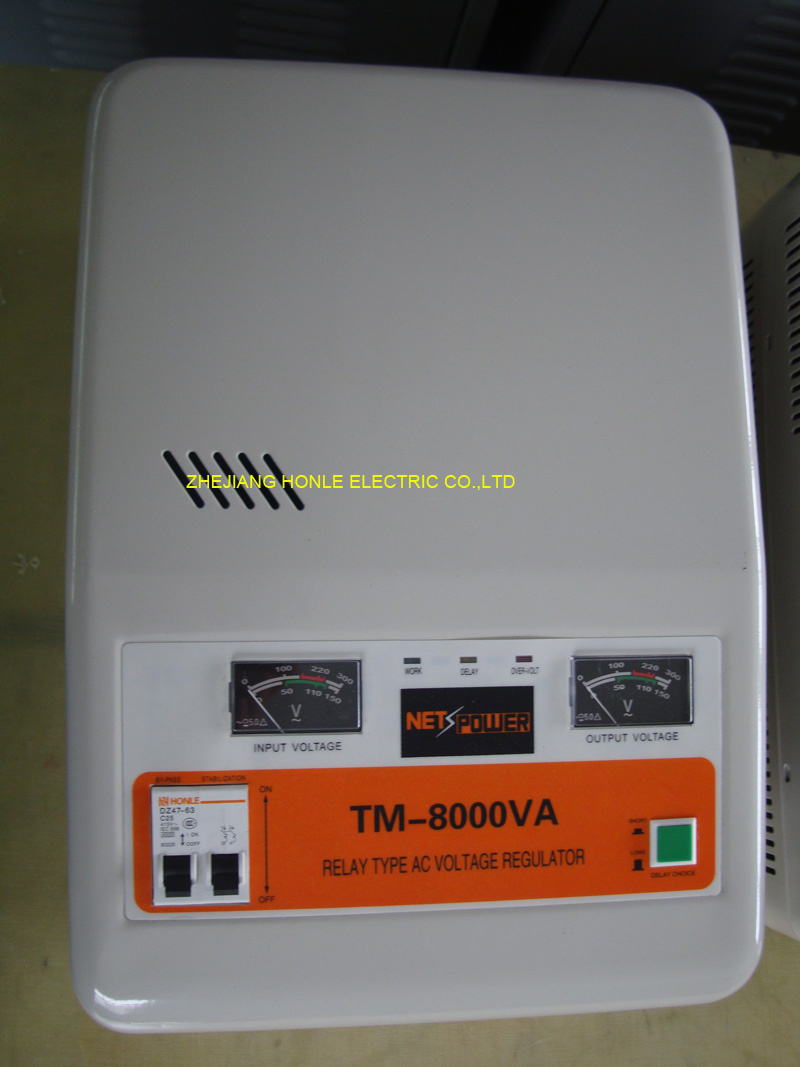

Honle TM Series Rely Type AVR Wall Mounted (TM)

Honle TM Series Rely Type AVR Wall Mounted (TM)
Price: US $ 22.3/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: TM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Install Type: Mounted Install
Current Type: AC
Phase: Single Phase
Usage: SVC
Frequency: Industrial Frequency
Frequency Characteristics: 50/60Hz
Application Range: Lighting Equipment,Household Appliance,Air-Conditi
Brand: Honle

Product Description

TM Series Rely Type AC voltage stabilizer

TM Series servo AC voltage stabilizer adopt relay switch-over to adjust the output voltage,possessing the protection against tiomdelay,over voltage and under voltage the free switching between the electric supply and voltage stabilization,etc

input voltage:120-270V
output voltage:220V±10%
Frequency:50-60HZ
Voltage regulating speed:>7.5V/sec
Voltage for over voltage Protection:246±4V
Ambient Temperature: -10~+40degreeWaveform distortion:No additional waveform distortion
Dielectric strength: 1500V/min
Insulating resistance:≥2mΩ





ModelTM-3000VATM-5000VATM-8000VATM-10KVA
Package size(cm)42×30×19.546.3×35.5×2346.3×35.5×2350×38.5×25
Weight(kg)12.518.52125
input voltage120-270V
output voltage220V±10%
Frequency50-60HZ
Voltage regulating speed>7.5V/sec
Voltage for over voltage Protection246±4V
Ambient Temperature-10°C~+40°C
Waveform distortionNo additional waveform distortion
Dielectric strength1500V/min
Insulating resistance≥2mΩ

Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.

Up to now, Honle has the modern workshops and advanced production devices. Besides, the company always introduces technology positively, reforms craft continuously, devotes to researching and developing the voltage stabilizer, regulator and power supply, precise pureness power supply, providing, marketing for products. The company always do researching and developing the stabilized voltage power supply, precise pureness power supply, providing marketing for products. In addition, the company tries to find excellent administrators and technical talents. After just a few years of continuous efforts, Honle has been improved on the aspect of varieties, production scale, management mode. So products manufactured by Honle have reached advanced technical level, they are not only popular with a great many customers in China, but also in foreign countries.

The products of our company have been approved by Shanghai Quality Supervision & Inspection Institute, and insured by PICC company. Honle insists on the quality of survival, innovation and development all the time, and it has passed ISO9001 quality management system certification. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO. That is helpful for establishing reinforced foundation of international business.
