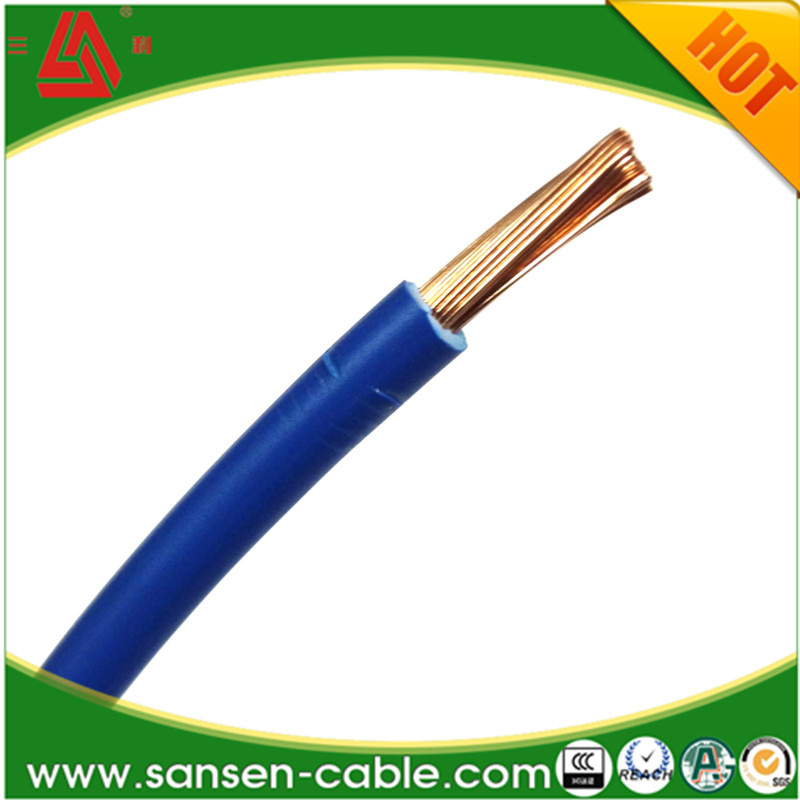

Hook-up Wire (H05V2-K/H07V2-K 90 Centi-Degree)

Intruduction of the Electric Wire PVC Insulated Single Core H05V-U / H07V-U/ H07V-R wire:
1, The national certification of qualified manufacturers
2, Standard: GB 5023.1, IEC 60227/228, VDE
3, CCC, RoHS ,SGS Certificate
4, Meet European standards and can be customized according to customer requirements
5, OEM, ODM cooperation


Applications:

H05V-U / H07V-U are harmonized PVC European single-conductor hook-up wires with a solid bare copper core. Ideal for the internal wiring of appliances, apparatus, switchboards and distributor boards or where a solid core is required. Suitable in dry rooms for fixed and flexible laying. May be used for exposed and embedded conduits. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country for MRO replacement of European made equipment wire.
The products is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances, Like lighting, electronic equipment, instrument and communication equipment with rated voltage 300/500V, 450/750V, The Operating temperature: Allowing the wire of work for long time should not exceed +70 centigrade.

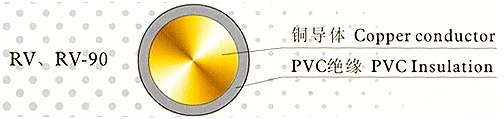

synthetic data of 602271EC02(RV)mode 450/750V general purpose sheathless cable with single core flexible conductor

Nominal cross section of conductor mm2	Conductor type	Rated value of insulator thickness mm	Upper value of average overall diameter mm	Minimum insulation resistance under temperature 700C MΩ.km
1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240	5 5 5 5 5 5 5 5 5 5 5 5 5 5 5	0.7 0.8 0.8 0.8 1.0 1.0 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2.0 2.2	3.5 4.2 4.8 6.3 7.6 8.8 11.0 12.5 14.5 17.0 19.0 21.0 23.5 26.0 29.5	0.010 0.009 0.007 0.006 0.0056 0.0046 0.0044 0.0038 0.0037 0.0032 0.0032 0.0029 0.0029 0.0029 0.0028

Note:1.Conduct structure:type 5 is adopted according to GB/T3956.
          2.Insulator:PVC/C type PVC mixture is adopted as insulating material.
          3.The average overall diameter should not be larger than the upper value stipulated in the above table.




FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.

Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.
