| Prod Model: |
LS-HP07 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contact Capacity: |
AC250V/5A |
| Suitable Gravity: |
≥0.6g/cm3 |
| Output Signal: |
Spst No/Nc |
| Protection Grde: |
IP68 |
| Float Material: |
PP |
| Float Size: |
14.5*58mm |
| Connection: |
M20 |
| Working Temperature: |
-20~80c |
| Working Pressure: |
ATM |
| Overall Size: |
28*112mm |
| Principle: |
Eddy Current |
| Wires: |
Spst |
Product Description

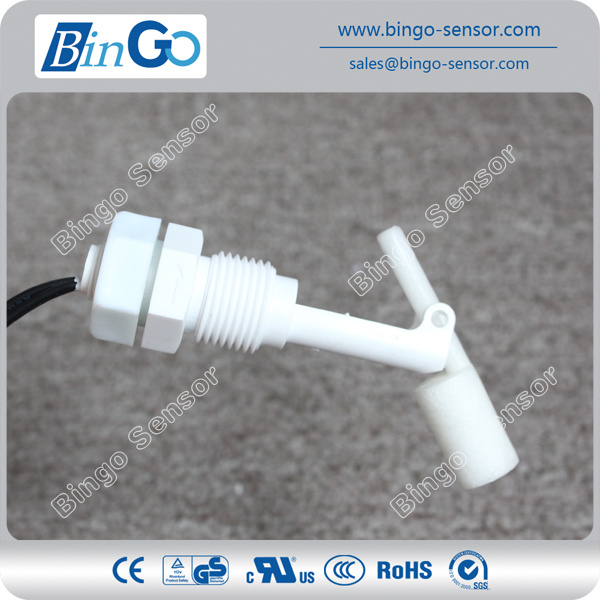

Horizontal corrosion proof PP float level switch for acid-bases liquid
Introduction:Side-Mounted Float Level Switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit. It is widely applicable in the condition of high viscosity, high pressure, high temperature because of it is flexible structure. Specially, it is used in water treatment, petrochemical, furnace, shipyard etc.Specification:| Product Name | Horizontal corrosion proof PP float level switch for acid-bases liquid |
| Contact Capacity | AC220V/1A;DC24V/0.5A |
| Working pressure | ATM |
| Output Signal | SPST NO |
| Working Temperature | -20~80ºC |
| Protection Grade | IP68 |
| Float Material | PP |
| Connection | M20×1.5 (customized) |
| Float size | 14.5*58mm |
| Overall size | 28*112mm |
Frequently Asked Questions

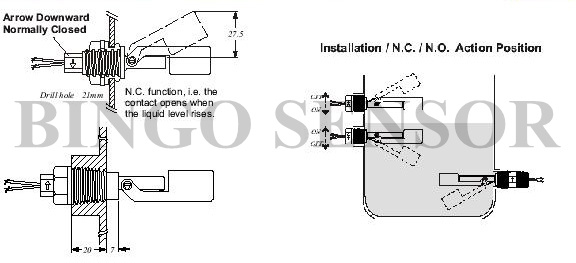

1.Action principle:
2. Applications:
Drinking fountains, water heaters, solar energy, air conditioners, humidifiers, water, bathroom equipment, vending machines, tanks, chemical liquid level control, automotive, industrial equipment, agricultural equipment, household appliances widespread application prospect.
3. How to choose a suitable level switch?
| Users should select suitable float according to the working temp., pressure,gravity,acid and alkali of the tested liquid. |
| Temperature: |
| PVC maximum temperature is 80°C, PP maximum temperature is 80°C, |
| PVDF maximum temperature is 150°C, |
| SUS304/316L maximum temperature is 200°C. |
| Pressure: |
| Plastic float maximum pressure resistance 5kg/cm2, |
| SUS304/316L maximum pressure resistance 40kg/cm2. |
| Viscosity: |
| For viscosity liquid, it is better to choose float with big diameter and small gravity to overcome the surface tension of liquid. |
| Acid and alkali liquid: |
| Please choose PP or PVDF, if temp. is higher than 80°C, PVDF ONLY |
| Alcohol and oil etc. liquid: |
| It is suggested to use stainless SUS. |
| Please select food grade SUS316L in food field. |
| Gravity: |
| Float's gravity S.G. should be less than tested liquid. |
4. How to pay and how to delivery?
PayPal, WESTERN UNION, Maestro, MoneyGram, VISA
UPS, FedEx, TNT, DHL, EMS
5. Packaging:
1. For each type, we can send you the detailed high-resolution pictures since we have the sample in our hand.
2. For packaging, we have the professional packaging starff, pls. don't worry about the shipping.
For an example:
Our service
1. Delivery time is 5~7 days for sample and 15 working days for bulk order;
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM is available; small quantities, mixed bulk orders are also welcome;
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
After-sales service
1.1~2years warranty for most of our products;
2.We will arrange delivery of the goods on time:
3.Within the warranty period, we will bear all the qulity problem of our produts;
4.Beyond the warranty period, we will despatch the replacement parts to help fix the products;
5.Without any problem, we will gain the feedbacks of our products to help improve better products.

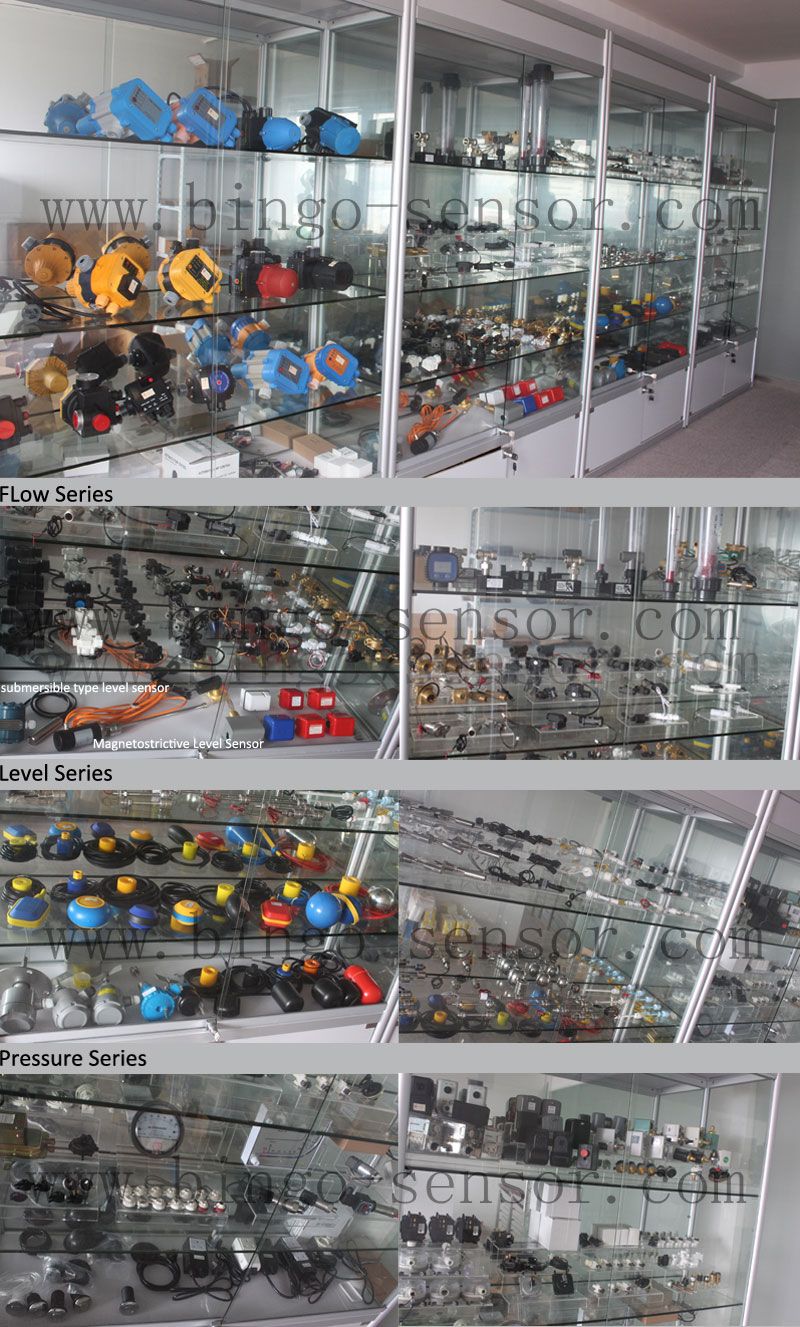

Product show room
