| Prod Model: |
HLC-34HE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling And Heating: |
Cooling and Heating |
| Cooling Capacity: |
1.8-12.6kw |
| Power Supply: |
220V |
| Air Flow: |
340-2380m3/H |
| Hot Water Temperature: |
40-60 Degree |
| Certification: |
CE |
| Usage: |
Air Conditioner |
| Control Type: |
Digital |
| Display Type: |
LED |
| Material: |
Copper |
| Type: |
Fcu |
Product Description

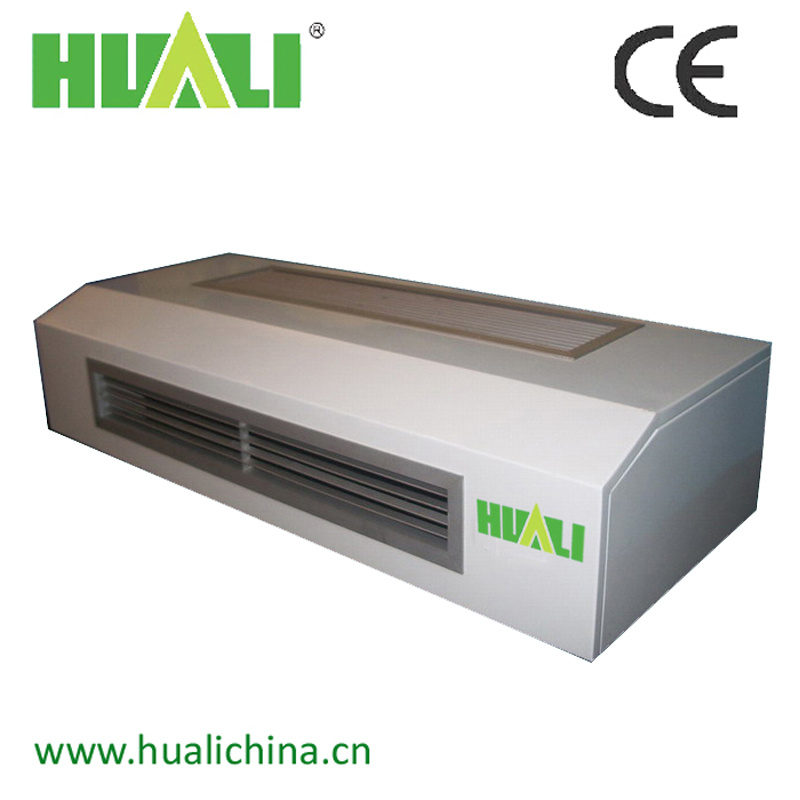

Horizontal expose fan coil unit, FCU
This unit would be able to lift ideally in the ceiling of the building, no need to cover an area, in particular, applicable to the transformation of the old building, with characteristics of less investment, simple construction, good effect, the panel color can be matched with the interior decoration
FP-FCU
Style number:
Second control: MCW200C to 1200C
Four control: MCW200H to 1200H
Electric heating: MCW200CD to 1200CD
Air output: 210 to 2, 090m³
Vertical expose fan coil unit:
Vertical expose fan coil unit similar types: Fan coil unit, fan coil, horizontal fan coil unit, duct fan coil unit, ceiling fan coil unit, ceiling type fan coil unit, chilled water fan coil unit, chiller fan coil unit, water fan coil unit,
|
Horziontal Expose Fan Coil |
|
Model |
HLC-34HE |
HLC-51HE |
HLC-68HE |
HLC-85HE |
HLC-102HE |
HLC-136HE |
HLC-170HE |
HLC-204HE |
HLC-238HE |
|
Air flow(m 3 /h) |
High speed |
340 |
510 |
680 |
850 |
1020 |
1360 |
1700 |
2040 |
2380 |
|
Medium speed |
255 |
383 |
510 |
638 |
765 |
1020 |
1275 |
1530 |
1785 |
|
Low speed |
170 |
255 |
340 |
425 |
510 |
680 |
850 |
1020 |
1190 |
|
cooling capacity |
High |
W |
1800 |
2700 |
3600 |
4500 |
5400 |
7200 |
9000 |
10800 |
12600 |
|
BTU |
6143 |
9215 |
12287 |
15359 |
18430 |
24574 |
30717 |
36860 |
43004 |
|
Medium |
W |
1620 |
2440 |
3290 |
4120 |
4850 |
6550 |
8190 |
9730 |
11580 |
|
BTU |
5529 |
8328 |
11229 |
14062 |
16553 |
22355 |
27952 |
33208 |
39523 |
|
Low |
W |
1310 |
2010 |
2650 |
3320 |
3900 |
5300 |
6610 |
7860 |
9350 |
|
BTU |
4471 |
6860 |
9044 |
11331 |
13311 |
18089 |
22560 |
26826 |
31912 |
|
heating capacity |
High |
W |
2700 |
4050 |
5400 |
6750 |
8100 |
10800 |
13500 |
16200 |
18900 |
|
BTU |
9215 |
13823 |
18430 |
23038 |
27645 |
36860 |
46076 |
55291 |
64506 |
|
Medium |
W |
2350 |
3520 |
4530 |
6040 |
6850 |
9260 |
11740 |
14140 |
16360 |
|
BTU |
8021 |
12014 |
15461 |
20615 |
23379 |
31604 |
40069 |
48260 |
55837 |
|
Low |
W |
1620 |
2470 |
3130 |
4170 |
4740 |
6500 |
8180 |
9710 |
11290 |
|
BTU |
5529 |
8430 |
10683 |
14232 |
16178 |
22185 |
27918 |
33140 |
38533 |
|
Cooling water temperature |
7 to 12 degree |
|
Hot water temperature |
40 to 60 degree |
|
|
AC220V/50Hz |
|
Heat Exchanger |
Type |
copper pipes covered into aluminum fins, fin pitch 2.2mm |
|
Water supply kg/h |
324 |
482 |
655 |
814 |
936 |
1278 |
1602 |
1915 |
2178 |
|
Water resistance kPa |
30 |
30 |
30 |
30 |
40 |
40 |
40 |
40 |
50 |
|
Working pressure |
1.6MPa |
Low static
pressure FCU |
Input power w |
37 |
52 |
62 |
76 |
96 |
134 |
152 |
189 |
228 |
|
Motor power w |
10 |
16 |
20 |
25 |
30 |
20×2 |
25×2 |
30×2 |
40×2 |
High static
pressure FCU |
Static pressrue
30Pa |
Input power w |
44 |
59 |
72 |
87 |
108 |
156 |
174 |
212 |
253 |
|
Motor power w |
12 |
20 |
25 |
30 |
40 |
25×2 |
30×2 |
40×2 |
50×2 |
Static pressure
50Pa |
Input power w |
49 |
66 |
84 |
100 |
118 |
174 |
210 |
250 |
300 |
|
Motor power w |
16 |
25 |
30 |
40 |
50 |
30×2 |
40×2 |
50×2 |
60×2 |
|
Fan motor quantity |
1 |
2 |
2 |
2 |
2 |
3 |
4 |
4 |
4 |
Noise
dB(A) |
Low static pressure |
≤37 |
≤39 |
≤41 |
≤43 |
≤45 |
≤46 |
≤48 |
≤50 |
≤52 |
|
High static pressure 30Pa |
≤40 |
≤42 |
≤44 |
≤46 |
≤47 |
≤48 |
≤50 |
≤52 |
≤54 |
|
High static pressure 50Pa |
≤42 |
≤44 |
≤46 |
≤47 |
≤49 |
≤50 |
≤52 |
≤54 |
≤56 |
|
Pipe |
Inlet/outlet water pipe |
ZG3/4 "internal thread |
|
Condensation water pipe |
ZG3/4" external thread |
|
Dimension |
L mm |
900 |
900 |
1110 |
1150 |
1290 |
1520 |
1740 |
1950 |
2140 |
|
W mm |
520 |
520 |
520 |
520 |
520 |
520 |
520 |
520 |
520 |
|
H mm |
285 |
285 |
285 |
285 |
285 |
285 |
285 |
285 |
285 |
|
20GP container loading quantity |
247 |
247 |
201 |
194 |
173 |
146 |
128 |
114 |
104 |
|
40GP container loading quantity |
487 |
487 |
395 |
381 |
340 |
289 |
252 |
225 |
205 |
