Product Description

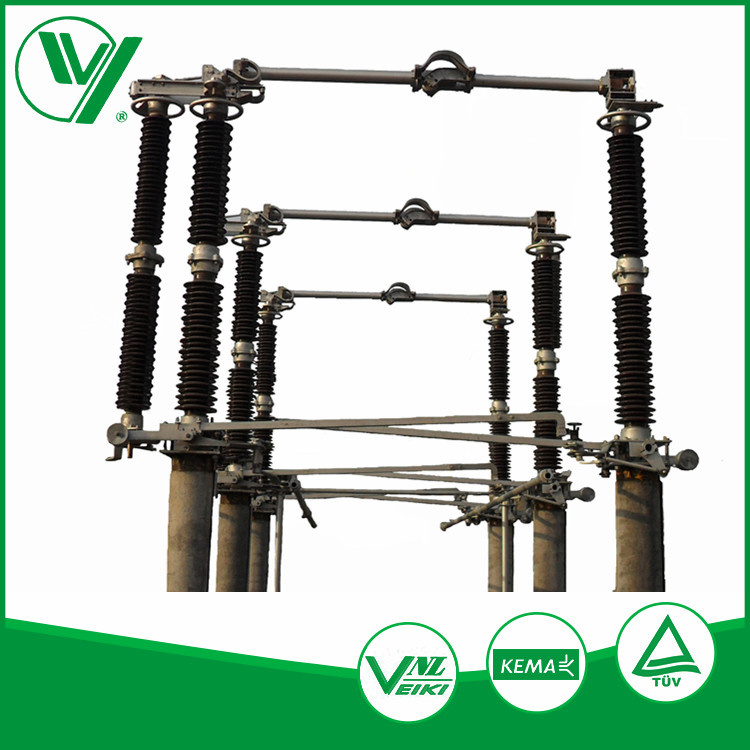

GW17 series Single-column Horizontal knee tpye Disconnector
It has the property of compact structure, advanced, clean appearance, beauty, Reliable property, economical.
It can compose "double static conductor" install way, spacing the covering. Especially, it adapt to main linking way is 3/2 power line and bus earth switch can be instead of the static contact.
Terminal block and conductive rod is made by casting aluminum alloy and aluminum alloy section, having the advantage of high-intensity, good flowing and good anti-corrosion.
Adapt to site's different laying way: One Line laying, 45° Laying, 135° Laying and so on
In the galvanic circle, the section is the combination structure made by screw fix linking, having the good property of stable flowing, high reliability, simple change way and convenient adding volume way.
In the galvanic circle, the contact and finger is made by T2Y pure copper tap whose connecting part is coated by 30μ M silver.
Finger spring is made by the stainless steel and its design is the inside hiding and outside press structure which is convenient for testing and changing
All the operating rod and linking rod are supplied by manufacturer, which is convenient for loading, adjusting and testing.
It can be supplied as a whole above the ground according to user's requirement.
| No | Item | Technical parameter | |
| 1 | Rated Voltage kV | 72.5 | 123 | 145 | 245 |
| 2 | Rated Current A | 1250.1600.2000.2500.3150.4000 | |
| 3 | Rated Short Time withstand current and Time kA/s | 25~50/4 | |
| 4 | Rated Peak withstand current kA | 63~125 | |
| 5 | 1min power frequency withstand voltage (effective value) kV | To earth | 140 | 230 | 275 | 460 | |
| To phase | 140 | 230 | 275 | 460 | |
| Across Isolating DS | 180 | 300 | 315 | 605 | |
| 6 | Lightning Impulse wishstand voltage
(peak value) kV | To earth | 325 | 550 | 650 | 1050 | |
| To phase | 325 | 550 | 650 | 1050 | |
| Across Isolating DS | 405 | 650 | 750 | 1200 | |
| 7 | Rated mechanical terminal load N | Level of lateral load | 750 | 1500 | 1500 | 2000 | |
| Level of vertical load | 500 | 1000 | 1000 | 1500 | |
| Vertical | 750 | 1000 | 1000 | 1250 | |
| 8 | Capacity and Inductive Ability (open and close) | Capacity Current A | 1 | |
| Inductive Current A | 0.5 | |
| 9 | Max Man Operative Moment N. m | 200 | |
| 10 | Motor Drive operating mechanism control voltage V | AC220; DC110, 220 | |
| 11 | Motor Drive operating mechanism motor voltage V | AC220, 380; DC110, 220 | |
