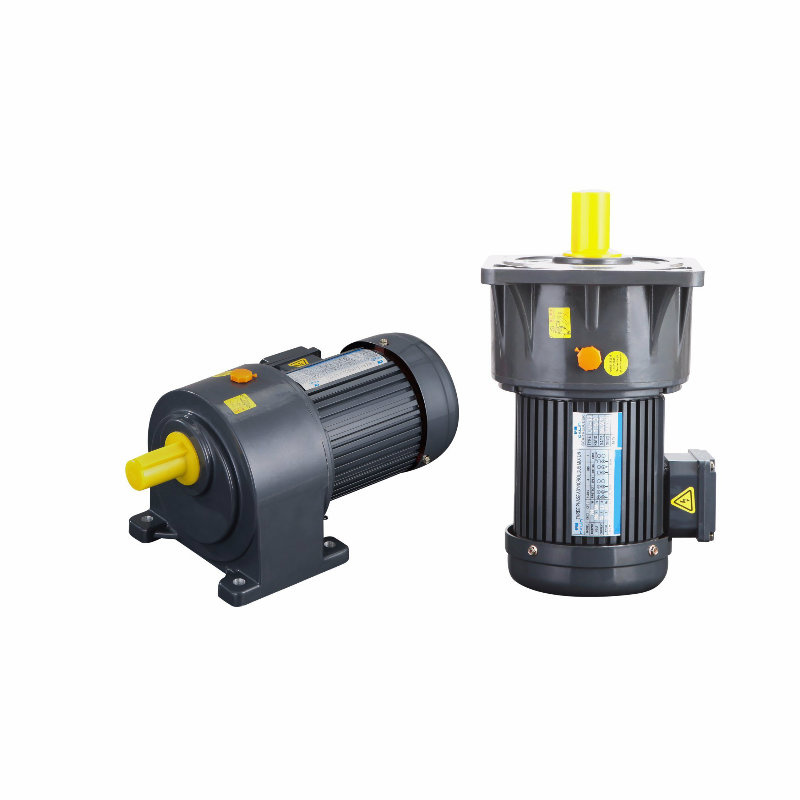

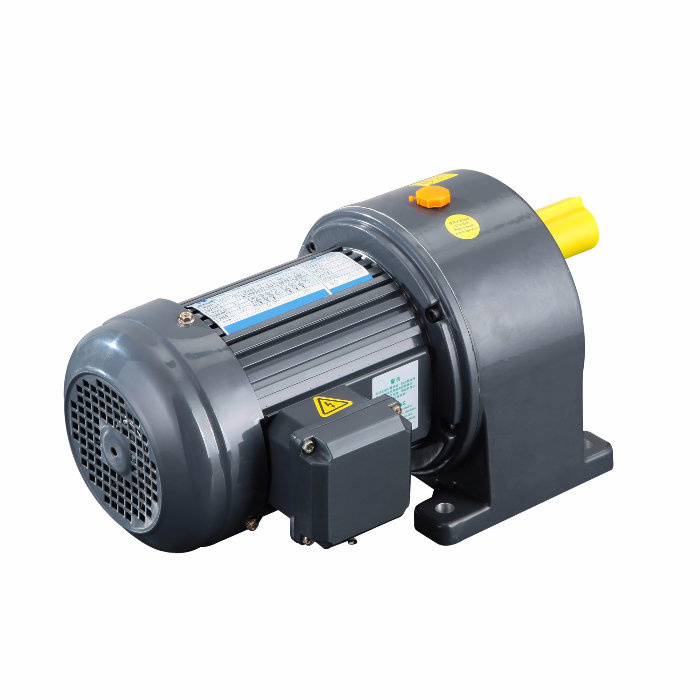

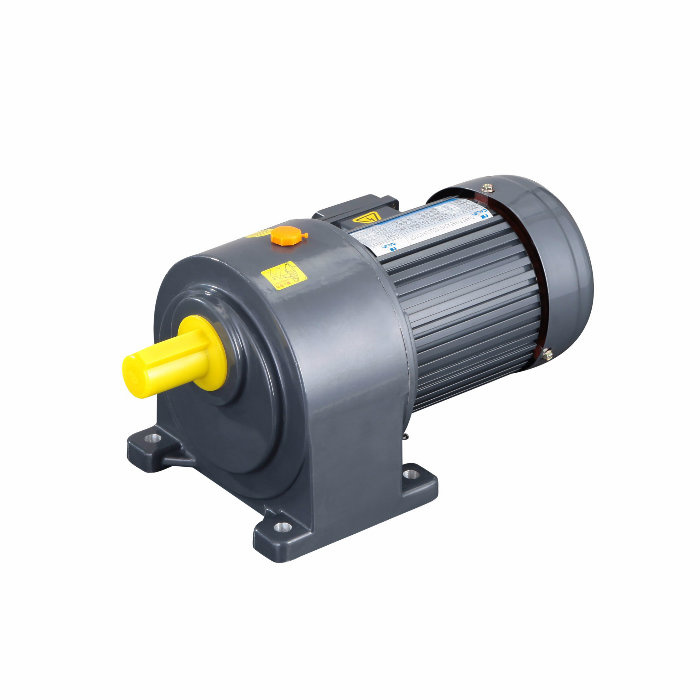

Horizontal Motor, AC Gear Motor, 40mm, 750W, 110V 220V, 380 50Hz, 60Hz, Single Phase, Three-Phase, Low Noise, High Torque

Prod Model:	CH28-750-25-S
Frequency:	50Hz/60Hz
Function:	Control
Number Of Stator:	Single-Phase/Three Phase
Number Of Poles:	4p
Certification:	Ce, RoHS, UL
Brand:	Calin

Product Description

	Gear ratio	Box number	Shaft diameter	A	D	E	F	G	H	J	K	L	M	X	Y	Z	S	P	Q	W	T	Weight
100W 1/8HP	3-50	1#	18	255	40	110	135	65	9	16	50	14	129	132	88.5	110	18	30	25	5	20	5.6
	60-100	1#	18	255	40	110	135	65	9	16	50	14	129	132	88.5	110	18	30	25	5	20	6
	60-200	2#	22	285	65	130	158	90	11	18.17	60	13	129	152	97.5	110	22	40	35	7	25	6.3
	250-1800	1#+2#	22	355	65	130	158	90	11	34	60	13	129	152	97.5	110	28	45	40	7	31	13.5
	250-1800	1#+3#	28	380	90	140	178	120	11	36	68	17	129	178	116	110	28	45	40	7	31	13.5
200W 1/4HP	3-10	1#	18	290	40	110	135	65	9	16	50	14	129	132	88.5	110	18	30	25	5	20	6.5
	15-90	1#	18	290	40	110	135	65	9	16	50	14	129	132	88.5	110	18	30	25	5	20	7
	15-90	2#	22	320	65	130	158	90	11	18.17	60	13	129	152	97.5	110	22	40	35	7	25	8
	100-200	2#	22	320	65	130	158	90	11	18.17	60	13	129	152	97.5	110	22	40	35	7	25	10.3
	100-200	3#	28	355	90	140	178	120	11	20.8	70	14	129	178	116	110	28	45	40	7	31	10.5
	250-1800	1#+3#	28	380	90	140	178	120	11	37	70	14	129	178	116	110	28	45	40	7	31	18
	250-1800	2#+4#	32	470	130	170	215	165	13	48.4	70	18	129	216	138.5	110	32	55	50	10	35	27.6
400W 1/2HP	3-10	2#	22	325	65	130	158	90	11	18.17	60	13	160	152	97.5	125	22	40	35	7	25	11.1
	15-90	2#	22	325	65	130	158	90	11	18.17	60	13	160	152	97.5	125	22	40	35	7	25	11.5
	15-90	3#	28	360	90	140	178	120	11	20.8	70	14	160	178	116	125	28	45	40	7	31	12.5
	100-160	3#	28	360	90	140	178	120	11	20.8	70	14	160	178	116	125	28	45	40	7	31	14
	100-200	4#	32	395	130	170	200	168	13	30.2	70	18	160	215	138.5	125	32	55	50	10	35	26
	250-1800	2#+4#	32	475	130	170	200	168	13	48.4	70	18	160	216	138.5	125	32	55	50	10	35	30
	250-1800	3#+5#	40	550	150	210	265	205	15	59	83	23	167	250	165	135	40	65	60	10	43.5	46
750W 1HP	3-25	2#	22	345	65	130	158	90	11	18.17	60	13	160	152	97.5	125	22	40	35	7	25	13.5
	3-25	3#	28	380	90	140	178	120	11	20.8	70	14	160	178	116	125	28	45	40	7	31	14.5
	30-120	3#	28	380	90	140	178	120	11	20.8	70	14	160	178	116	125	28	45	40	7	31	16
	30-120	4#	32	415	130	170	200	168	13	30.2	70	18	160	215	138.5	125	32	55	50	10	35	28
	125-150	4#	32	415	130	170	200	168	13	30.2	70	18	160	215	138.5	125	32	55	50	10	35	28
	125-200	5#	40	465	150	210	265	205	15	59	83	23	167	250	165	135	40	65	60	10	43.5	42.5
	250-1800	3#+5#	40	570	150	210	265	205	15	36	83	23	167	250	165	200	40	65	60	10	43.5	50
	250-1800	3#+6#	50	620	170	265	335	238	18	74	120	31.5	168	308	200	135	50	80	75	14	54	90
1500W 2HP	3-30	3#	28	420	90	140	178	120	12	23	68	17	192	178	116	135	28	45	40	7	31.1	25
	3-30	4#	32	450	130	170	215	165	13	30	70	21	192	216	138.5	146	32	55	50	10	35.5	36
	40-100	4#	32	450	130	170	215	165	13	30	70	21	192	216	138.5	146	32	55	50	10	35.5	36
	40-100	5#	40	510	150	210	265	205	15	59	83	23	192	250	165	146	40	65	60	10	43.5	52
	110-150	5#	40	510	150	210	265	205	15	36	83	23	192	250	165	146	40	65	60	10	43.5	52
	110	6#	50	560	170	265	335	238	18	51	120	31.5	192	308	200	146	50	80	75	14	54	94
2200W 3HP	3-40	5#	40	530	150	210	265	205	15	36	83	23	220	250	165	160	40	65	60	10	43.5	58
	45-80	5#	40	530	150	210	265	205	15	36	83	23	220	250	165	180	40	65	60	10	43.5	58
	45-100	6#	50	580	170	265	335	238	18	51	120	31.5	220	308	200	160	50	80	75	14	54	97
3700W 5HP	3-10	5#	40	560	150	210	265	205	15	36	83	23	220	250	165	160	40	65	60	10	43.5	62
	15-60	5#	40	560	150	210	265	205	15	36	83	23	220	250	165	180	40	65	60	10	43.5	62
	15-60	6#	50	620	170	265	335	238	18	51	120	31.5	220	308	200	160	50	80	75	14	54	98

1.  Dimension of A1 additional brake.
2. In order to cooperate with the research and development of products Yu Tian reserves the modification right of dimension design.
