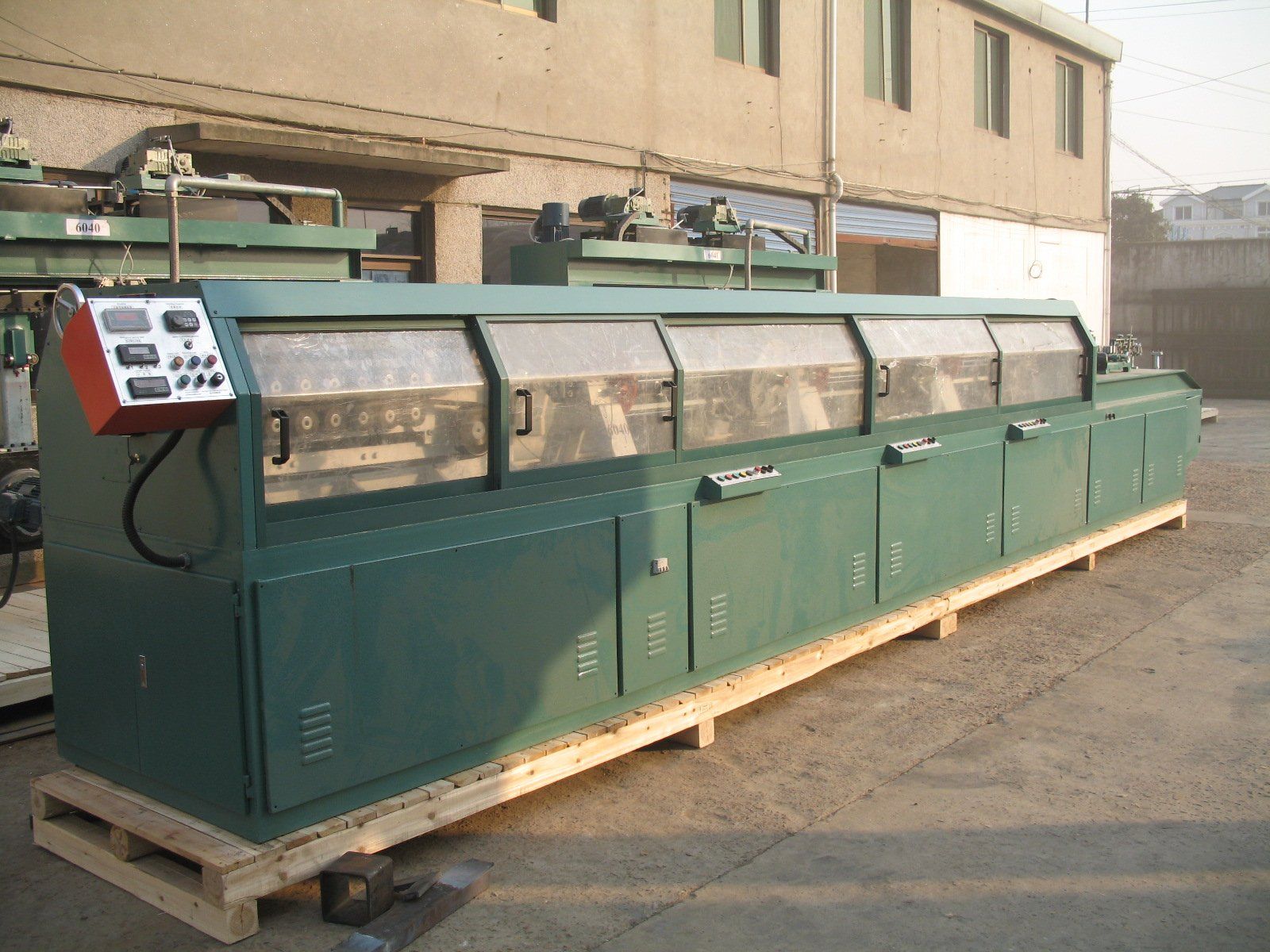

Horizontal Taping Machine

Prod Model:	WZB-2-6X

Product Description

                                            WZB-2-6X
                     HORIZONTAL TAPING MACHINE
I Description of the machine
This paper taping machine is for taping insulation papers to flat copper/aluminum wire used for transformer windings.
The machine has two taping heads for taping max. 6 layers.Suitable wire:

Flat copper/aluminum wireSection area: 1.5mmx5mm-5mmx12mm Lapping pitch: 10-32mm, step less adjustableTapping head rated speed: 500-600rpm

Suitable insulation paper:

Width: 10~32mmThickness: 0.04~0.125mmPaper pad OD: 330mmPaper pad ID: 75mm

II Buildup of the line: comprised of one pay-off stand, main machine and one take-up stands.
2.1 Horizontal pay-off stand 1 set

Max. load: 800kgUp/down: motorClamping: shaft

2.2 Straightening device 1 set

Straightening rollers: 5 pcs horizontal, 5 pcs verticalDiameter of straightening rollers: 47mmRoller distance: 70mm

2.3 Taping heads 2sets

Suitable paper reel: OD 330mm, ID 76mmQuantity of paper reels:3 for each taping headTaping angle adjustment: by guiding roller, 15-70 degreeTaping pitch: 10-32mm, continuous adjustablePitch excursion: +/-0.2mmPaper breaking detection: mechanical method, automaticMaterial of rollers touching paper: 45# steel, or stainless steel, or UHMWPERotating speed of taping head: 500-600rpm

2.4 Caterpillar type towing device 1 set

Belt width:40mmLength lf caterpillar: 1120mmBelt material: rubberHardness of belt: 85 degreeMax. towing force: 500kgfMax. opening clearance: 40mmTowing power: from main machine

2.5 Length measuring device, 1 set

Encoder measuring lengthAutomatic stop when reaching pre-set length

2.6 Take-up stands, horizontal type 1set

Max. OD of bobbin: 800mmWire guiding method: lighting rod orderingBobbin elevating: torque motorBobbin take-up power: torque motorMax. bearing weight: 800kg

2.7 Electric control system:

Main electric : The local famous brandInverter: MitsubishiVariable frequency motor: The local famous brandMaterials of rollers (contact with kraft):Chrome coated steel,Stainless steel
