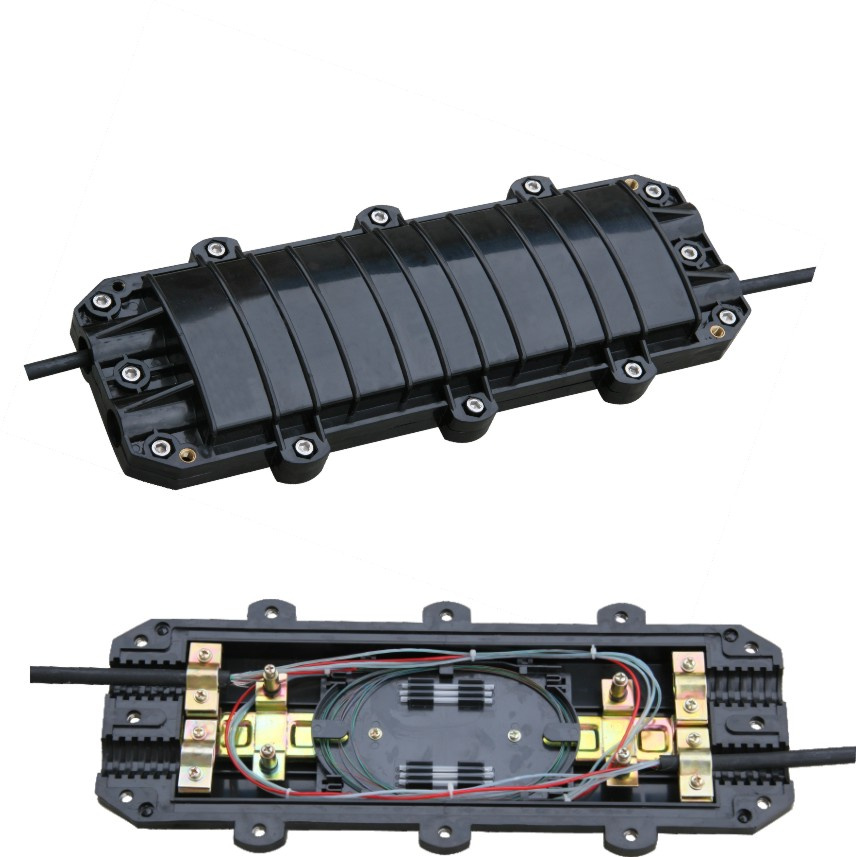

Horizontal Type Splice Closure (DTLCE-H)

Name: Horizontal Type Splice Closure (DTLCE-H)
Brand: all-electronics-online.com
SKU: 679249012
Availability: InStock
Rating: 4.6 (107 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DTLCE-H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	New
Application:	Communication
Type:	Multi-mode Fiber
Certification:	RoHS
Brand:	Datolink

Product Description

Key Features:

The box add aging-resistant in imported high tensile construction plastic out-faster is made up of stainless steel.

Overlap structure in splicing tray easy to install

Suitable for ordinary fiber and ribbon fiber

Perfect leak prooflessness and fine function

Perfect and reliable sealing operations

Fiber-bending radium guaranteed more than 40mm

Full accessories for convenient operations

Fiber optic splice closure can be used repeatedly

High reliability

For aerial, and direct buried applications

Specifications:

Temperature: -40 to +80 degrees Celsius

Atmosphere: 70 to 106kpa

Sealing property at normal temperature: Internal pressure: 70 KPa, without decrease in 72 hours

High temperature sealing property: Internal pressure: 70KPa, without decrease in 168 hours at 60 degree

Insulated resistance: >2× 104M

Intensity: 15KV (DC) not being broken down, has no flying arc.

Add ional Loss: No additional loss when optic fibers are winded in the splice trays

The-ageing time of the material of the enclosure is beyond 20 years.

Item	Description	Number of inlet/outlet ports	Capacity(Cores)	Size
1	Fiber closure, horizontal type DTLCE-H1	4	Bunchy: 6-48	280x200x90
2	Fiber closure, horizontal type DTLCE-H2	6	Bunchy: 6~96; Ribbon: max. 144	410x200x120
3	Fiber closure, horizontal type DTLCE-H3	6	Bunchy: 12~192, Ribbon: max. 432	450x216x160

Shenzhen Datolink Communication Technology Co., Ltd. Was founded in the January of 2007 by several engineers, who have had many years of working experience in fiber optical as well as in structured cabling industry. Datolink is a high technology oriented company with fiber optical products and structured wiring. We are dedicated to the design, manufacture and sales, meanwhile, we can provide customers with complete cabling solutions in installation and maintenance.

The company has a strict and comprehensive system of quality control and approved the standard ISO9001: 2000. Is well connected with raw materials providers and factories worldwidely, to offer customers a broad line of products with competitive prices and very soon time of delivery.

Our products have been exported to over 20 countries and regions such as Europe, Middle East, Southeast Asia, Latin America, etc. Datolink Ltd is committed to offer the partners high quality products and professional services, we look forward for the successful development with mutual-benefits, for casting the future of fiber optical and structured cabling!
