Hot-DIP Galvanized Spindles for Pin Type Insulators, Power Fitting

Name: Hot-DIP Galvanized Spindles for Pin Type Insulators, Power Fitting
Brand: all-electronics-online.com
SKU: 618805082
Availability: InStock
Rating: 4.6 (32 reviews)

Price:	US $ 0.88/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM010M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Finish:	Hot-DIP Galvanized
Strength:	11kn
Model:	Can Be Made to Order
Suitable:	Pin Type Insulator
Application:	High-voltage
Material:	Steel
Structure:	Spindle
Type:	Pin
Brand:	Powlik

Product Description

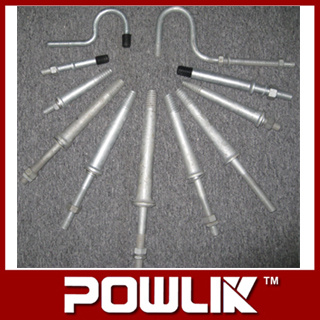

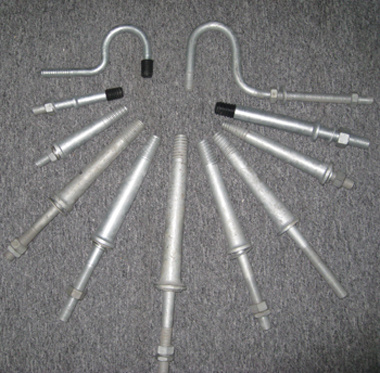

Spindles for Use With Pin Type Insulators (LM010M)

1.Hot-dip galvanzed Steel
2.It meets IEC,ANSI,GB standard
3.It can be ordered according to customer's different requirements

Cat. No.	Old Cat. No	Fig	Main Dimensions/mm							Mechanical Strength(kn)	Class ANSI	Weight(kg)
Cat. No.	Old Cat. No	Fig	H	D	h	H1	H2	a	D1	Mechanical Strength(kn)	Class ANSI	Weight(kg)
A1032	12	1	330	76	178	51	76	34.9	20	11	56-1	1.9
A1033	13	1	356	76	178	51	76	34.9	20	9	56-2	2.2
A1034	16	1	407	89	178	51	76	34.9	20	10	56-3	2.5
A1035	17	1	432	89	178	51	76	34.9	20	9	56-4	3.25
A1036	LM010M	1	343	45	165	51	76	34.9	20	6	56-2	1.6
A1037	19	2	198	76	45	51	40	34.9	20	11	56-1	1.54
A1038	20	2	223	76	45	51	40	34.9	20	9	56-2	1.87
A1039	23	2	274	89	45	51	40	34.9	20	10	56-3	2.17
A1040	24	2	299	89	45	51	40	34.9	20	9	56-4	2.7
A1041	LM010T	2	223	45	45	51	40	34.9	20	6	56-2	1.3
A1042	13M(16)	1	356	76	76	51	76	34.9	16	5	56-2	1.9

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
