Hot Popular 315MHz Universal RF Receiver Module Kl-Cwxm04

Name: Hot Popular 315MHz Universal RF Receiver Module Kl-Cwxm04
Brand: all-electronics-online.com
SKU: 826696555
Availability: InStock
Rating: 4.4 (94 reviews)

Price:	US $ 1.7-2.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KL-CWXM04
Modulation Type:	Ask/Ook
Receiver Sensitivity:	-110dBm
Size/mm:	39197
Frequency:	434MHz,315MHz,915MHz
Enocoding Type:	2262.2264.2260.1527.etc
Weight/G:	4.0g
Current/Ma:	4mA
Working Temperature:	-10~70°c
Working Voltage:	DC3V / 5V, Optional
Circuit Type:	Super-Heterodyne
Application:	Industrial Machinery
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Metal
Battery Type:	Button Battery

Product Description

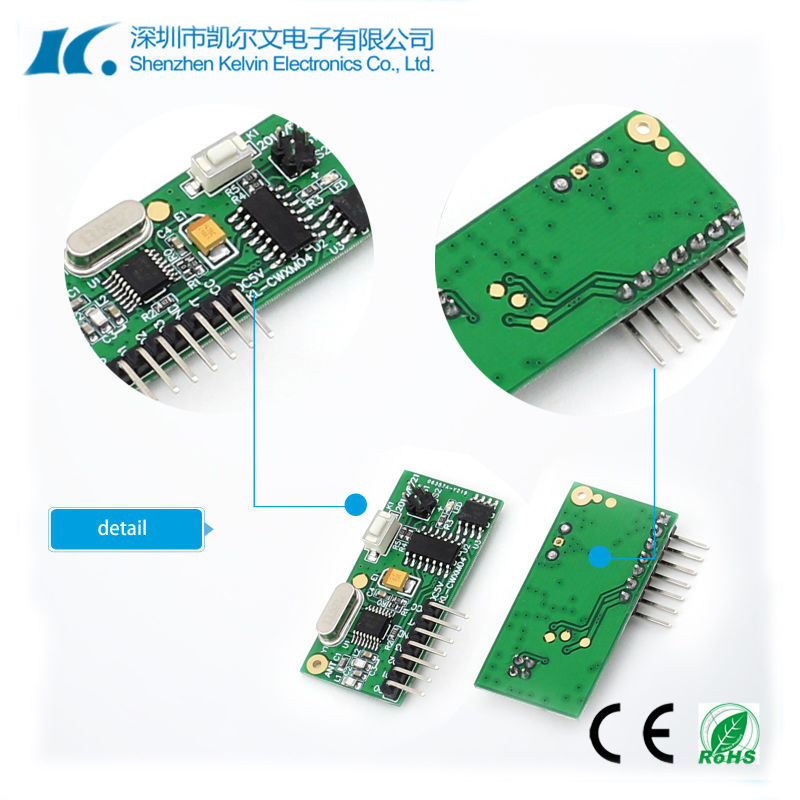

Hot popular 315MHz Universal RF Receiver module KL-CWXM04

Specification of KL-CWXM04
Parameter:
Working Voltage:DC5V
Working Current:14mA
Frequency:433.92MHZ
Sensitivity:-115dBm
Modulation:ASK(ASK)
Temperature:-30-85ºC
Dimension:47*19*7MM
Encode type:Learning code ev1527

Super-heterodyne Decoding Receiver Module
Technical Parameters
Model name	KL-CWXM04
Operating Voltage	DC 3-5V
Operating Current	14mA
Operating Frequency	315/433.92MHz / Customized
Modulation way	ASK/OOK Super-heterodyne
Ambient Temperature	-20ºC ~ +50ºC
Receiver sensitivity	-115dBm
Encoding Type	Learning code
Encoding chip	EV1527
Output way	Momentary, Toggle , Latched (with jumper hat)
Dimension	39197mm
Weight	4.0g

Operation Method:
1. Match code:
Hold learning button and learning indicator light blinks, then press any buttons of remote control, if indicator lights flashes 3 times, match code successfully. Maximum 80 remote controls can be matched.
2. Delete code:
Hold learning button till the indicator LED lights and then off, delete successfully.

3. Set working mode:
S1 & S2 program the sequence as follows:
Jumper on S1→ Toggle
Jumper on S2→ Latched
No Jumper on S1 &S2→ Momentary

Working Mode:
1. Non-lock/Momentary: Press remote button A, the corresponding relay on the receiver is on; release button A, the relay is off, the same as others.
2. Self-lock/Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same as others.
3. Inter lock/Latching: Press remote button A, the relay A is on, B is off; press button B, the replay B is on, A is off.

Shenzhen Kelvin Electronics Co., Ltd. is one of the leading manufacturers of RF products in China. We were established in 2006, and equipped with professional R&D team and abundant technical skills.

Our main business covers RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.

Kelvin always wins customers' recognition with quality and after-sales service. All items designed with Europe standard, meeting the CE and RoHS requirement. We have been ISO9001: 2000 certified since 2015. It's carried out strictly from raw material purchasing to packing and warehousing, also effectively lower down the defective rate. Besides, we are trying to make a real difference to the environment by improving our production processes and adopting environmental material, etc.

Company History: Feb 2006 Company Founded--DEC 2006 1st SMT production line--Nov 2008 1st Ce Certification--Feb 2016 Subsidiary company established

Sales performance: Turnover in 2012 Over 10million RMB--2016 Over 10million RMB

Scope of business: RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.

Prospects for development: Bright future is coming
