Hot Popular868MHz/915MHz Universal RF Receiver Module Kl-Cw11

Name: Hot Popular868MHz/915MHz Universal RF Receiver Module Kl-Cw11
Brand: all-electronics-online.com
SKU: 825558985
Availability: InStock
Rating: 5 (91 reviews)

Price:	US $ 0.5-0.55/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KL-CW11
Enocoding Type:	Non
Application:	Industrial Machinery
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Metal
Battery Type:	Button Battery

Product Description

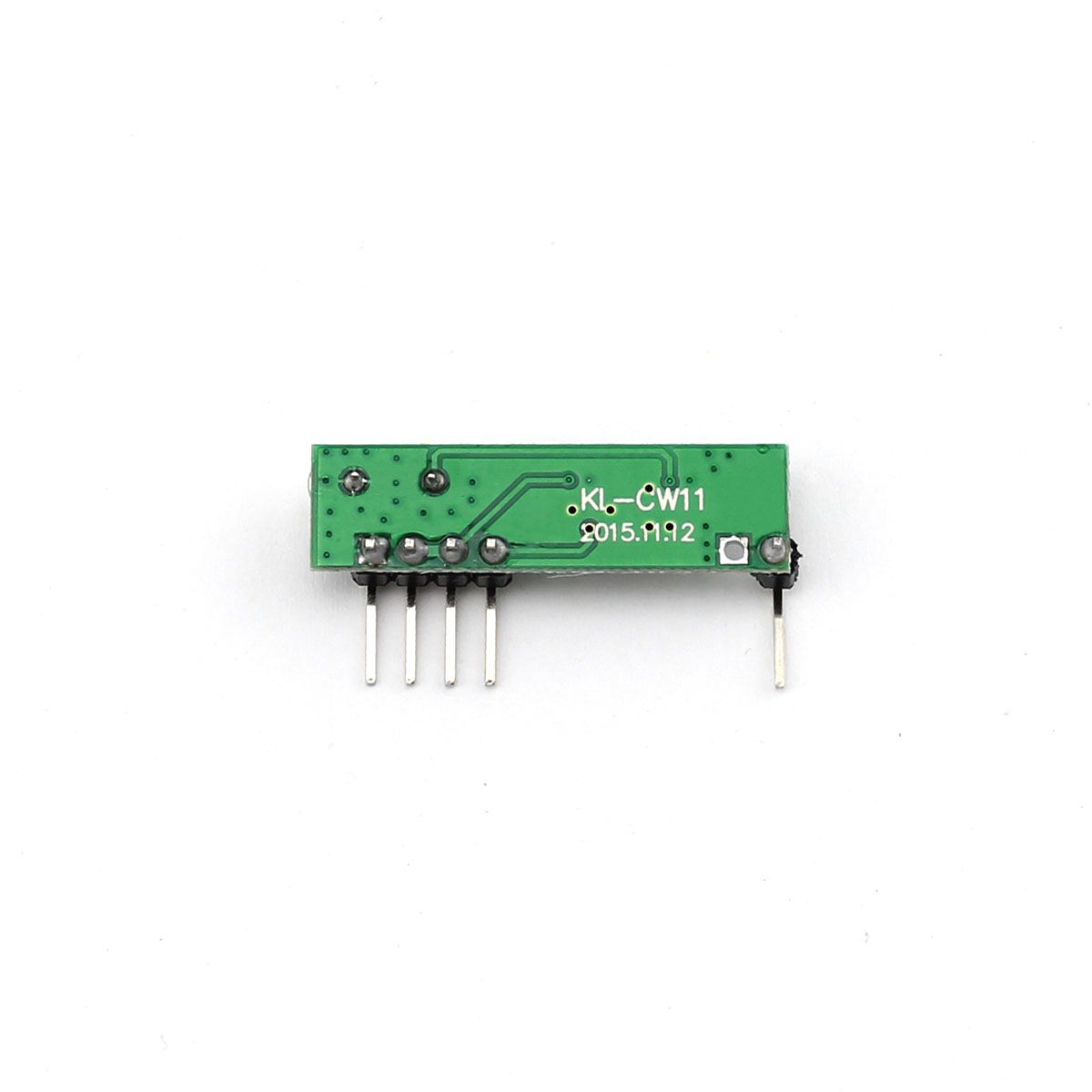

Hot popular868MHz/915MHz Universal RF Receiver module KL-CW11

KL-CW11 is a high quality super-heterodyne ISM receiver module which designed with French RF IC. It is sensitive and low cost. It highly improves the stability and reliability of RF products and lower the cost. It also makes these products more competitive on price and performance. It receives RF signal and outputs transparently, so that users can easily develop RF products with very simple decoding circuit only.
Key Feature:Good sensitivity, down to -107dBm;Small size 30*14*12mmFrequency 315MHz or 433MHz for optionalWide power input range: 3.3V-5.5V;Low power consumption: 5.0V @433.92MHz, 3.7-4.1m; 5.0V @315MHz, 2.1-2.5mA; Constant rate: 2.4K Manchester's codeGood ability on stray radiant suppression, easy to pass FCC and CE test;Good ability on local oscillator radiation suppression, receivers not influent each other while working together (one TX works with many RX). Wide temperature range: -30-85ºCApplication:Automobiles(RKE)Remote control alarmRemote engine starterHome Automation Garage door and gate openers Characteristic:

Test on +5V, 25ºC,433MHz

Parameter	Min	Typical	Max	Unit	Condition
Operation Conditions
Frequency	433.82	433.92	434.02	MHz
Modulation Type		ASK
Sensitivity		-107		dBm	1K Kbps /50Ω
Data-rate		200		KHz
Working Voltage	3.3	5.0	5.5	V
Working Current	3.7	3.9	4.1	mA
Output High Level	3.5		5	V
Output Low Level			0.5	V
Working Temperature	-30		+85	ºC

Test on +5V, 25ºC,315MHz

Parameter	Min	Typical	Max	Unit	Condition
Operation Conditions
Frequency	314.90	315.00	315.10	MHz
Modulation Type		ASK
Sensitivity		-107		dBm	1K Kbps /50Ω
Data-rate		200		KHz
Working Voltage	3.3	5.0	5.5	V
Working Current	2.1	2.3	2.5	mA
Output High Level	3.5		5	V
Output Low Level			0.5	V
Working Temperature	-30		+85	ºC

Shenzhen Kelvin Electronics Co., Ltd. is one of the leading manufacturers of RF products in China. We were established in 2006, and equipped with professional R&D team and abundant technical skills.

Our main business covers RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.

Kelvin always wins customers' recognition with quality and after-sales service. All items designed with Europe standard, meeting the CE and RoHS requirement. We have been ISO9001: 2000 certified since 2015. It's carried out strictly from raw material purchasing to packing and warehousing, also effectively lower down the defective rate. Besides, we are trying to make a real difference to the environment by improving our production processes and adopting environmental material, etc.

Company History: Feb 2006 Company Founded--DEC 2006 1st SMT production line--Nov 2008 1st Ce Certification--Feb 2016 Subsidiary company established

Sales performance: Turnover in 2012 Over 10million RMB--2016 Over 10million RMB

Scope of business: RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.

Prospects for development: Bright future is coming
