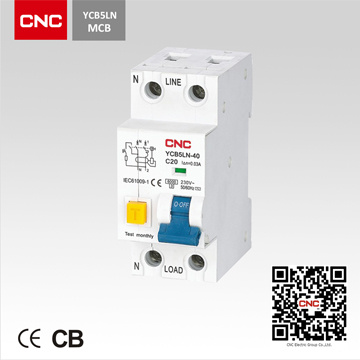

| Prod Model: |
YCB5LN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage (V): |
230/400 |
| Rated Current (a): |
6, 10, 16, 20, 25, 32, 40 |
| Rated Frequency(Hz): |
50/60 |
| Dielectric Test Voltage(Kv): |
2.0 |
| Rated Impulse Withstand Voltage(V): |
4000 |
| Rated Breaking Capacity(a): |
6000 |
| Insulation Voltage(V): |
500 |
| Protection Degree: |
IP20 |
| Curve: |
B,C,D |
| Mechanical Life: |
8000 |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CCC |
| Operation: |
Electric Type |
| Installation: |
Insert |
| Speed: |
Normal Type Circuit Breaker |
| Poles Number: |
1p+N,3p+N |
Product Description
About CNC
1. China Top 500 Enterprise
2.26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries
Specifications
1. Protection against overload and short-circuit currents
2. Protection against the effects of sinusoidal alternating earth fault currents
3. Protection against indirect contacts and additional protection against direct contacts.
4. Protection against fire hazard caused by insulation faults
5. Used in residential building
WHY US?
1. We Are Suppler of Three Gorges Project, China National Petroleum, Sinopec Group;
2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
How to Order?
1. Please let us know what kind of model, color, battery capacity you need.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 500 sets orders.
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We accept Western Union and T/T, Paypal (extra 4% commission charge)
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment
Warranty:
1.6 months for batteries, 3 months for atomizers.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
We provide 1 year warranty.
If the item is defective, please notify us within 3 days of delivery.
All item please be returned in their original condition in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
|
Type |
Standard |
|
IEC/EN 60898-1 |
|
Electrical features |
Leakage type |
|
Electromagnetic type |
|
Rated current In |
A |
6, 10, 16, 20, 25, 32, 40 |
|
Type(wave form of the earth leakage sensed ) |
|
A,AC |
|
Poles |
P |
1P+N,3P+N |
|
Rated voltage Ue |
V |
230/400 |
|
Insulation voltage Ui |
V |
500 |
|
Rated frequency |
HZ |
50/60 |
|
Rated breaking capacity |
A |
6000 |
|
Rated impulse withstand voltage (1.2/50) Uimp |
V |
4000 |
|
Dielectric test voltage at ind. Freq. for 1 min |
kV |
2 |
|
Rated sensitivity |
A |
0.03,0.1,0.3 |
|
Break time under |
s |
≤ 0.1 |
|
Rated residual making and breaking capacity |
A |
500 |
|
Pollution degree |
|
2 |
|
Mechanical features |
Electrical life |
t |
4000 |
|
Mechanical life |
t |
8000 |
|
Protection degree |
|
IP20 |
|
Storage temperature |
°C |
-25~+70 |
|
Ambient temperature (with daily average≤35°C) |
°C |
-5~+40 |
|
Installition |
Terminal connection type |
|
Cable/Pin-type busbar/U-type bar |
|
Terminal size top/button for cable |
mm² |
16 |
|
AWG |
18-5 |
|
Terminal size top/button for busbar |
mm² |
16 |
|
AWG |
18-5 |
|
Tightening torque |
N*m |
1.2 |
|
In-Ibs |
11 |
|
Mounting |
|
On DIN rail EN 60715(35mm) by means of fast clip device |
|
connection |
|
From top and button |
