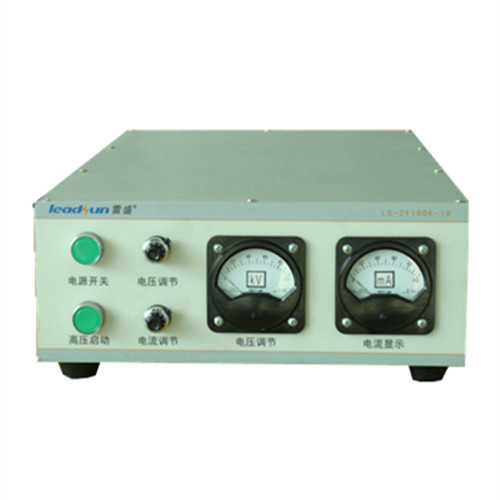

Hot Products High Voltage LP100KV-30mA Variable AC Power Supply

Prod Model:	LP100KV-30mA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
L*H*B:	280×370×750mm
Ambient Temperature:	-20oc~50oc
Cooling:	Air Cooling
Working Frequency:	50kHz
Output Type:	Single
Warranty:	1 Year
Connection Mode:	Series Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Output Power:	3kw
Input Voltage:	AC Single-Phase 220V or 208V
Starting Mode:	Soft Start
Brand:	Leadsun

Product Description

High Frequency High Voltage Power Supply LS-ESP 100KV/30mA
Specifications

Item	Parameters	Remarks
Input voltage	220V AC	Wave less than 10%
Rated power	3KW	Full load, output Umax, Imax
Rated output voltage	100KV
Rated output current	30mA
Comparative voltage control accuracy	3%	Uo=80%Umax
Absolute voltage control accuracy	5%	Uo=80%Umax
Voltage/temperature coefficient	20V/1K
Voltage program accuracy	Better than 1.5%
Voltage output range	0-100KV adjustable
Output limiting current	30mA
Time of warm start	<0.5 second
Time of cold start	<8 seconds
Control response time	Better than 20mS
Ambient temperature	-20 ~ 50ºC
Ambient humidity	10% ~ 90% no atomization
Cooling	Air cooling
Starting	Soft start
Constant voltage control mode	Phase-shifting PWM
Current control mode	Constant current of average value  Peak value testing	Within 100nS peak value loading, cut off and restart automatically
Working frequency	50kHZ
Converting efficiency	Better than 80%	Output voltage from 50% - 75%, efficiency 80% - 90
Voltage regulation rate	<1.0%	10~30mA
Dimension	280×370×750mm   L*B*H

Company & Services
· Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
· Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of  Types and Models for your choosing
· Leadsun technical center record every order and product characteristics; sales department focus on market developmenttendency, will supply you Full Service.
· Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
· Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.
We can also customize the products as your need.
