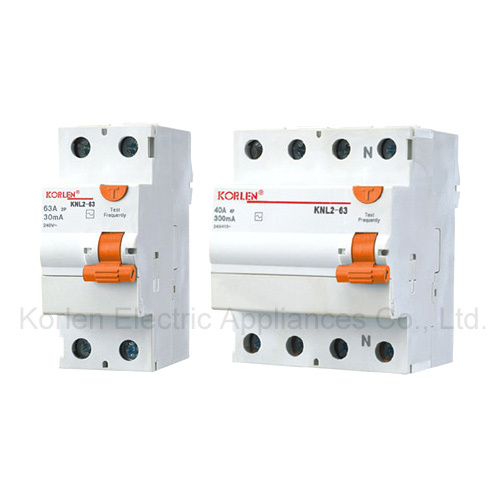

Hot Residual Current Circuit Breaker (KNL2-63)

Hot Residual Current Circuit Breaker (KNL2-63)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1000/Piece
Pay Type: T/T
Prod Model: KNL2-63
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Poles Number: 2
Certification: CB
Structure: Conventional Circuit Breaker
Type: Circuit Breaker
Function: Overcurrent Protection

Product Description

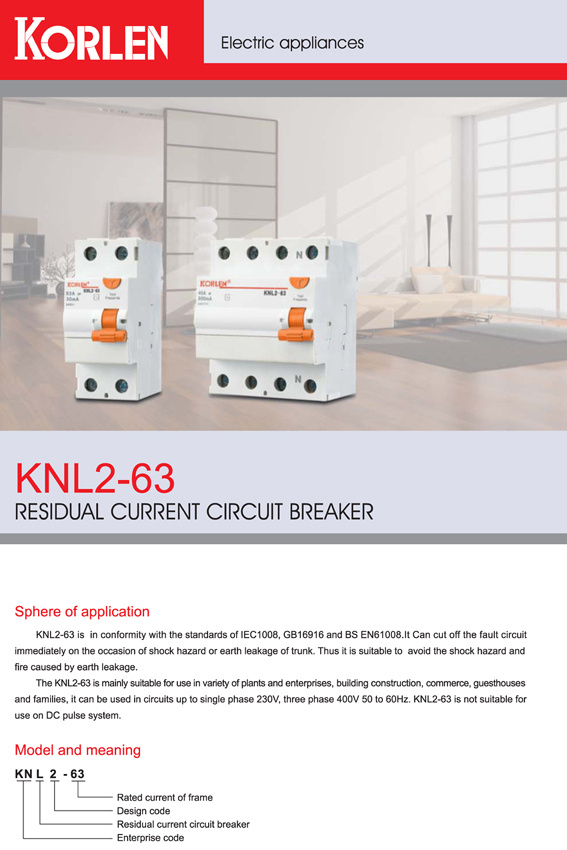

KNL2-63 is in conformity with the standards of IEC1008, GB16916 and BS EN61008. Can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk, Thus it is suitable to avoid the shock hazard and fire caused by earth leakage. The KNL2-63 is mainly suitable for use in variety of plants and enterprises, building construction, commerce, guesthouses and families, it can be used in circuits up to single phase 230V, three phase 400V 50 to 60Hz. KNL2-63 is not suitable for use on DC pulse system.
Frame class63A
Rated working voltage240/415V
Rated frequency50/60Hz
Rated working current16,20,25,32,40,50,63A
Rated residual operating current0.03,0.1,0.3A
Rated residual un-operating current0.015,0.05,0.15A
SensibilityAC Type
Maximum operating timeIΔn t≤0.1s , 5IΔn t≤0.04


Wenzhou Korlen Electric Appliances Co., Ltd, It is a joint venture. My company is a manufacturer including design, development, produce and sale, professional producing MCB, MCCB, RCCB and AC contactor etc. Product enterprises. The company owns import and export power of self-run, expanding Europe and America, Middle East, Southeast Asia etc. Market, set a good Public praise.

The company have more than 1500 workers, including senior engineer among them, engineer at inside of more than 100 technician. And then set up to cover area more than 50 acres, construct area is more than 38000 square meters of the modern industrial zone, providing with the forerunner's standard laboratory and various examination equipments.

Under Korlen people to make great effort unremittingly, designed and developed by oneself, develop and produce the series of MCB, RCCB filled up local blank, attain inter-national advanced level, and acquire more than 20 national patents. The company acquires "30 strong eminent enterprises, top ten of export income, yueqing star class enterprise, attach importance to contract and keeps promise" title of honor for many times past years. Company still the initiative pass ISO 9001 management system verification and 14001 environments management system verification. Our product passed quality verification of domestic and international authority organization like the CB\ SEMKO\ NF\ SIRIM\ SNI\ CE \PCT\ TSE, In the meantime high breaking capacity breaker of our company in this city is the unique product which got " Yueqing famous brand product" by Yueqing people government.

Korlen Electric Appliances is willing to make friends with social public, the world outside businessman join hands together for prosperous society and development to build a brighter future.
