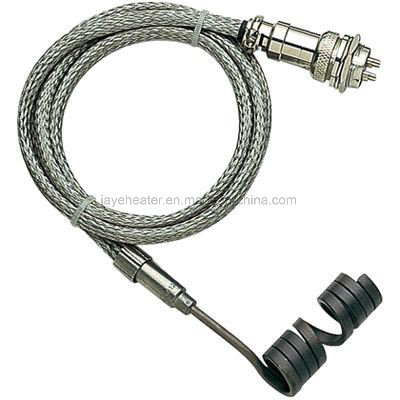

Hot Runner Spring Coil Heater Element with Aviation Plug

Name: Hot Runner Spring Coil Heater Element with Aviation Plug
Brand: all-electronics-online.com
SKU: 727067392
Availability: InStock
Rating: 4.5 (79 reviews)

Price:	US $ 20-30/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY-Hot Runner009
Cross Section:	33mm, 24mm 2.24.2mm, 3.53.5mm
Thermocouple Type:	K and J Type
Sheath Material:	Cr Ni-Steel
Insulation Material:	MGO
Resistance Wire:	Ni Cr 80-20
Voltage:	Customized
Power:	Customized
Unheated Length:	35mm (Standard)
HS Code:	85168000

Product Description

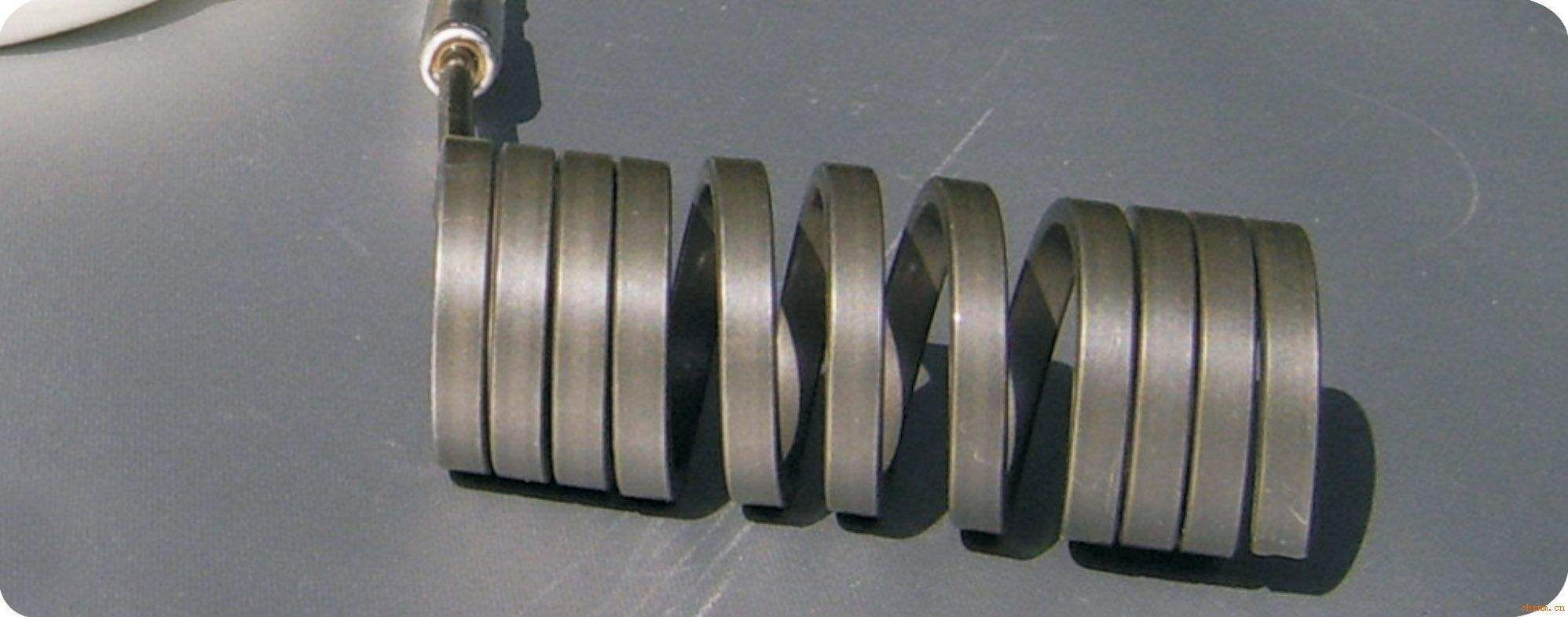

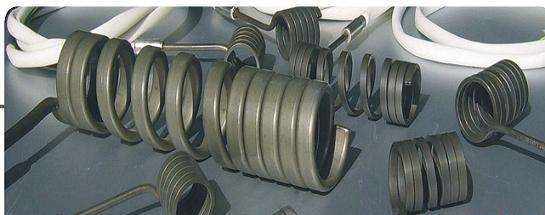

Spring Coil Heater

Coil heaters also known as cable heaters can be formed to a variety of shapes as required by its many applications. Frequently though, coil heaters are configured as small diameter, high performance nozzle heaters that are fully annealed. Coil heaters are used on injection molding machine nozzles and sprue bushings supplying 360o of heat with optional distributed wattage models also available. Coil heaters are also used as cartridge heaters where irregular size bores are found. A straight, round cable heater can snake through a sealing bar in packaging equipment installations.

Applications for Industrial Spring Coil Heater :

1. Manifolds
2. Hot runner nozzles and spruce bushes
3. Packaging machinery
4. Injection molding machine nozzle

Features:

1. Standard sizes available with various cross section
2. Various Watt Density options available.
3. Robust Design with Choice of Terminal Exits
4. Available with built in Thermocouple
5. Designed for even heat profile.
6. Precision fit on Hot Runner Nozzles & Manifolds.
7. Highly Non-corrosive.
8. Maximum heat transfer due to more contact area.
9. Advanced Thermal Engineering.

Specifications:

Sheath Material	Cr Ni-Steel
Insulation Material	MgO
Resistance Wire	Ni Cr 80-20
Maximum Sheath Temperature	700°C
voltage	800V A/C
power	> 5 M W
Thermocouple	J type (Standard) or K type
Length Tolerance (Straight)	5%
Wattage Tolerance	+ 10% ( + 5% Available Upon Request)
Resistance Tolerance	+ 10% ( + 5% Available Upon Request)
Unheated Length	35mm (Standard)
Dimensional Tolerance	Coil I.D + 0.1 to 0.2mm
Dimensional Tolerance	Coil Length + 1mm

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
