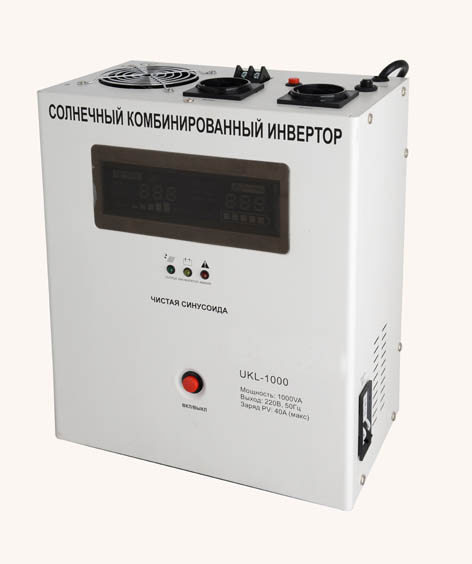

Hot Sale 1000va Pure Sine Wave Solar Inverter with MPPT Controller
| Price: |
Negotiable/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SHG-1000VA |
| Power Source: |
Solar Power |
| AC Inptut: |
140VAC~275VAC |
| Battery DC: |
12VDC |
| AC Output: |
230VAC |
| AC Charger: |
10A Max |
| PV Input: |
12-25VDC |
| PV Charger: |
20A Max |
| Wave: |
Pure Sine Wave |
| Protections: |
Deep Discharge, Overcharge, Short Circuit etc |
| Application: |
Solar System |
Product Description
Salient Features: - Pure sine wave output, strong compatibility, which can be connected with refrigerators, electric fans, televisions, fluorescent lamps etc, without damage for loads.
- C.R.G.O Toroidal transformers technology , more reliable, Low static loss
- Double CPU intelligent control, high performance
- MPPT solar charging technology, more efficient
- With wide frequency range, auto-tracking for main frequency and inverter output 50/60Hz
- Intelligent selection between main mode and solar mode, more energy-saving
- Full range of automatic protections & alarm: overload, short circuit, overvoltage, under voltage, high temperature etc.
- Friendly display interface, clear working status
| Model | 500VA | 800VA | 1000VA | 1500VA | 2000VA | 2500VA | 3000VA | 5000VA |
| Power Capacity | 300W | 500W | 700W | 1050W | 1400W | 1800W | 2100W | 3500W |
| Battery voltage | 12Vdc | 12Vdc | 12Vdc | 24Vdc | 24Vdc | 24Vdc | 48Vdc | 48Vdc |
| Working mode | PV(Photovoltaic priority) / AC(AC priority)Optional |
| PV | Input voltage range | 12Vdc-25Vdc | 24Vdc-50Vdc | 48Vdc-90Vdc |
| Max. charge current | 10A/20A/30A//40A Optional
According to print on machine | 60A |
| Max. Conversion efficiency | 98% |
| Display | Panel indicator light | LED Graphic Screen LED lights |
| Mains status(Optional) | Input voltage range | 140Vac~275Vac |
| Input Frequency range | 45-65 Hz(Automatically transfer to inverter power when over frequency) |
| Output voltage range | 190Vac~245Vac |
| Input PF.(AC/DC) | 98% |
| Efficiency | Mains mode≥ 96% |
| Charge current | 10A/15A/20A |
| Mains overload | warning until decrease load |
| Short circuit | Yes |
| Inverter output | Inverter output voltage | 220V±3% |
| Output frequency | 50 Hz / 60Hz ± 0.3Hz frequency adaptive |
| Output power factor | ≥0.8 |
| Wave form distortion | Linear load≤ 3% |
| PV-AC transfer time | 4Ms typical value Max.6 Ms |
| Efficiency | Inverter mode≥ 80% |
| Inverter overload | 110%-130% shutdown at 30s,130%-150% shutdown at 3s |
| Short circuit | Systems automatically shut down |
| Alarm | Mains abnormal | 1time/1S, silence auto after 5S |
| Low battery | 1time/1S and flash battery last grid |
| Overload | 1time/ 1S and display "overload" grid |
| Communication interface | RS232(Optional) |
| Others | Output sockets | Universal sockets / customized |
| Surge protection | Optional |
| Ambient temperature | 0ºC ~40ºC |
| Ambient humidity | 10% ~90%(Non Condensed) |
| Noise | ≤ 50dB |
Remark: the solar panel power configuration is related with the inverter working mode and charging current, we suggest match the PV power according to projects needs. ON/OFF Instructions 5.1 AC priority 1) On: When Mains is normal, inverter will start normally into AC mode, and at the same time will charge the battery; when the Mains is abnormal or no input , press the button "ON" in 3 seconds, it will start and go into Inverter mode, when mains recover, it will automatically switch to AC mode, and charge the battery 2)Off: Press the shut-down ("OFF") in 3 seconds, it will cut off the output, in AC mode, it will continue to charge the battery and not switch to inverter mode again. 5.2 PV Priority 1)On: When press the start button ( "On") in 3 seconds, or inverter starts automatically when Mains recover, If battery is full enough, then it will switch to battery mode , and supply power to loads ( Mains as a stand-by) 2) Off: When inverter shut down and cut off the output, it will not switch to the inverter mode. Note: currently in inverter mode, if AC input is high voltage it need cut off the mains to shut down; When AC input voltage is low, it can switch to Mains mode after shut down and no output. 3) Switch between Mains & invert mode : in Mains, when it shut down, it can not switch to inverter mode. When system start, if Mains is abnormal or battery is charged full enough by the solar panel, it will switch to inverter mode. Under this, when battery is low voltage it can switch to mains mode automatically. 5.3 Turning on steps; - Please ensure the battery connecting properly ( positive/ negative and voltage parameters consistent with the product identification), and then turn on the battery switch
- Please ensure the solar panel connecting properly ( positive/ negative and voltage parameters consistent with the product identification), and then turn on the solar input switch
- Press the button "on/off" in 3 seconds, and start the inverter
- Turn on the solar panel input switch , and it will charge automatically
- Connect the mains properly, after the inverter starts normally, and then start the mains switch
- After 30 seconds, inverter will output normally and connect the loading, then start the loads one by one.
5.4 Turning off steps: - Turn off the loads one by one
- Press the shut-down ( "Off ") manually in 3 seconds, and cut the output
- Unplug the power cable or connector cable, cut off the Mains input ( if no need Mains charging)
- Turn off the switch of solar panel on the real panel ( If no need Solar panel charging )
- Turn off the switch of battery on the real panel ( if no need charging )
Founded in 2005, SUNKAX Technology Limited is a leading manufacturer and exporter for clean power, such as solar inverter, step up/down voltage transformers, consumer electronics (travel charger adaptors, USB Chargers, output power distribution board, etc. ).
Our products are exported to different countries all over the world, be popular in market for high quality, attractive packing, favorable price, and also excellent service.
With a 19, 000 factory, 8 production lines and over 150 well-trained workers, we turn out 90, 000 units monthly. All our products for export must strictly pass IQC inspections on critical components, 100% online testing, under loading and burn-in testing
SUNKAX has been a pioneer of technology. Back in 2005, we explored the key technology of aluminum transformer production and became the first aluminum transformer supplier
In the automatic voltage regulator field, we developed our own high performance MCU controlled circuit and have obtained several registered patents for our products. We developed air-conditioners stabilizers the best solution to meet your demand.
In inverter/UPS field, We are the 1st to invent toroidal inverters. Which have outstanding advantage of low idle current, low electromagnetic interference, long back-up time and high efficiency. Equipped 32-bit speed CPU control with accurate detection and unique C. R. G. O toroidal transformers, including our solar integrated inverters, all core technology are developed by own R&D team, which makes us one of few factories who holds the key technology.
In guidance of strong R&D team, we are able to produce the exceptional reliable products with the help of skillful working staff, comprehensive quality system and advanced equipments such as newest wave(flow) soldering, and burn-in testing line.
Ongoing research and being creative is what keeping our products at the top of our industry.
Our quality policy:
Everyone participates, continuous improvement, innovation.
Our management idea:
Based on good staff, concentrating on quality and efficiency, keeping on providing customers with excellent service.
Welcome to contact us today for your next OEM/ODM project.
