| Prod Model: |
S11 |
| Frequency: |
50/60Hz |
| Product Name: |
Hot Sale 600kVA Step Down Distribution Transformer |
| Standard: |
IEC60076 |
| Rated Capacity: |
600kVA |
| High Voltage: |
6kv, 6.3kv, 10kv, 10.5kv |
| Low Voltage: |
0.44kv, 0.4kv, 0.38kv, 0.22kv |
| Vector Group: |
Yyn0 or Dyn11 |
| Impedance Voltage: |
4% |
| Type: |
Oil Immersed Type |
| Dimension: |
1650mm*1140mm*1920mm |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Auto-transformer |
| Brand: |
Zhongyi |
Product Description

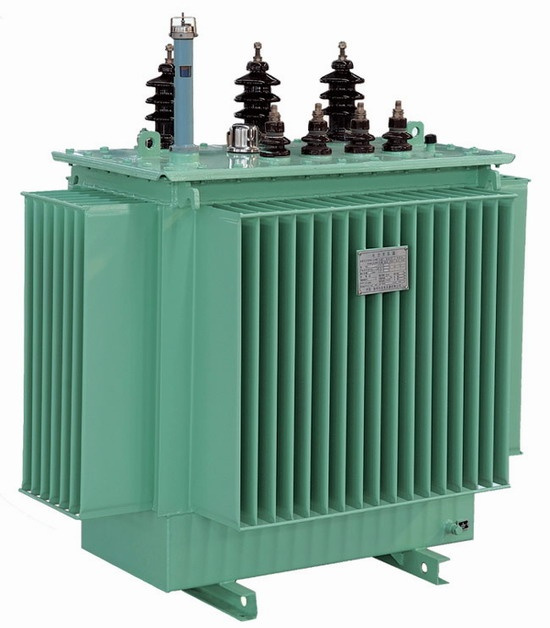

Hot Sale 600kva Step Down Distribution Transformer
Product introduction
S11 series transformer is one kind of low loss copper winding product. It adopts high quality material, especially applying the new technology and new material to the insulation of the coil and transformer body, thus the no-load and the load loss are obviously reduced, the performance and structure are more reliable and superior.
1. Primary Voltage: 11kV. 22kV.33kV
2. Second Voktage: 0.4kv
3. Tapping Range: ± 5%, ± 2× 2.5%
4. Frequency: 50Hz; 60Hz
5. Connection Sign: Yyn0, Dyn11 or others
Product features
1.Good Economic Performance
2.Long Service Life
3.High Operational Reliability
4.Small Installation Area
Technical Specifications
Model No. | Voltage Combination | Connection Group Symbol
| No-load Loss | Load Loss | Impedance Voltage (%) | No-load Current(%) | Length L(mm) | Width W (mm) | Height H(mm) |
| High Voltage | Tapping Range of High Voltage | Low Voltage |
| S11-30/10 |
6
6.3
10
10.5 |
±5%
±4×2.5% |
0.4 |
Yyn0(or) Dyn11
| 0.1 | 0.6 |
4.0
| 2.8 | 980 | 735 | 1145 |
| S11-50/10 | 0.13 | 0.87 | 2.5 | 1017 | 758 | 1205 |
| S11-63/10 | 0.15 | 1.04 | 2.4 | 1035 | 785 | 1285 |
| S11-80/10 | 0.18 | 1.25 | 2.2 | 1065 | 800 | 1290 |
| S11-100/10 | 0.2 | 1.5 | 2.1 | 1072 | 820 | 1305 |
| S11-125/10 | 0.24 | 1.8 | 2.0 | 1155 | 1105 | 1310 |
| S11-160/10 | 0.28 | 2.2 | 1.9 | 1235 | 850 | 1535 |
| S11-200/10 | 0.34 | 2.6 | 1.8 | 1282 | 860 | 1557 |
| S11-250/10 | 0.4 | 3.05 | 1.7 | 1310 | 940 | 1605 |
| S11-315/10 | 0.48 | 3.65 | 1.6 | 1465 | 1120 | 1915 |
| S11-400/10 | 0.57 | 4.3 | 1.5 | 1440 | 1165 | 1725 |
| S11-500/10 | 0.68 | 5.15 | 1.4 | 1510 | 1250 | 1845 |
| S11-630/10 | 0.81 | 6.2 | 1.3 | 1650 | 1140 | 1920 |
| S11-800/10 | 0.98 | 7.5 |
4.5 | 1.2 | 2125 | 1175 | 2315 |
| S11-1000/10 | 1.15 | 10.3 | 1.1 | 2150 | 1380 | 2570 |
| S11-1250/10 | 1.36 | 12.0 | 1.0 | 2355 | 1485 | 2570 |
| S11-1600/10 | 1.64 | 14.5 | 0.9 | 2335 | 1750 | 2630 |
Packing & Delivery
Packaging Details:
1, Wrapped with plastic film.
2, Fixed in a wooden case.
3, Wooden case on a pallet.
Delivery:
Will be deliveryed 10-20 days after payment according to the order quantities.
Our Company
Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
The company mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standard.
