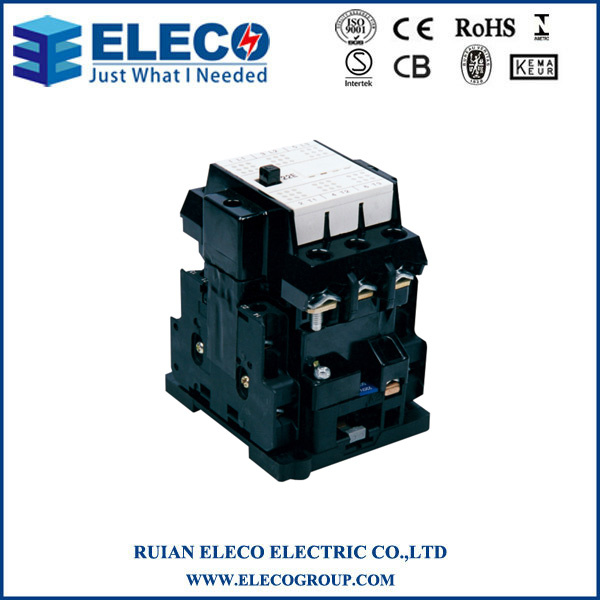

Hot Sale AC Contactor with Ce (E3TB Series)

Prod Model:	E3TB Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Electromagnetic Relay
Usage:	Car Relay, Household Appliances Relay
Protective Characteristics:	Sealed Relay
Load:	High Power Relay
Action Principle:	Electromagnetic Type
Size:	Normal

Product Description

Application
The contactor is suitable for using in the circuits up to the rated voltage 660VAC 50 Hz or 60Hz, rated current 630A, for making and breaking, and for frequent starting and controlling the motor. After combined with the mechanical interlocking device, it becomes 3TD series convertible contactor for Controlling, starting, breaking and reversing of the motor. The products comply with IEC947-2 & VDE0660.

Type	Rated thermal Current (A)	Rated operating current at 380V(A)	Rated operating current at 660V(A)	The power of con-trolled motor (KW)		Type of auxliliary contact
				380V	660V
P3TB40	22	9	7.2	4	5.5	1NO 1NC 1NO+1NC 2NO+2NC
P3TB41	22	12	9.5	5.5	7.5
P3TB42	35	16	13.5	7.5	11
P3TB43	35	22	13.5	11	11
P3TB44	55	32	18	15	15	2NC+2NO
