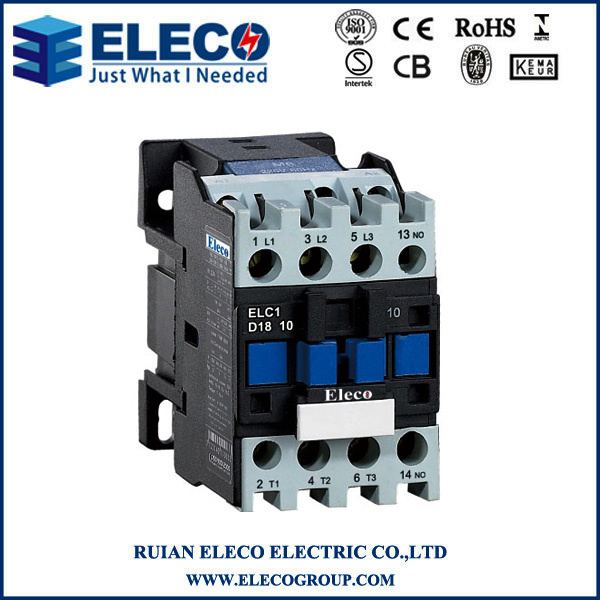

Hot Sale AC Contactor with IEC (ELC1-D/W Series)

Name: Hot Sale AC Contactor with IEC (ELC1-D/W Series)
Brand: all-electronics-online.com
SKU: 763806905
Availability: InStock
Rating: 4.9 (124 reviews)

Price:	NegotiablePieces
Trade Terms:	FOB,CFR,CIF
Min Order:	100Pieces
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELC1-D/W Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	D09, D12, D18, D25, D32
Rated Conventional Heating Current:	20, 32, 40, 50
Rated Insulation Voltage(V):	690
Matched Fuse Type:	Rt16-20, Rt16-32, Rt16-40
Theory:	Electromagnetic Relay
Usage:	Car Relay, Household Appliances Relay
Protective Characteristics:	Sealed Relay
Load:	High Power Relay
Action Principle:	Electromagnetic Type
Size:	Normal

Product Description

Application
ELC1-D/W series AC Contactor issuitable for using in the circuits up to the rated voltage 660V AC 50HZ or 60HZ, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor.Combined with the auxiliary contact block, timer delay & machine interlocking devece etc, it becomes the delay contactor, mechanical inter contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC/EN60947-4, VDE0660 & BS5452.

Specification
Type	220V 230V KW	380V 400V KW	660V 690V KW	200V 440V HP	240V 500V HP	460V HP	600V HP	AC-3 440V	NO	NC
ELC1-D0910/W	2.2	4	4	4	5.5	5.5	-	9	1 _	- 1
ELC1-D0901/W
ELC1-D1210/W	3	5.5	5.5	5.5	7.5	7.5	-	12	1 -	- 1
ELC1-D1201/W
ELC1-D1810/W	4	7.5	9	9	10	10	-	18	1 -	- 1
ELC1-D1801/W
ELC1-D2510/W	5.5	11	11	11	15	15	-	25	1 -	- 1
ELC1-D2501/W
ELC1-D3210/W	7.5	15	15	15	18.5	18.5	-	32	1 -	- 1
ELC1-D3201/W

Items Model						D09	D12	D18	D25	D32
Rated conventional heating current(A)AC-1						20	20	32	40	50
Rated insulation voltage(V)						690	690	690	690	690
Electric AC-3						1200	1200	1200	1200	1200
Operating frequency Life AC-4 (operations/h)						300	300	300	300	300
Mechanical life						3600	3600	3600	3600	3600
Electric life AC-3 (X 103 operations) AC-4						1000 200	1000 200	1000 200	1000 200	1000 200
Mechanical life(X 106 operations)						10	10	10	10	10
Matched fuse type						RT16-20	RT16-20	RT16-32	RT16-40	RT16-50

ELECO Electric is one of the most specialized manufacturers and exports for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Citcuit Breaker(MCB), Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO), Switch- disconnector, Distribution Box, Moulded case circuit breaker(MCCB), air circuit breaker(ACB), AC Contactor, Magnetic Starter, Motor Protection Circuit Breaker, Thermal Relay and K. W. H meter etc. The company takes the reputation as one of the largest manufacturer of electromagnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned intermational corporations for such projects.

Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
