Hot Sale CCTV Cable Rg59

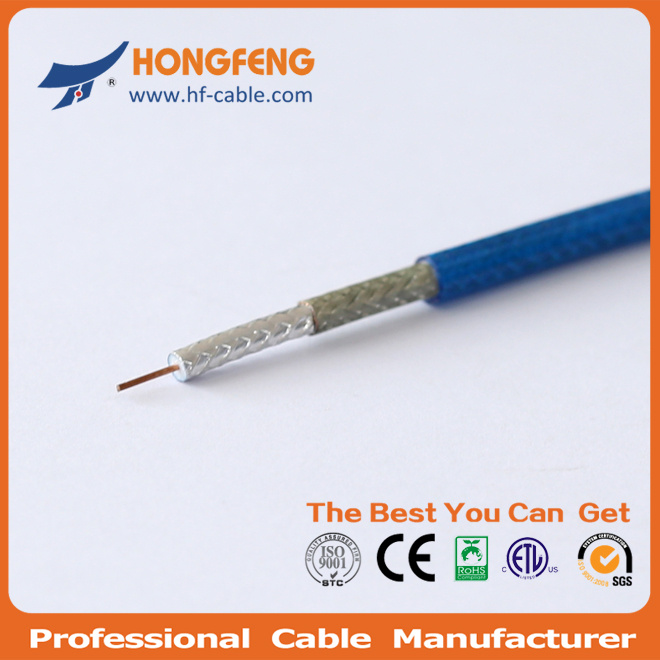

Name: Hot Sale CCTV Cable Rg59
Brand: all-electronics-online.com
SKU: 731793025
Availability: InStock
Rating: 4.3 (40 reviews)

Price:	US $ 0.1-10/Roll
Trade Terms:	FOB,CIF
Min Order:	10Kilometer
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG59
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Inner Conductor:	0.81mmccs/Cu
Dielectric:	3.66mmfpe
Frist Shield:	Al Foil
Second Shield:	Al/Bc Wire
Jacket:	6.1mmpvc
Inpedance:	75ohm
Jacket Color:	Any Color
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable

Product Description

Main Products:
1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: 412, 500, 540;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2c, RG6+LAN cable.
1, General Specifications
Model No.
HF-RG59
Application
Security / CCTV
Cable Type
Series 59
Jacket Color
Black
Center Conductor Gauge
20 AWG
Center Conductor Type
Solid
Packaging Type
Box 305 m (1000 ft)
Attenuation Performance [@68 ° F. (20 ° C)]
Frequency(MHz)Maximum (dB/100ft)Maximum (dB/100m)
50.862.82
551.956.39
2113.5911.77
2504.0013.11
3004.2714.00
3504.6415.21
4004.8816.00
4505.3017.38
5005.6018.36
5505.9019.34
6006.0519.84
7506.9622.82
8657.5024.59
10008.0926.52

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
