HUANGSHAN SAFETY ELECTRIC TECHNOLOGY CO., LTD. >> Hot Sale Cheap Cbb 65 Capacitor

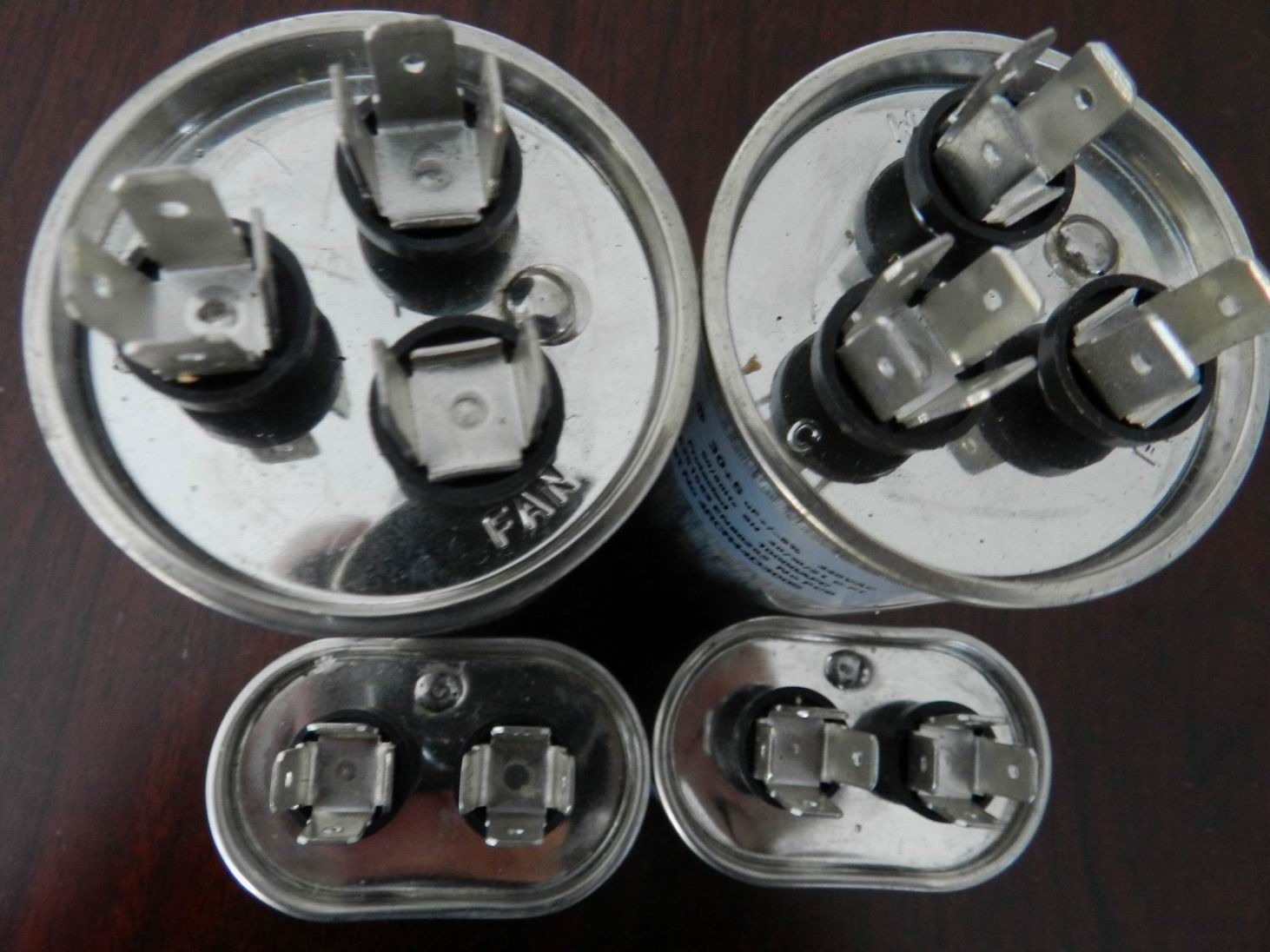

Hot Sale Cheap Cbb 65 Capacitor

Hot Sale Cheap Cbb 65 Capacitor
Price: US $ 0.55-3.5/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: cbb 65
Items: Cbb Series Motor Run and Start Capacitors
Certificate: UL ,Ce ,RoHS ,ISO9001 ,IEC60252
Warranty Time: 3years
Safety Grade: Explosion-Proof;P1 and P2 Grade
Service: OEM and ODM Service
Delivery Time: 2 Weeks
Type: Polypropylene Capacitor
Application: Air Conditioner
Package Type: Surface Mount
Capacitance: 1-100UF

Product Description

CBB65 Motor run and start capacitors ,
product specifications

Reference standard

GB/T3667, UL810 , EN60252

Climatic category

 40/70/21, 40/85/21

Rated voltage

200-500VAC

Capacitance range

3-100uF

Capacitance tolerance

±5%

Testing voltage terminals to terminals

2Un for 2 seconds

between terminals and case

2 UN+1,000(VAC)/ 60s(≥2,000VAC)

Insulation resistance: (20°C) between terminals

≥2000MΩ.μF (500Vdc,60s)

Tangent of loss angle

(20°C) ≤0.002 (100Hz)

Class of safety protection

P2/P1

Fault current

10,000AFC (UL810)






Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

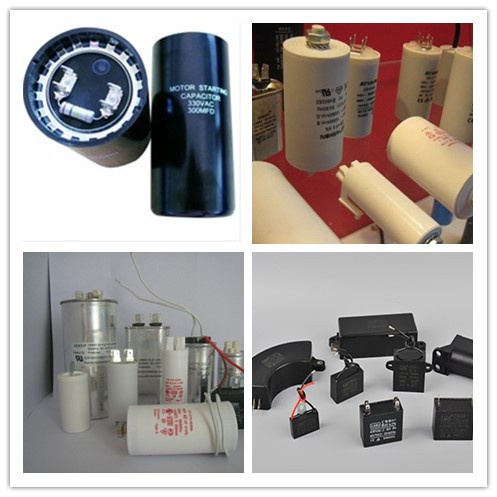

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
