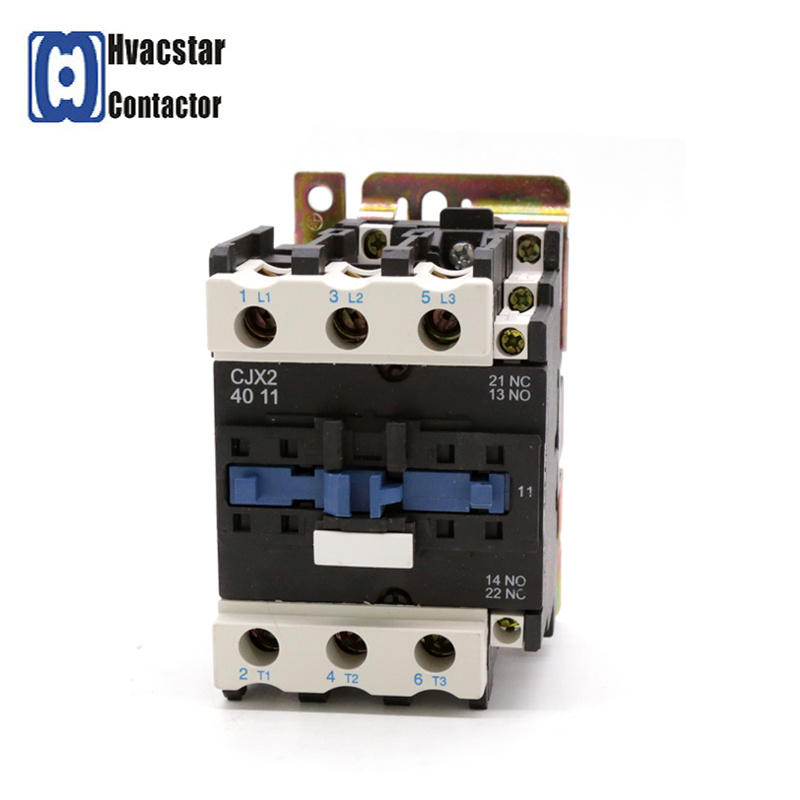

Hot Sale Dp Contactor for Air Conditioner 40A AC Contactor

Name: Hot Sale Dp Contactor for Air Conditioner 40A AC Contactor
Brand: all-electronics-online.com
SKU: 820119005
Availability: InStock
Rating: 4.6 (102 reviews)

Price:	US $ 2.7-3.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2-4011
Life Time(Mechanical):	10 Million Times
Application:	Refrigeration, Air Conditioning and Heating
Temparature:	-5°c~40°c
Color:	Black
Other Services:	ODM OEM

Product Description

About Us

Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Contactors  (including
DP Contactors,  LC1 series contactors ,  Founded in Mingguang City,China, in 2005,  stepped  into the  HVAC industry as  a reliable source .
Our  strongest domestic suppliers and our vast   experience  with  global  trading, allows  us to  bring  the
most   innovative  and highest  quality  products available to our customers.

Product introduction

CJX2 series AC Contactor is suitable for using the circuit up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting&controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter, With the thermal relay.

Product Specifications:

Type	Amax	Bmax	Cmax	a	b	Φ
CJX2-9	47	76	82	35	50	4.5
CJX2-12
CJX2-18			87		60
CJX2-25	57	86	95	40	50	4.5
CJX2-32			100		60
CJX2-40	77	129	116	40	105	6.5
CJX2-50
CJX2-65
CJX2-80	87	129	127	40	105	6.5
CJX2-95

Matching coil volts

Voltage volts

110

220

230

240

380

400

415

440

500

660

50HZ

60HZ

50/60HZ

Features:
Compact size, Light-weight, little power consumption, long service life, safe and reliable.

Power terminations options:
Lugs(standard)
SEMS clamp
Binding head screws
Quick connects

Replacement coils and contact kits are available
Standard: IEC60947-4, GB14048.4

FAQ
     Q1: Can I get a sample for testing?
           A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
       Q2: Can I print my logo on the products?
           A: Yes, OEM and ODM are available.
         Q3: How can I get the after-service?
          A: If quality problem happen we promise re-send the item .
       Q4: Do you have inspection procedures for products?
          A: Our products100% self-inspection and testing before packing.
         Q6: How about delivery time of the order?
          A: 15-20 days after getting deposit.
         Q7: How about payment terms?
          A:  30% deposit, the rest payment balance against B/L copy .
