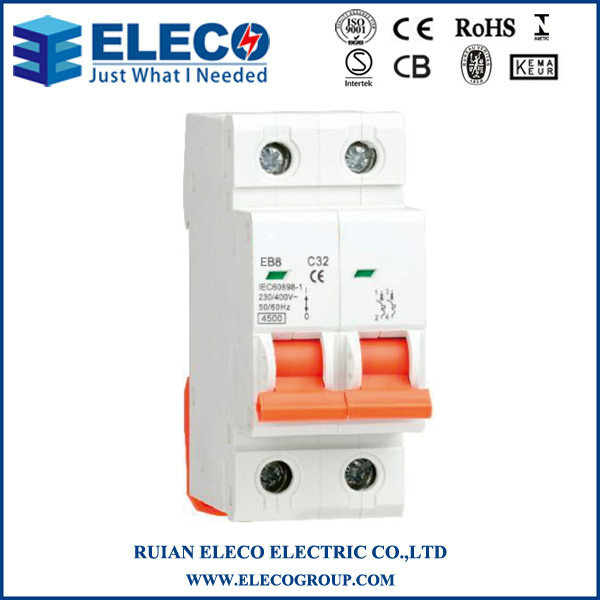

Hot Sale High Breaking Mini Circuit Breaker (EB8 Series)

Prod Model:	EB8 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	4.5/6ka
Rated Voltage (Un):	230VAC/400VAC
Rated Current In:	1,2,3,4,5,6,10,16,20,25,32,40,50,63A
Number Of Poles:	1p, 1p+N, 2p, 3p, 3p+N and 4p
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	Semko
Poles Number:	1p, 2p, 3p,4p

Product Description

Application
NB8 circuit breaker the new type we developed, which is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the system. The product is ncoteric in structure light in weight, reliable and excellent in performance. Its frame and parts adopt plastics of high fire resistant and shockproof. The product overload and short circuit protection, as well as for unfrequently switching on&of electric equipment and lighting circuit in normal case. The products comply with IEC60898.

Technical Data

Rated Current (In)	1,2,3,4,5,6,10,16,20,25,32,40,50,63A
Rated Voltage (Un)	230VAC/400VAC
Breaking Capacity	4.5/6kA
Characteristic	B,C,D
Number of Poles	1P,1P+N,2P,3P,3P+N,4P
Type of Terminal	Lug Type
Terminal Capacity	Cableup to 25mm2
Width	18mm/module
Standards	IEC60898,EN 60898
Certification	CB,SEMKO

About us
ELECO Electric is one of the most specialized manufacturers and exporters for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Circuit Breaker(MCB),Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO),Switch -disconnector,Distribution Box, Moulded case circuit breaker(MCCB), air circuit breake (ACB), AC Contactor,Magnetic Dtarter, Motor Protection Circuit Breaker, Thermal Relay and K.W.H meter etc.The company takes the reputation as one of the largest manuafacturer of electro-magnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned international corporations for such projects.
Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
