| Prod Model: |
86HSE8N-BC38 |
| Step Angle: |
1.8 |
| Frame Size: |
86mm X 86mm |
| Current: |
6.0A |
| Resistance: |
0.44 |
| Inductance: |
3.7mh |
| Holding Torque: |
80kg.Cm |
| Motor Body Length: |
118mm |
| Lead Wires: |
4 |
| Encoder Resolution: |
1000PPR |
| Weight: |
4.0kg |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Operate Mode: |
Driver |
| Certification: |
Ce |
| Brand: |
Jss |

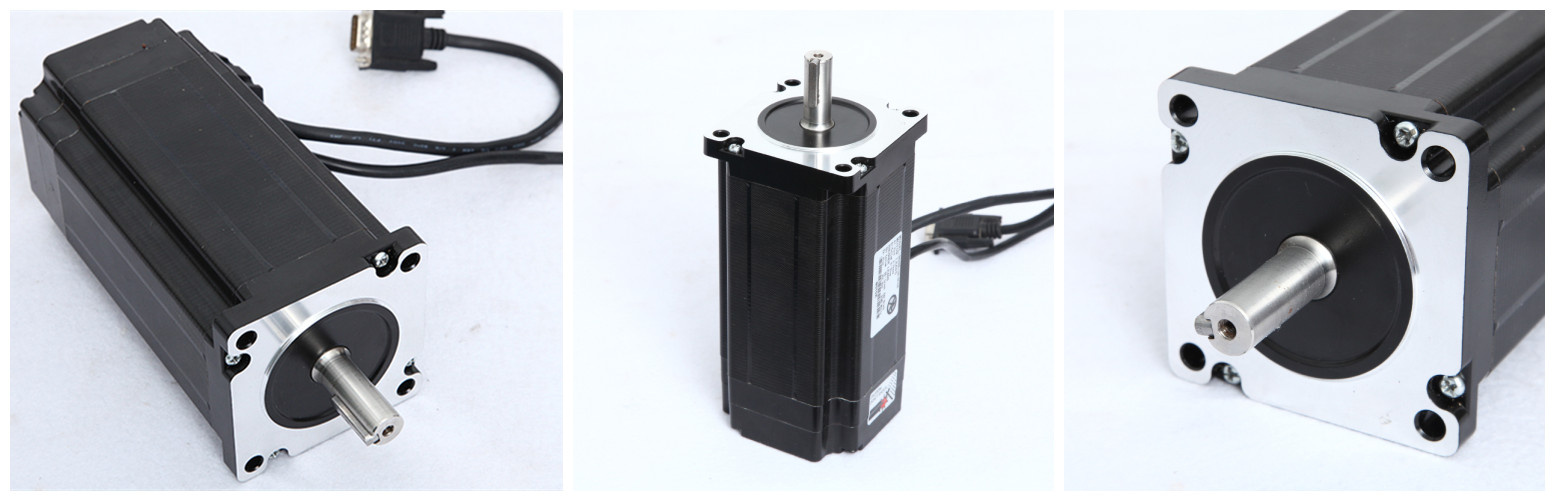

Product Description

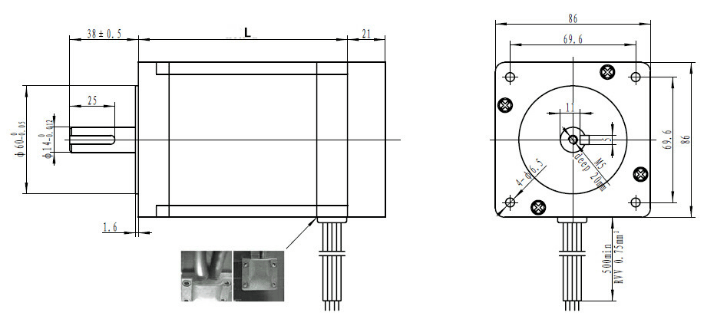

Motor Electrical Parameters
| Mode | Step angle | Current (A) | Resistance (Ω±10%) | Inductance
(mH±20%) | Holding torque (N.m) | Motor length(mm) | Encoder Resolution (PPR) | Weight (kg) |
| 86HSE4N-BC38 | 1.8° | 6.0 | 0.45 | 3.7 | 4.5 | 82 | 1000 | 2.65 |
| 86HSE8N-BC38 | 1.8° | 6.0 | 0.44 | 3.7 | 8.0 | 118 | 1000 | 4.0 |
| 86HSE12N-BC38 | 1.8° | 6.0 | 0.45 | 5.2 | 12.0 | 156 | 1000 | 5.65 |

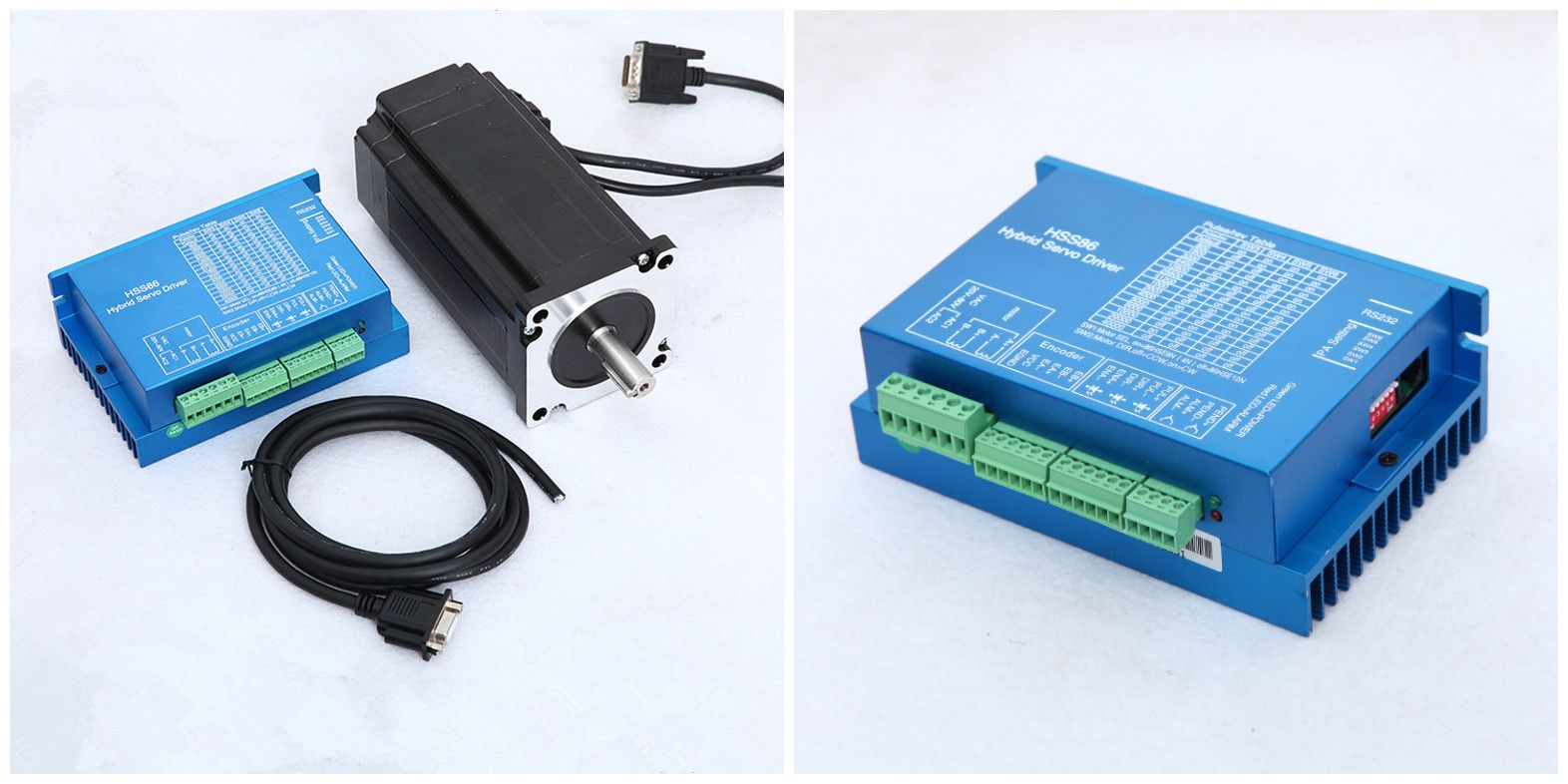

Close Loop Driver HSS86
Features
1. Position error correction and never lose steps.
2. Quick response and perfect acceleration, high torque at high speed.
3. Automatic current adjustment based on load, lower temperature rising
4. Over-current, over-voltage and position ultra difference protection function
5. Pulses response frequency can reach 200KHZ
6. 16 kinds microsteps choice, highest 51200 microsteps/rev.
7. Drive Nema 34 series4.5N.m,8N.m, 12N.m closed loop stepper motor
8. Voltage range: AC20-80V, DC30-110V
Microstep Selection:
Micorstep/rev | SW3 | SW4 | SW5 | SW6 |
Default(400) | on | on | on | on |
800 | off | on | on | on |
1600 | on | off | on | on |
3200 | off | off | on | on |
6400 | on | on | off | on |
12800 | off | on | off | on |
25600 | on | off | off | on |
51200 | off | off | off | on |
1000 | on | on | on | off |
2000 | off | on | on | off |
4000 | on | off | on | off |
5000 | off | off | on | off |
8000 | on | on | off | off |
10000 | off | on | off | off |
20000 | on | off | off | off |
40000 | off | off | off | off |

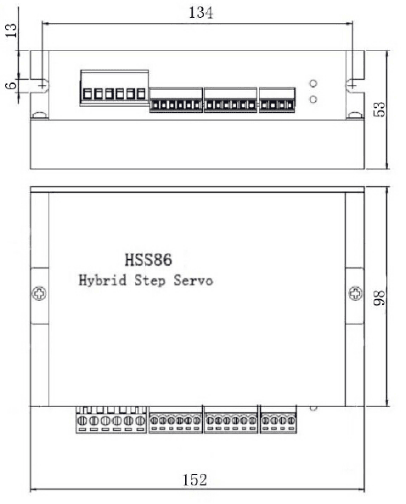

Driver Dimension

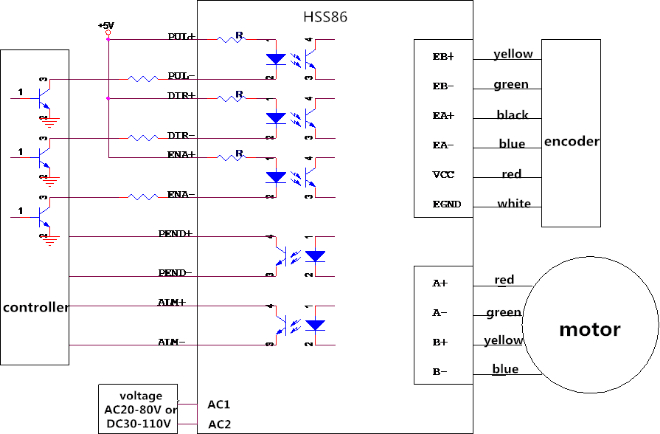

Wiring Diagram
Our main products
1. Hybrid stepper motor
(from size nema 8, nema 11, nema 14, nema 16, nema 17, nema 23, nema 24, nema 34, nema 42, nema 52)
( variable closed loop stepper motor, gear reducer stepper motor, linear stepper motor, brake stepper motor)
2. Stepper drivers, controller board and power supply
3. Servo motor and driver
4. Spindle motor and other accessories
5. Brushless dc motor
6. We can also help you to purchase other parts you need
Application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain, security surveillance and other industrial automatic equipment.
Our company:
Changzhou Jinsanshi Mechatronics Co.,Ltd, located in Changzhou city, Jisangsu Province, China, is a comprehensive company which has been specialized in the field of stepper motors, drivers, spindle motors, as servo motors and BLDC motors for several years.
Now we have an excellent group with rich experience in manufacturing and researching. And we have a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008.
If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!
