Hot Sale Injection Machine Linear Position Sensor

Name: Hot Sale Injection Machine Linear Position Sensor
Brand: all-electronics-online.com
SKU: 820736435
Availability: InStock
Rating: 4.8 (140 reviews)

Price:	US $ 98-118/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KPM
Working Scale:	25-300mm
Working Temperature:	-40~120
Max Voltage:	42V
Repeatability:	0.01mm
Working Speed:	5m/S Max
Material:	Aluminum Alloy

Product Description

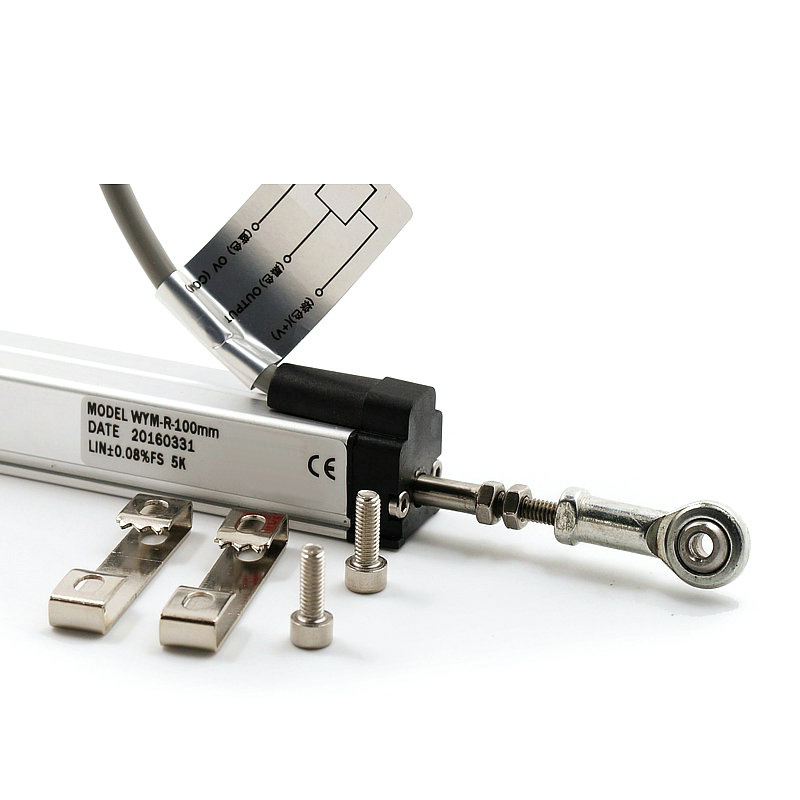

Hot Sale Injection Machine Linear Position Sensor

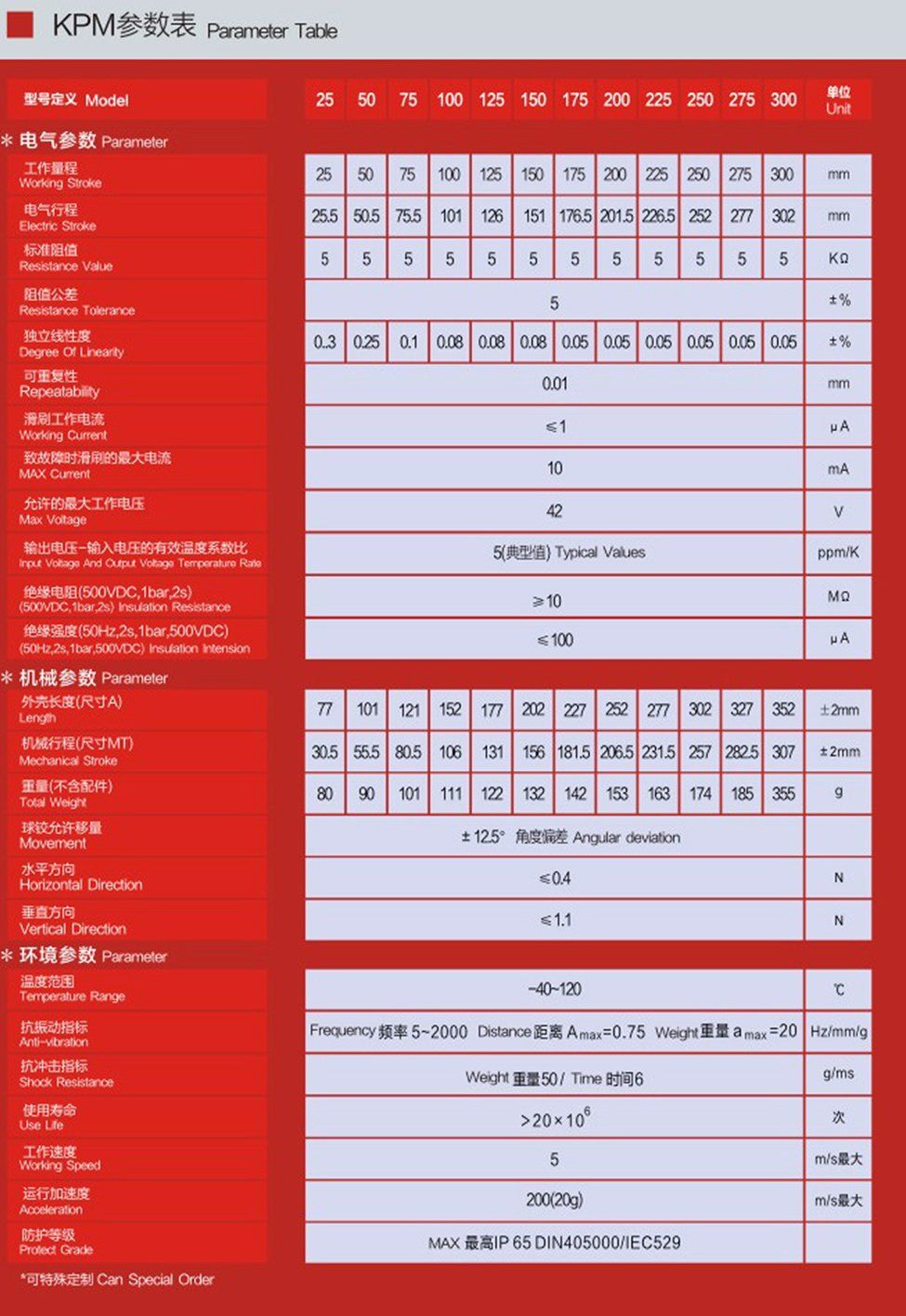

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	5	≤1	25-300	-40~120	≤0.4	≤1.1

Product feature:

Volume smaller
Usage life is longer, Times could reach fifty million
Resolution rate is higher than 0.01mm
Could use in all kinds of worse environment(humid, oily, dusty)
Protection grate is ip65
Eye ball joint, could move with big angle
Could equip with voltage and current(2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.
Package:

KPM is a mini articulated structure, suitable for small installations, an ontology cannot be fixed, moving swing position detection, neutral without any requirements for installation. Such as: Android, fetching machine, brick, ceramic machine, sluice

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
