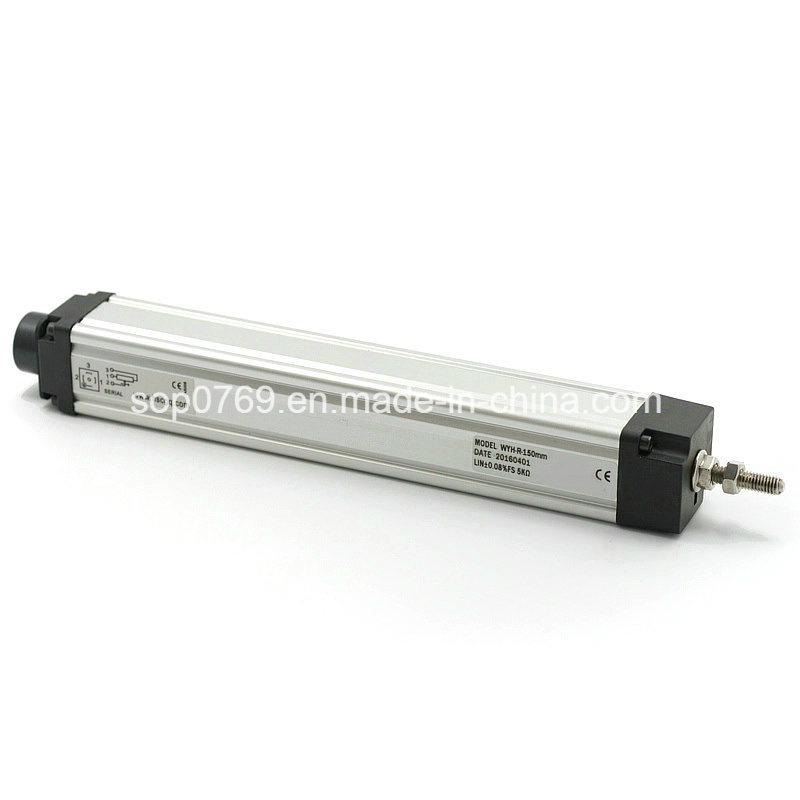

Hot Sale Linear Excellent Bar Line Sensor Displacement Sensor

Name: Hot Sale Linear Excellent Bar Line Sensor Displacement Sensor
Brand: all-electronics-online.com
SKU: 820089895
Availability: InStock
Rating: 5 (92 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LWH
Feature:	Linear Excellent
Working Stroke:	75-1250mm
Repeatability:	0.01mm
Warranty:	12months
Material:	Aluminum Alloy

Product Description

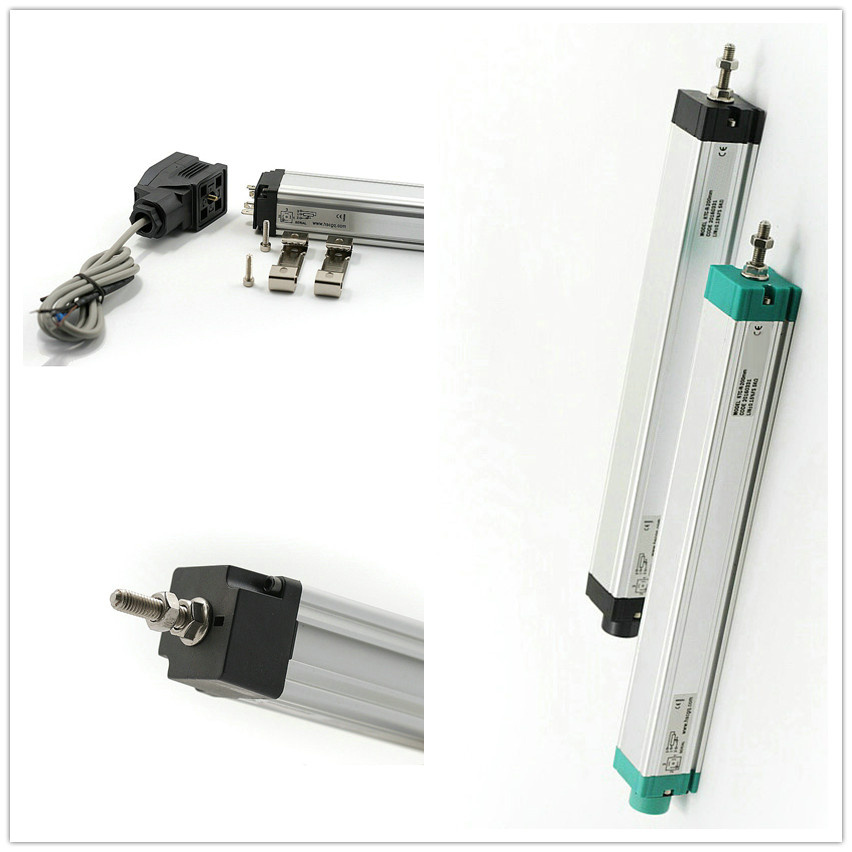

Hot sale Linear Excellent Bar line Sensor displacement Sensor

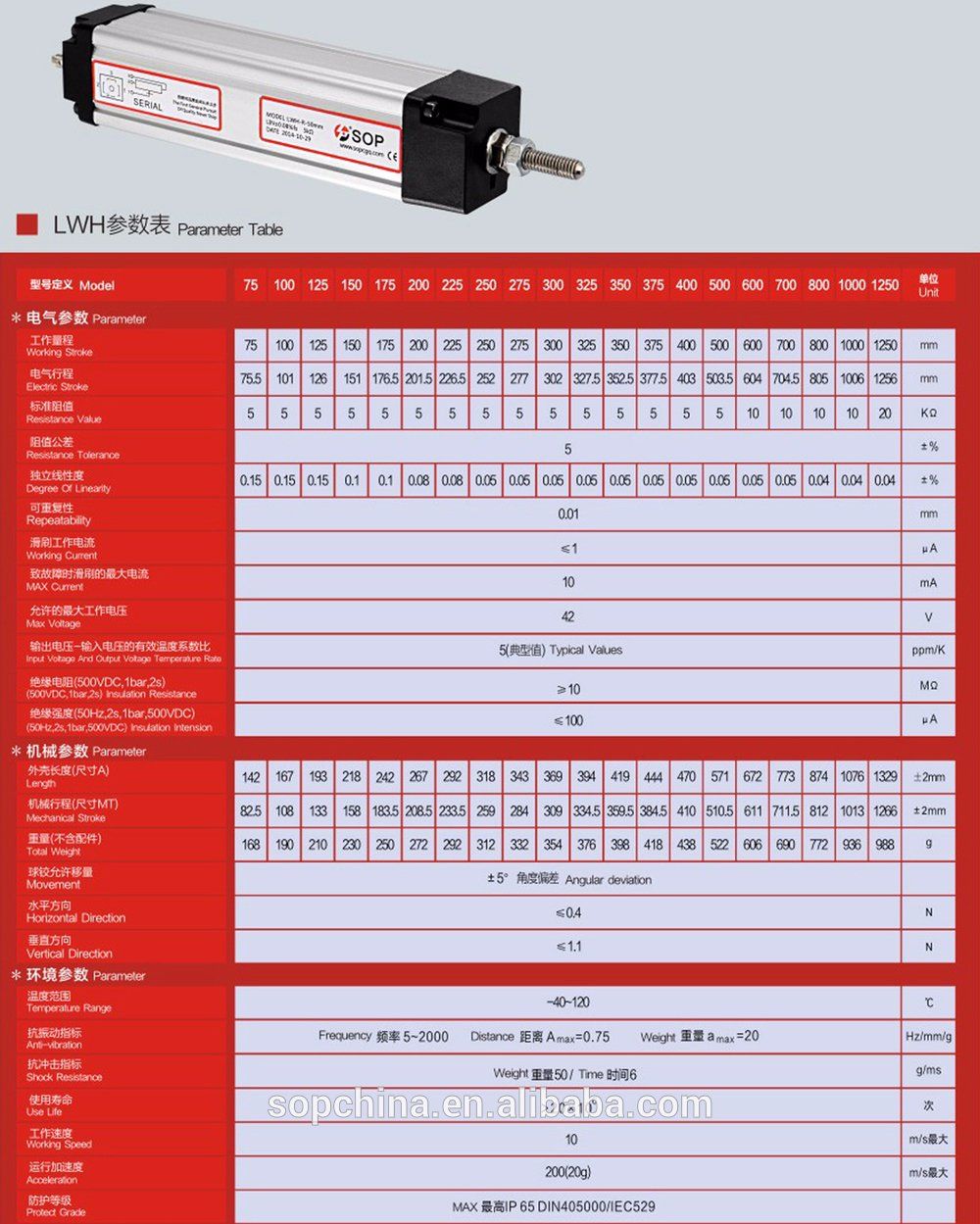

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	10	≤1	75-1250	-40~120	≤0.4	≤1.1

Product Feature:

Usage life is longer, Times could reach fifty million
Linear excellent
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65
Could equip with voltage and current (2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

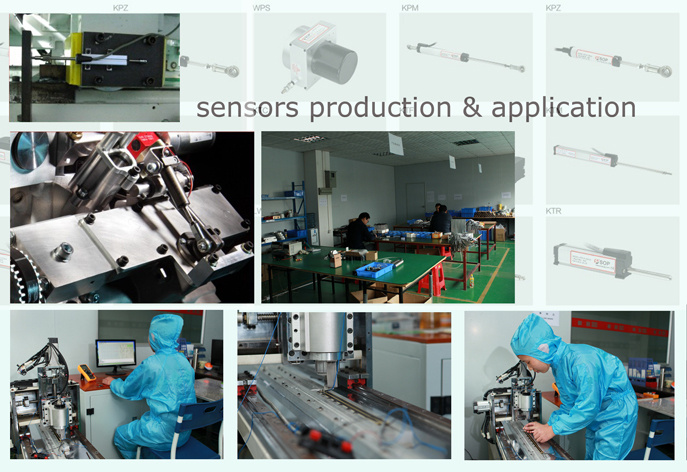

KTC is a versatile, suitable for various types of equipment to detect the position, such as: injection molding machines, die-casting machines, rubber injection machines, shoes, EVA injection machine, woodworking machine, hydraulic machine

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
