| Prod Model: |
JYT-TK102B |
| Frequency: |
850/900/180/1900MHz |
| Battery: |
1100mAh |
| Network: |
GSM/GPRS |
| Type: |
GPS Tracker |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Integration Type |
| Carrier Frequency: |
Dual-Frequency |
| Use: |
Mini GPS Tracker |
| Operating Principle: |
Pet GPS Tracker |
| Screen Size: |
No Screen |
| Chip: |
Ublox |
| Brand: |
OEM/Jyt |
| Certification: |
Ce, RoHS |

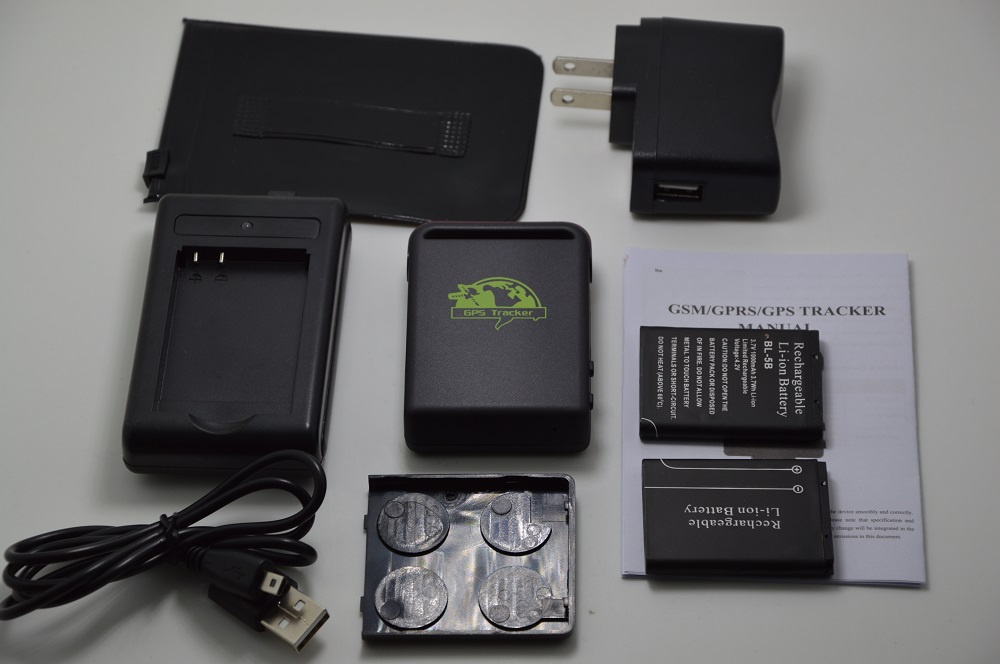

Product Description
This product is based on the GSM/GPS network and GPS satellite positioning system, through the short message or the Internet to locate or monitor the remote target
Application areas:
Car rental/small fleet management.
Strong magnet + waterproof bag, can be adsorbed on the car hidden tracking
Children/the elderly/disabled/pet care
Personal safety
Personnel management
Product advantages:
1, Strong magnet and waterproof bag, can be adsorbed on the car in real time tracking
2, Multi ways to implement tracking: free monitoring center software, covering the global map, computer real-time tracking; mobile phone query map, earth Google tracking
3, Power saving mode
4, Small cubage, size: 46*64*17mm (1.8*2.5*0.65 inches) weight of 40 grams, integrated design (built-in antenna and battery), easy to hide, easy to carry
5, Supports for non-positioning server conditions for positioning: can query the longitude/latitude/time/speed, use of public map software, through the manual input latitude and longitude can query real-time location information
6, If you are searching for a target to enter the underground parking lot or other GPS blind area, the tracker will report to you the final location of the target location information
7, Timing tracking function
8, Authorization number to add/delete function
9, With hidden alarm function
10, Electronic fence, can be set a fixed area, beyond the fixed area it will alarm
11, Shift alarm: when the tracker stopped fortification it can be carried out, once shift, tracker will alarm to the authorized number
12, Speeding alarm: can be set to monitor the target at a certain speed, more than the speed will call the police
13, Bottom electric alarm function
Optional features:
1, Vibration alarm
2, Electronic lock: if tracker is removed by target, it will automatically send alarm information to the authorization number
3, Car anti-theft: remote off oil and power
Technical parameters:
1, GPS chip: UBLOX chip
2, Channel number: parallel 20 links
3, Sensitivity: -159dBm
4, Precision: 5 meters
5, Positioning time: cold start/hot start time 35/ seconds
6, Car charger (12V input, 5V output), charger (110 220V input, 5V output)
7, Rechargeable/replaceable Lithium battery.
