Hot Sale Ms Series Electrical Motor with B5 Mounting
Price: |
US $ 15-350/Piece |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
MS SERIES |
Application: |
Power Tools |
Operating Speed: |
Constant Speed |
Number Of Stator: |
Three-Phase |
Rotor Structure: |
Squirrel-Cage |
Casing Protection: |
Closed Type |
Starting Mode: |
Auto-induction Voltage-reduced Starting |
Brand: |
Dongfeng or OEM |
Species: |
Ms |
Certification: |
Ce |
Number Of Poles: |
2/4/6/8 |

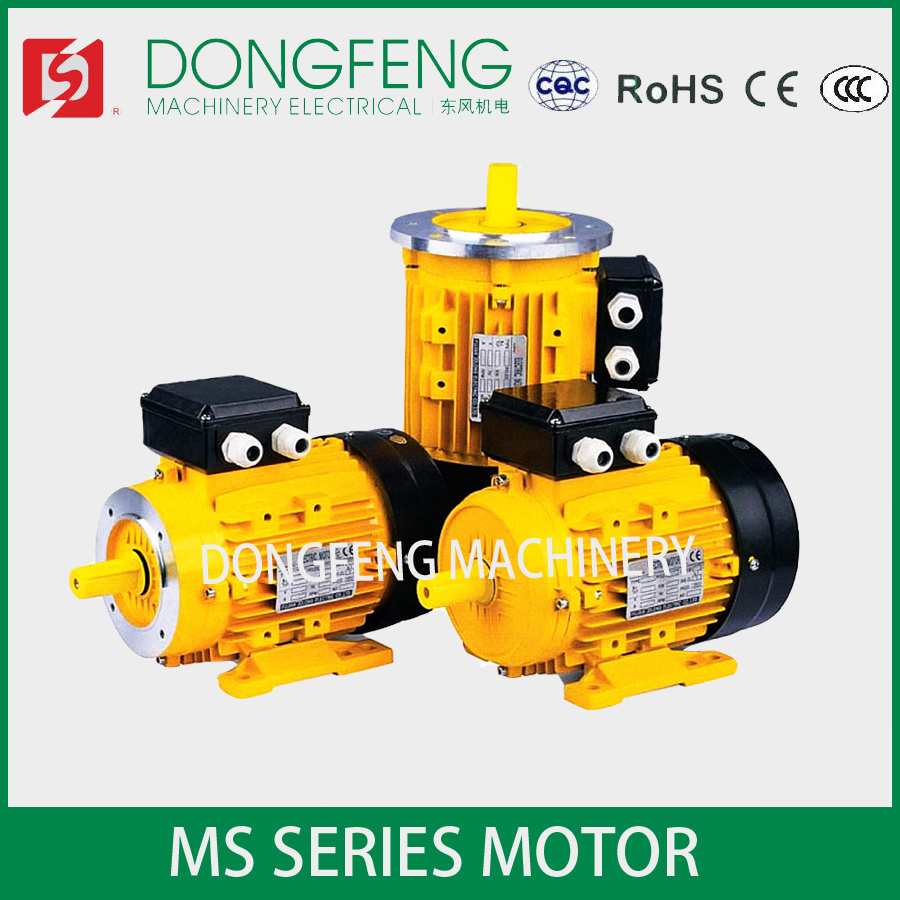

Product Description

INTRODUCTION MS series aluminum housing three phase asynchronous motor, with the latest design in entirety, is made of quality materials and conformed to IEC standard. It can be used for general drive. Features: low noise,slight vibration,light weight,simple construction,good appearance and etc. Applications: air-compressor, pump,blower, medical apparatus and instruments, small machines, etc.RANGE OF PERFORMANCEFrame Size: H80-H160Rated Power Range: 0.75 KW ~ 18.5 KW OPERATING CONDITIONSAmbient Temperature: -15ºC≤ θ ≤ 40ºCAbove Sea Level: not exceed 1000mRated Voltage: 380V, 220V~760V is availableRated Frequency: 50Hz or 60HzInsulation Class: Class B/F/HProtection Class: IP54/55/56Duty:S1Technical Data
TYPE | Output | Current (A) | Speed | Eff. | Power Factor | Ist/In | Tstart/Tn | Tmax/Tn |
KW | HP | 380V | 400V | r/min | % |
MSE1-561-2 | 0.09 | 0.12 | 0.29 | 0.28 | 2700 | 61 | 0.77 | 6 | 2.2 | 2.2 |
MSE1-562-2 | 0.12 | 0.16 | 0.37 | 0.35 | 2700 | 63 | 0.78 | 6 | 2.2 | 2.2 |
MSE1-631-2 | 0.18 | 0.25 | 0.53 | 0.50 | 2720 | 65 | 0.8 | 6.5 | 2.2 | 2.2 |
MSE1-632-2 | 0.25 | 0.34 | 0.69 | 0.66 | 2720 | 68 | 0.81 | 6.5 | 2.2 | 2.2 |
MSE1-711-2 | 0.37 | 0.5 | 0.99 | 0.94 | 2740 | 70 | 0.81 | 7 | 2.2 | 2.2 |
MSE1-712-2 | 0.55 | 0.75 | 1.40 | 1.33 | 2740 | 73 | 0.82 | 7 | 2.2 | 2.3 |
MSE1-801-2 | 0.75 | 1 | 1.81 | 1.72 | 2900 | 76 | 0.83 | 7.5 | 2.2 | 2.3 |
MSE1-802-2 | 1.1 | 1.5 | 2.55 | 2.42 | 2900 | 78 | 0.84 | 7.9 | 2.2 | 2.3 |
MSE1-90S-2 | 1.5 | 2 | 3.43 | 3.26 | 2840 | 79 | 0.84 | 7.9 | 2.2 | 2.3 |
MSE1-90L-2 | 2.2 | 3 | 4.30 | 4.09 | 2840 | 91.4 | 0.85 | 7.9 | 2.2 | 2.3 |
MSE1-100L-2 | 3 | 4 | 5.63 | 5.35 | 2870 | 93.1 | 0.87 | 8.1 | 2.2 | 2.3 |
MSE1-112M-2 | 4 | 5.5 | 7.32 | 6.96 | 2880 | 94.3 | 0.88 | 8.1 | 2.2 | 2.3 |
MSE1-132S1-2 | 5.5 | 7.5 | 9.91 | 9.42 | 2900 | 95.8 | 0.88 | 8.1 | 2.2 | 2.3 |
MSE1-132S2-2 | 7.5 | 10 | 14.83 | 14.09 | 2900 | 87.3 | 0.88 | 8.1 | 2.2 | 2.3 |
MSE1-160M1-2 | 11 | 15 | 21.19 | 20.13 | 2940 | 88.6 | 0.89 | 8.1 | 2.2 | 2.3 |
MSE1-160M2-2 | 15 | 20 | 28.45 | 27.03 | 2940 | 90 | 0.89 | 8.1 | 2.2 | 2.3 |
MSE1-160L-2 | 18.5 | 25 | 34.51 | 32.78 | 2940 | 90.5 | 0.9 | 8.1 | 2.2 | 2.3 |
MSE1-561-4 | 0.06 | 0.08 | 0.25 | 0.23 | 1300 | 53 | 0.7 | 5.2 | 2.1 | 2.2 |
MSE1-562-4 | 0.09 | 0.12 | 0.34 | 0.32 | 1300 | 57 | 0.71 | 5.2 | 2.1 | 2.2 |
MSE1-631-4 | 0.12 | 0.16 | 0.42 | 0.40 | 1310 | 60 | 0.72 | 5.2 | 2.4 | 2.2 |
MSE1-632-4 | 0.18 | 0.25 | 0.58 | 0.55 | 1310 | 65 | 0.73 | 5.2 | 2.4 | 2.2 |
MSE1-711-4 | 0.25 | 0.34 | 0.73 | 0.70 | 1330 | 70 | 0.74 | 5.2 | 2.4 | 2.2 |
MSE1-712-4 | 0.37 | 0.5 | 1.07 | 1.02 | 1330 | 71 | 0.74 | 5.2 | 2.4 | 2.2 |
MSE1-801-4 | 0.55 | 0.75 | 1.49 | 1.41 | 1440 | 75 | 0.75 | 5.7 | 2.4 | 2.3 |
MSE1-802-4 | 0.75 | 1 | 1.98 | 1.88 | 1440 | 74.6 | 0.77 | 6.5 | 2.3 | 2.3 |
MSE1-90S-4 | 1.1 | 1.5 | 2.85 | 2.71 | 1400 | 76.2 | 0.77 | 6.5 | 2.3 | 2.3 |
MSE1-90L-4 | 1.5 | 2 | 3.67 | 3.49 | 1400 | 78.5 | 0.79 | 6.5 | 2.3 | 2.3 |
MSE1-100L1-4 | 2.2 | 3 | 5.06 | 4.81 | 1430 | 81.5 | 0.81 | 7.5 | 2.3 | 2.3 |
MSE1-100L2-4 | 3 | 4 | 6.73 | 6.39 | 1430 | 82.6 | 0.82 | 7.5 | 2.3 | 2.3 |
MSE1-112M-4 | 4 | 5.5 | 8.78 | 8.34 | 1435 | 84.4 | 0.82 | 7.5 | 2.3 | 2.3 |
MSE1-132S-4 | 5.5 | 7.5 | 11.61 | 11.03 | 1440 | 86.7 | 0.83 | 7.5 | 2.3 | 2.3 |
MSE1-132M-4 | 7.5 | 10 | 15.42 | 14.64 | 1440 | 88 | 0.84 | 7.5 | 2.3 | 2.3 |
MSE1-160M-4 | 11 | 15 | 22.46 | 21.33 | 1470 | 88.6 | 0.84 | 8.9 | 2.2 | 2.3 |
MSE1-160L-4 | 15 | 20 | 29.76 | 28.27 | 1470 | 90.1 | 0.85 | 8.9 | 2.2 | 2.3 |
MSE1-711-6 | 0.18 | 0.25 | 0.74 | 0.70 | 850 | 56 | 0.66 | 4 | 1.9 | 2 |
MSE1-712-6 | 0.25 | 0.34 | 0.95 | 0.90 | 850 | 59 | 0.68 | 4 | 1.9 | 2 |
MSE1-801-6 | 0.37 | 0.5 | 1.30 | 1.23 | 890 | 62 | 0.7 | 4.7 | 1.9 | 2 |
MSE1-802-6 | 0.55 | 0.75 | 1.79 | 1.70 | 890 | 65 | 0.72 | 4.7 | 1.9 | 2 |
MSE1-90S-6 | 0.75 | 1 | 2.18 | 2.07 | 910 | 72.7 | 0.72 | 5.9 | 2 | 2.1 |
MSE1-90L-6 | 1.1 | 1.5 | 3.04 | 2.88 | 910 | 75.4 | 0.73 | 5.9 | 2 | 2.1 |
MSE1-100L-6 | 1.5 | 2 | 3.92 | 3.72 | 940 | 77.5 | 0.75 | 5.9 | 2 | 2.1 |
MSE1-112M-6 | 2.2 | 3 | 5.50 | 5.23 | 940 | 79.9 | 0.76 | 6.9 | 2 | 2.1 |
MSE1-132S-6 | 3 | 4 | 7.35 | 6.98 | 960 | 81.6 | 0.76 | 6.9 | 2.1 | 2.1 |
MSE1-132M1-6 | 4 | 5.5 | 9.60 | 9.12 | 960 | 83.3 | 0.76 | 6.9 | 2.1 | 2.1 |
MSE1-132M2-6 | 5.5 | 7.5 | 12.77 | 12.13 | 960 | 85 | 0.77 | 6.9 | 2.1 | 2.1 |
MSE1-160M-6 | 7.5 | 10 | 17.11 | 16.25 | 970 | 86.5 | 0.77 | 6.9 | 2 | 2.1 |
MSE1-160L-6 | 11 | 15 | 24.38 | 23.16 | 970 | 87.9 | 0.78 | 6.9 | 2 | 2.1 |
MSE1-801-8 | 0.18 | 0.25 | 0.82 | 0.77 | 640 | 55 | 0.61 | 4.2 | 1.8 | 1.9 |
MSE1-802-8 | 0.25 | 0.34 | 1.07 | 1.02 | 640 | 58 | 0.61 | 4.2 | 1.8 | 1.9 |
MSE1-90S-8 | 0.37 | 0.5 | 1.44 | 1.37 | 660 | 64 | 0.61 | 4.5 | 1.8 | 1.9 |
MSE1-90L-8 | 0.55 | 0.75 | 2.04 | 1.94 | 660 | 67 | 0.61 | 4.5 | 1.8 | 2 |
MSE1-100L1-8 | 0.75 | 1 | 2.40 | 2.28 | 690 | 71 | 0.67 | 5.5 | 1.8 | 2 |
MSE1-100L2-8 | 1.1 | 1.5 | 3.42 | 3.25 | 690 | 73 | 0.67 | 5.5 | 1.8 | 2 |
MSE1-112M-8 | 1.5 | 2 | 4.40 | 4.18 | 690 | 75 | 0.69 | 5.5 | 1.8 | 2 |
MSE1-132S-8 | 2.2 | 3 | 6.04 | 5.73 | 710 | 78 | 0.71 | 6.9 | 1.8 | 2 |
MSE1-132M-8 | 3 | 4 | 7.82 | 7.43 | 710 | 79.8 | 0.73 | 6.9 | 1.8 | 2 |
MSE1-160M1-8 | 4 | 5.5 | 10.19 | 9.68 | 720 | 81.7 | 0.73 | 6.9 | 1.9 | 2 |
MSE1-160M2-8 | 5.5 | 7.5 | 13.54 | 12.86 | 720 | 83.4 | 0.74 | 6.9 | 2 | 2 |
MSE1-160L-8 | 7.5 | 10 | 17.77 | 16.88 | 720 | 85.5 | 0.75 | 6.9 | 2 | 2 |


Since 1993, Fujian Dongfeng Machinery Electrical Liability Co., Ltd., as a professional electric motor manufacturer, has won a good reputation in the domestic and international market. We specialize in more than 20 series of electric motors based on the IEC standard, GOST standard and the IE1, IE2, IE3 efficiency request. By complying the strict quality control system, we have obtained the I S O 9 0 0 1 certificate, CE, CCC, RoHS certificates and etc. In order to improve the quality of our products and better control the cost in manufacturing, we produce the main spare parts of motors by ourselves, such as motor housing, lamination sheets, stator and rotor sets. And these parts are for exporting as well. Meanwhile, we have established a strong team with professional managing and marketing members, cooperating with experienced technicians to ensure the effective production and services (including OEM and ODM). With the efforts of our team, our monthly output has increase to 20, 000PCS at present. We never expect one-time business; We always look for the stable and long-term partnerships based on the mutual trust, good understanding and the continual support in each other. For more information, welcome to contact us, we will make every effort to be your best partner!
