Hot Sale Residual Current Operated Circuit Breaker (MGL Series)

Name: Hot Sale Residual Current Operated Circuit Breaker (MGL Series)
Brand: all-electronics-online.com
SKU: 758916865
Availability: InStock
Rating: 4.9 (105 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MGL Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
According To Standard:	IEC61009-1
Rated Current ,in:	3,6,10,16,20,25,32,40A
Rated Sensitiviy Currents:	30,100,300mA
Type Of Trip Ground Fault:	Electro-Magnetic
Type Of Trip Overcurrent:	Thermal-Magnetic
Capacity:	4.5ka
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Certification:	CCC
Poles Number:	1p+N
Function:	Ground Falt and Overcurrent

Product Description

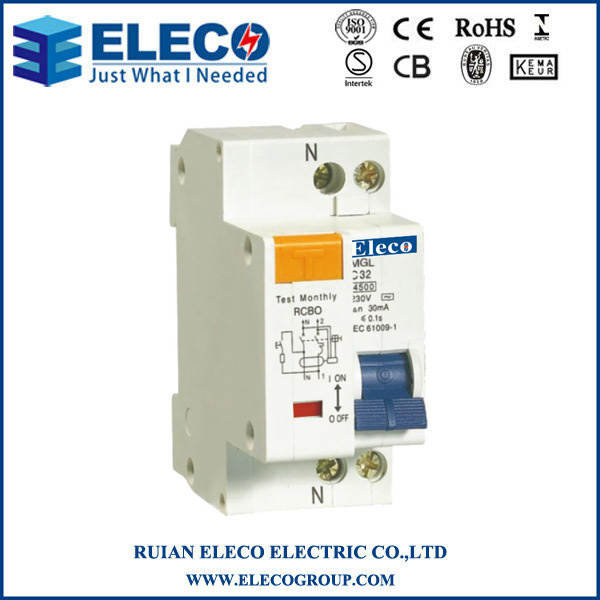

The MGL Series leakage protective breaker, (phase wire+neutral wire+leakage

+overload voltage) protective breaker is used in the single phase residence circuit of AC.50Hz/60Hz,

rated voltage 220V, used as electron shock protection. It can protect civil electron circuit from

overload and short-circuit. This product has advantages of small volume, high breaking capacity

zero, and live wires are cutted off at the same time, also protecting person from electric shock

when the livewire connected opposite.

According to Standard	IEC61009-1
Rated Current ,in	3,6,10,16,20,25,32,40A
Rated Sensitiviy Currents	30,100,300mA
Type of Trip Ground Fault	Electro-Magnetic
Type of Trip Overcurrent	Thermal-Magnetic
Capacity	4.5ka

About us
ELECO Electric is one of the most specialized manufacturers and exporters for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Circuit Breaker(MCB),Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO),Switch -disconnector,Distribution Box, Moulded case circuit breaker(MCCB), air circuit breake (ACB), AC Contactor,Magnetic Dtarter, Motor Protection Circuit Breaker, Thermal Relay and K.W.H meter etc.The company takes the reputation as one of the largest manuafacturer of electro-magnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned international corporations for such projects.
Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.

ELECO Electric is one of the most specialized manufacturers and exports for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Citcuit Breaker(MCB), Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO), Switch- disconnector, Distribution Box, Moulded case circuit breaker(MCCB), air circuit breaker(ACB), AC Contactor, Magnetic Starter, Motor Protection Circuit Breaker, Thermal Relay and K. W. H meter etc. The company takes the reputation as one of the largest manufacturer of electromagnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned intermational corporations for such projects.

Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
