| Prod Model: |
flexible electrical cable |
| Color: |
Yellow/Green, Red, Blue(Customized) |
| Size: |
0.75, 1.0, 1.5, 2.5, 4, 6, 10 |
| Conductor Class: |
Calss 1, Class2, Class 5, Class6 |
| Voltage: |
300/300V 300/500V 450/750V |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Building Cabling Wire |
| Conductor Material: |
Copper |
| Insulation Material: |
PE |
| Certification: |
RoHS |
| Brand: |
Customized or Szadp |
Product Description

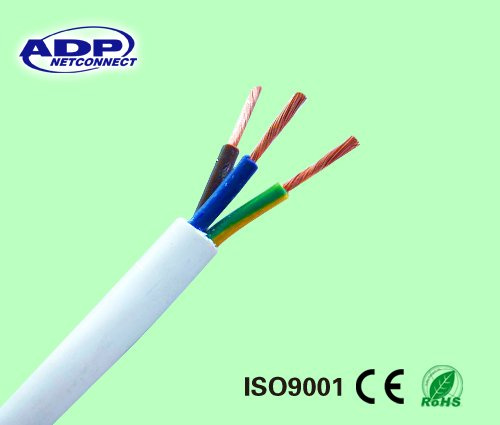

Hot Sale Single / Multi Cores Copper Conductor Flexible Electrical Cable
PRODUCTS DESCRIPTION:
Max. permissible continuous operating temperature of the conductor: 70ºC
The ambient temperature under installation should not below 0ºC.
Impedance (ohms): 100±2ohm
* Application
The products is suitable for use in power installations, fixed wiring or flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less
* Model and Name
| Model | Name |
| BV | Copper Core PVC Insulation Wire |
| BLV | Aluminum Core PVC Insulation Wire |
| BVR | Copper Core PVC Insulation Flexible Wire |
| BVV | Copper Core PVC Insulation PVC Sheath Round Wire |
| BVVB | Copper Core PVC Insulation PVC Sheath Flat Wire |
| BLVVB | Aluminum Core PVC Insulation PVC Sheath Flat Wire |
| BV-90 | Copper Core Heat-resistance 105ºC PVC Insulation |
Products list and parameter:
| No. | Size | Specification | Length per roll |
| PVC insulated non-sheathed copper wires BV (450-750 Voltage) |
| 1 | 1.5 mm2 | 1×1.38 mm2 | 100 m |
| 2 | 2.5 mm2 | 1×1.78 mm2 | 100 m |
| 3 | 4 mm2 | 1×2.25 mm2 | 100 m |
| 4 | 6 mm2 | 1×2.76 mm2 | 100 m |
| 5 | 10 mm2 | 7×1.35 mm2 | 100 m |
| 6 | 16 mm2 | 7×1.70 mm2 | 100 m |
| 7 | 25 mm2 | 7×2.14 mm2 | 100 m |
PVC insulated PVC/XLPE sheathed Twin cables with/without earth
BVVB (300-500 Voltage) |
| 8 | 2×1 +1 mm2 | 2×1.13 +1.13 mm2 | 100 m |
| 9 | 2×1.5 +1 mm2 | 2×1.38 +1.13 mm2 | 100 m |
| 10 | 2×2.5 +1.5 mm2 | 2×1.78 +1.38 mm2 | 100 m |
| 11 | 2×4 +2.5 mm2 | 2×2.25 +1.78 mm2 | 100 m |
| 12 | 2×6 +4 mm2 | 2×2.76 +2.25 mm2 | 100 m |
| 13 | 2×10+4 mm2 | 2×7×1.35 +2.25 mm2 | 100 m |
| 14 | 2×16+6 mm2 | 2×7×1.70 +2.76 mm2 | 100 m |
| PVC insulated non-sheathed Multi flexible wires BVR (450-750 Voltage) |
| 15 | 1.5 mm2 | 7×0.52 mm2 | 100 m |
| 16 | 2.5 mm2 | 19×0.41 mm2 | 100 m |
| 17 | 4 mm2 | 19×0.52 mm2 | 100 m |
| 18 | 6 mm2 | 19×0.63 mm2 | 100 m |
| 19 | 10 mm2 | 49×0.52 mm2 | 100 m |
| 20 | 16 mm2 | 49×0.63 mm2 | 100 m |
| |
| PVC insulated PVC/XLPE sheathed copper cables (Lower than 1000 Voltage) |
| No. | Size | Specification |
| 21 | 3×2.5 mm2 | 3×1.78 mm2 |
| 22 | 3×4 mm2 | 3×2.25 mm2 |
| 23 | 3×4+1×2.5 mm2 | 3×2.25+1×1.78 mm2 |
| 24 | 3×4+2×2.5 mm2 | 3×2.25+2×1.78 mm2 |
| 25 | 3×6 mm2 | 3×2.76 mm2 |
| 26 | 3×6+1×4 mm2 | 3×2.76+1×2.25 mm2 |
| 27 | 3×6+2×4 mm2 | 3×2.76+2×2.25 mm2 |
| 28 | 3×10 mm2 | 3×7×1.35 mm2 |
| 29 | 3×10+1×6 mm2 | 3×7×1.35+1×2.76 mm2 |
| 30 | 3×10+2×6 mm2 | 3×7×1.35+2×2.76 mm2 |
| 31 | 3×16 mm2 | 3×7×1.70 mm2 |
| 32 | 3×16+1×10 mm2 | 3×7×1.70+1×7×1.35 mm2 |
| 33 | 3×16+2×10 mm2 | 3×7×1.70+2×7×1.35 mm2 |
| 34 | 3×25+1×16 mm2 | 3×7×2.14+1×7×1.70 mm2 |
| 35 | 3×25+2×16 mm2 | 3×7×2.14+2×7×1.70 mm2 |
| 36 | 3×35+1×16 mm2 | 3×7×2.52+1×7×1.70 mm2 |
| 37 | 3×35+2×16 mm2 | 3×7×2.52+2×7×1.70 mm2 |
| 38 | 3×50+1×25 mm2 | 3×10×2.52+1×7×2.14 mm2 |
| 39 | 3×50+2×25 mm2 | 3×10×2.52+2×7×2.14 mm2 |
| 40 | 3×70+1×35 mm2 | 3×14×2.52+1×7×2.52 mm |
| 41 | 3×70+2×35 mm2 | 3×14×2.52+2×7×2.52 mm2 |
| 42 | 3×95+1×50 mm2 | 3×19×2.52+1×10×2.52 mm2 |
| 43 | 3×95+2×50 mm2 | 3×19×2.52+2×10×2.52 mm2 |
| | | |
