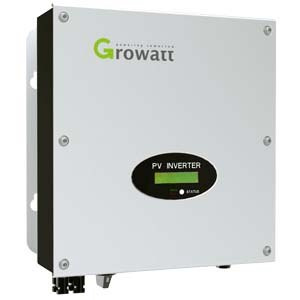

Hot Sale Solar Inverter 2018 The Best Quality and Prices in Solar Power System
| Price: |
US $ 290-326/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
3kw |
| Color: |
Silver |
| Protection: |
Short Circuit Protection |
| Size: |
271/267/142 |
| Warranty: |
5 Years |
Product Description
Production Description| Parameter |
| Item | Model Parameter | 3000W(DUAL MPPT single PHASE) |
Input data(DC) | Max. DC power (W) | 3500 |
| | Max. DC voltage (V) | 550 |
| | Start voltage (V) | 100 |
| | PV voltage range (V) | 70-550 |
| | MPP work voltage range/ nominal voltage (V) | 80-500/360 |
| | Full load dc voltage range (V) | 160-450 |
| | Max. input current (A) | 10 |
| | Max. input current per string (A) | 10 |
| | Number of independent MPP trackers / strings per MPP tracker
| 2/1 |
Output (AC)
| Rated AC output power (W) | 3000 |
| | Max. AC power (W) | 3000 |
| | Max. output current (A) | 13.6 |
| | AC nominal voltage; range | 220V/180Vac-280Vac |
| | AC grid frequency; range (Hz) | 50/60 /±5 |
| | Power factor | 1 |
| | THDI | <3% |
| | AC connection | Single phase |
Efficiency | Max. Efficiency | 97.6% |
| | Euro weighted efficiency | 97.4% |
| | MPPT Efficiency | 99.5% |
Protection devices | DC reverse polarity protection | yes |
| | DC switch rating for each MPPT | yes |
| | Output over current protection | yes |
| | Output over voltage protection-varistor | yes |
| | Ground fault monitoring | yes |
| | Grid monitoring | yes |
| | Integrated all - pole sensitive leakage current monitoring unit | yes |
General Data | Dimensions (W / H / D) in mm | 355/419/138 |
| | Weight (kg) | 14 |
| | Operating temperature range | -25°C ... +60°C (-13...+140ºF) with derating above 45°C /113ºF |
| | Noise emission (typical) (dB) | ≤ 25 |
| | Altitude (m) | 2000(6560ft) without derating |
| | Self-Consumption night (W) | <0.5 |
| | Topology | transformerless |
| | Cooling concept | Natural |
| | Environmental Protection Rating | IP65 |
| | Relative humidity | 100% |
Features | DC connection | H4/MC4 (OPT) |
| | AC connection | connector |
| | Display | LCD |
| | Interfaces: RS232/Wifi | yes/opt |
| | Warranty: 5 years | yes |
| | Certificates and approvals | CE, VDE 0126-1-1, VDE-AR-N-4105,IEC 62109, G83, AS4777, NBT32004-2013, EN50438, CEI 0-21,INMETRO |
Packaging and shipping
Our services
1. Rich experience in manufacturing and exporting electric equipment.
2. High quality and competitive price.
3. Strict quality control and excellent after-sales service.
4. Manufacturing according to customers requirements is available.
SAFEE ELECTRIC EQUIPMENT Co., Limited, founded in 2013, is set research and development in our country, production, sales in the integration of science and technology communication EQUIPMENT, fittings professional manufacturers, the company headquarters is located in hebei province shijiazhuang qiaoxi, branch is located in hebei xingtai guangzong county industrial area, transportation is work, the environment is superior.
The company covers an area of more than 28000 square meters, The company existing staff 200 people, o quality management personnel more than 20 people, to meet The rapid growth of demand, The company established a long - term development planning and recent plan, enables The system to implement effectively, make The company fast and efficient.
My company 's existing: Steel strand, circuit, iron casting, all kinds of standard parts, safety instruments and other electric products, gradually to export products from domestic transformation.
Specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are sold throughout the country, marketing has entered the export-oriented, products are sold to Asia, Africa, Middle East, Western Europe, eastern Europe and South America market, modern management and perfect after-sales service system, to build China's power industry well-known brands, we will be more hard work, adhering to the principle of quality is the enterprise life, to a higher standard, create value for users, with global cooperation, hand in hand and win-win marketing idea is willing to work with new and old customers at home and abroad hand in hand, altogether will create the glorious future, Sincerely welcome to visit our company, we supply superior quality products and excellent service always.
