Hot Sale Standard Flat Submersible Pump Cable

Name: Hot Sale Standard Flat Submersible Pump Cable
Brand: all-electronics-online.com
SKU: 802860915
Availability: InStock
Rating: 4.4 (133 reviews)

Price:	US $ 0.15-0.2/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC089
Color:	Black,White,Grey,Yellow,Red,Blue etc.
Sizes:	Customized
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Brand:	Gemt

Product Description

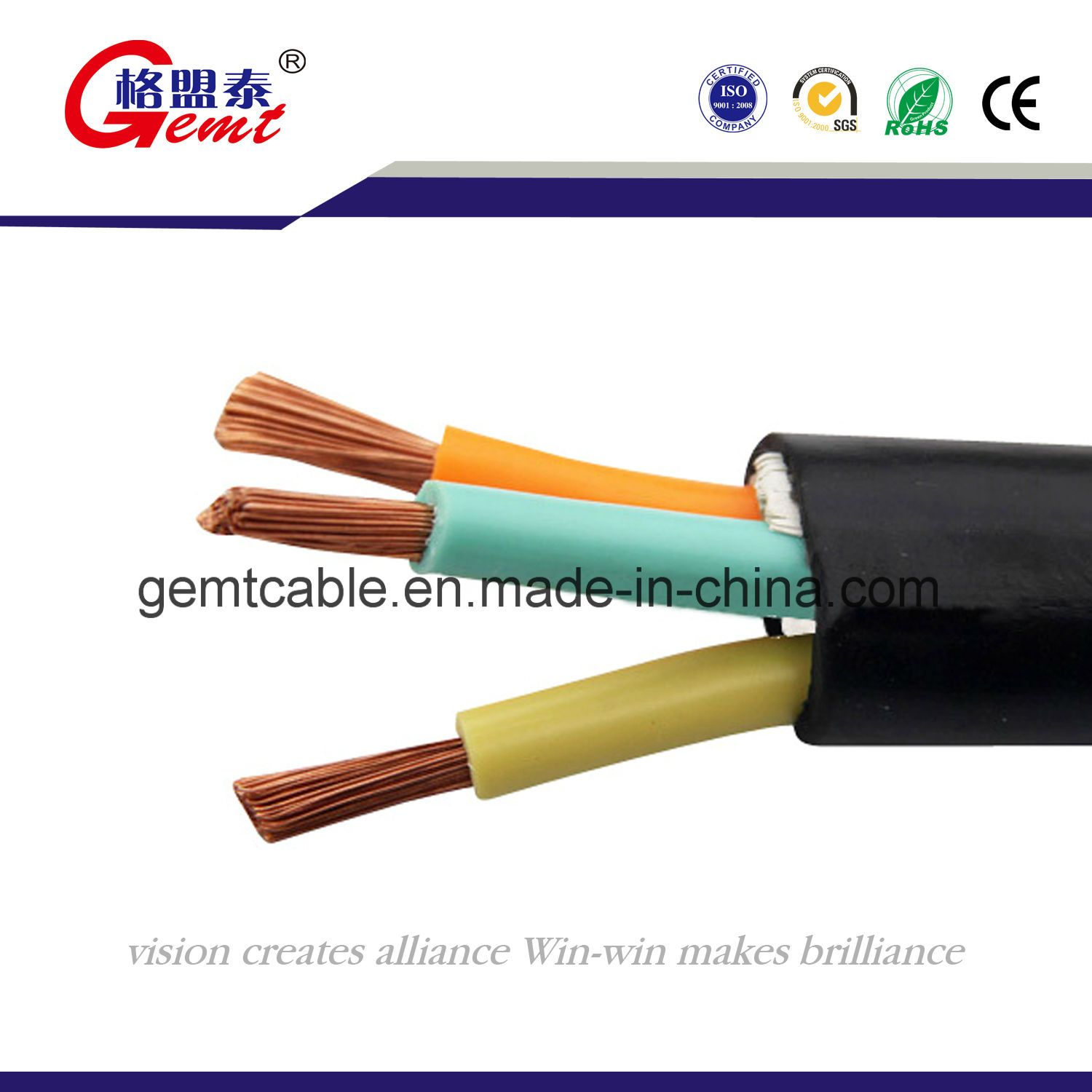

Hot Sale Standard Flat Submersible Pump Cable

1. Details of Transaction:

1) Minimum order quantity: 10 kilometers at least

2) Price: FOB or CIF at any port in China

3) Payment: 30% down payment, balance against B/L copy

4) Lead Time: within 20 days

5) Packing: 100m/roll or 500m/roll in bag, box or drum

6) Sample: Free sample is available for you

7) Individual Service: can print your logo or brand name on cable

2. Cable Introduction:
Standard: IEC 60228/BS6360
Application: Used to power submersible pumps in wells. Also used for irrigation equipment, electric pumps submerged in wells, ponds or similar places.
Structure: Tinned copper or pure copper conductor; PVC or rubber insulator.
Rated Voltage: 600/1000V
Package: Carton, Drum, Poly Bag.

CONDUCTOR		PVC INSULATION		TOTAL THICKNESS OF DOUBLR PVC SHEATH		Conductor Resistance at 20ºC(MAX) ohms/km	CURRENT Rating at 40ºC Amps
Nominal Area in	Nos.& Dia. of wire	Nominal Thickness	Nominal Core Dia.	Nominal Thickness	Approx.O.D
Sq.mm.	Nos./mm	mm	mm	mm	mm
1.5	22/0.30	0.8	3.25	1.5	10.8	12.1	14
2.5	36/0.30	0.9	3.84	1.65	12.5	7.41	18
4	56/0.30	1	4.5	1.65	14.1	4.95	26
6	85/0.30	1	5.3	1.65	16	3.3	31
10	140/0.30	1	6.5	2	20.35	1.91	42
16	226/0.30	1	8	2	23.4	1.21	57
25	354/0.30	1.2	10.1	2.2	28.8	0.78	72
35	495/0.30	1.2	11.5	2.2	31.5	0.554	90
50	703/0.30	1.4	13.6	2.3	37.3	0.386	115
70	440/0.30	1.4	15.3	2.6	42.2	0.272	143
95	475/0.50	1.6	18	2.65	48.8	0.206	165

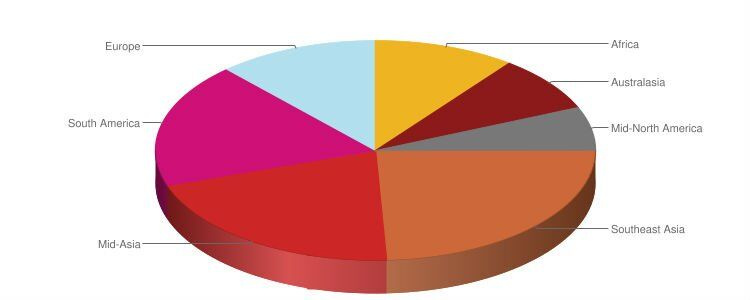

3. To Which Market:

4. Why Choose Us(GEMT):

G--Guaranteed quality

E--Effective service

M--Mutual benefit

T--Top technique

GEMT Cable, Friend Reliable

5. Company Information:
Company:

Factory:

Trade show:

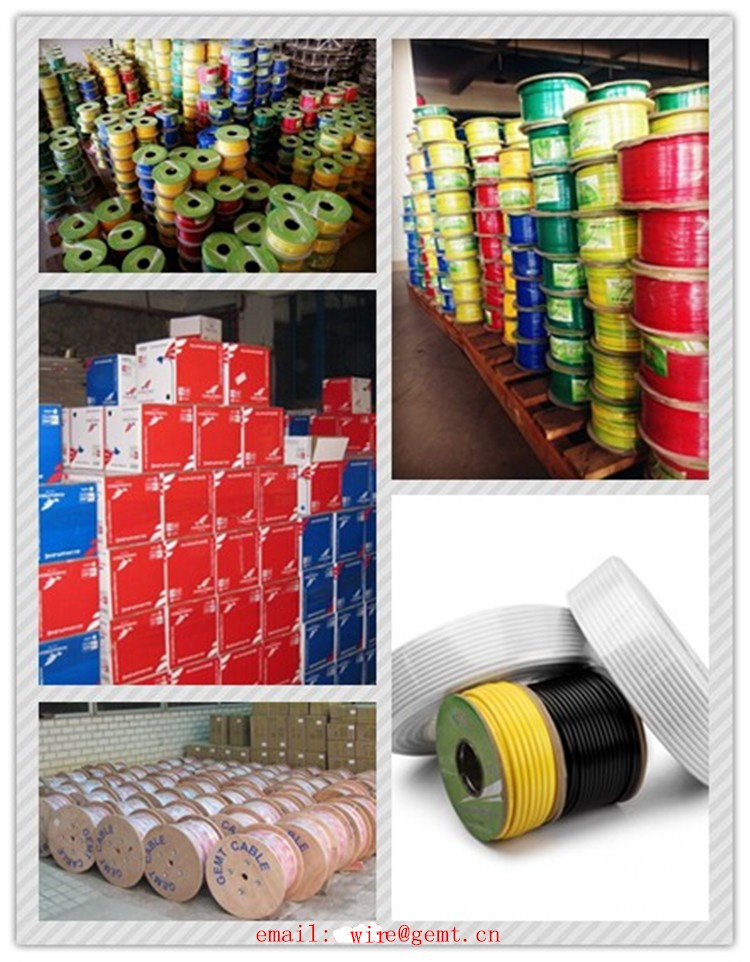

Packing & shipping:

Certification:

6. FAQ:

Q: Can I have a sample?

A: Yes, we welcome sample order to test and check quality.

Mixed samples are acceptable.

Q: How long is the lead time?

A: Sample needs 1-2 days; mass production needs 15-30 days.

Q: Do you have the MOQ limit?

A: Our MOQ is 100-10000meters, depending on the products;

Sea Port: FOB Shenzhen.

Q: Do you provide OEM or ODM services?

A: Yes, we do.

Q: Do you offer guarantee for the products?

A: Yes, we offer five years guarantee for the products.

WARMLY WELCOME TO VISIT TO OUR FACTORY AND SHOWROOM , AND KNOW MORE ABOUT US ~~~~

PLS FEEL FREE TO

CONTACT ME : VERA ZHUANG
TEL:+86-13415529380

Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.

The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.

Our tenet is "Specialized quality, Sincere service",

From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise

Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
