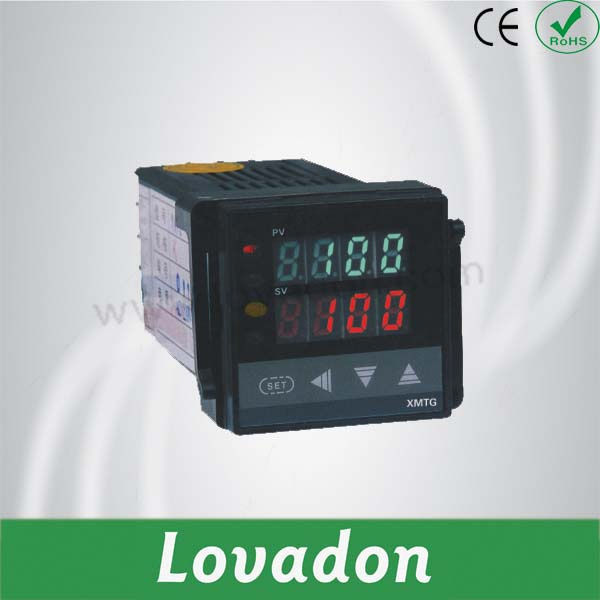

Hot Sale Temperature Controller (XMTG)

Prod Model:	XMTG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy:	0.1
Temperature Range:	-9999-9999
Linear Current Input:	4-20mA
AC/DC:	85-260V
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type

Product Description

1. General
XMTG series intelligent digital temperature regulator adopt the advanced microcomputer intelligent control technology, and it
Has strong noise proof ability. The products are made according to the international standards by taking wide range
Switching power.
The products own the advanced PID adjustment composed with the latest fuzzy control to deal with the controlled high-
Speed changing and retardation time. Because of the advantage non-super adjusting plan, the products are easier to use.
This series of intelligent digital temperature controller is an economical meter with high ration of quality to price, and can
Take the place of conventional digital temperature controller. It has a combined control instrument of multi-function control,
Alarm, transmitting as well as PID control function.
Input signal
(1)Electric thermocouple S R B K N E J T W 5Re/W26Re PLIIUL
(2)Thermal resistance PT100 Jpt100 Cu50
(3)Linear signal 0-5V 1-5V mVF (frequency) 0-10mA 0-20mA 4-20mA
(4)Linear signal radiations
(5)Definable nonstandard signal inputting Elementary error: Input a character 0.2% of the full range.
Resolution ratio: 1C 0.1 C.
Mpling period: 3 times/sec, can reach 8 times/sec.
Alarm function: Upper bound, lower limit, upper deviation, lower deviation, upper and lower deviation, within the range of
Waiting alarm.
Control output: Relay contact AC250V 3A(resistance)
Alarm output:
(1)Relay contact AC250V 3A(resistance)
(2)Logical voltage: DC 0-5V
(3)Zero passage pulse actuating: Optically thyristor output 1A 600V
(4)phase-shift pulse actuating: Optically thyristor output 1A 600V
(5)0-10mA output current(load resistance under 600 )
(6)0-20mA output current(load resistance under 600 )
(7)0-40mA output current(load resistance under 600 )
Control ways: PID fuzzy control. State control, Handle control.
Manual operation: Modify the output by keyboard.
Dower voltage: (1)AC85-264V(50/60Hz)(Rated 100-240V AC)
(2)21.6-26.4V AC(Rated 24V AC)
(3)21.6-26.4V AC(Rated 24V AC)
Operating temperature: Non-corrosion place with temperature 0-500 humidity<85% HP Power consumption<5VA
Overall dimension: S: 80 160, A: 96 96, D: 72 72, E: 96 48, F: 48 96, G: 48 48mm.

Temperature input-1	Thermocouple:K,S,T,B,J,T,N
Temperature input-2	RTD:PT100,CU50,CU500
Linear Current Input	4-20mA,
AC/DC	85-260V
Display	LED
Accuracy	0.2%FS±1
SSR	DC8V /30mA
