| Prod Model: |
WP311A |
| Item Name: |
Level Sensor |
| Accuracy: |
0.1%Fs;0.2%Fs; 0.5 %Fs |
| Measuring Range: |
0-0.5~200mh2o |
| Power Supply: |
24V DC |
| Output Signal: |
4-20mA (2 Wire), 4-20mA with Hart Protocol |
| Protection Grade: |
IP68 |
| Indicator (Local Display ): |
4 Bits/ 16bits LCD Indicator |
| Operation Temperature: |
-40~85ºC (Medium Cannot Be Solid) |
| Measuring Medium: |
Gas, Air, Liquids, |
Product Description
This series Hot sale water fuel diesel level sensor transmitter can be used to measure & control liquid pressure in :
- Level measuring
- Building automation
- Ocean and ship
- Vacuum equipment
- Constant pressure water supply
- Metallurgy, environment protection
- Medical treatment and etc.
Description:

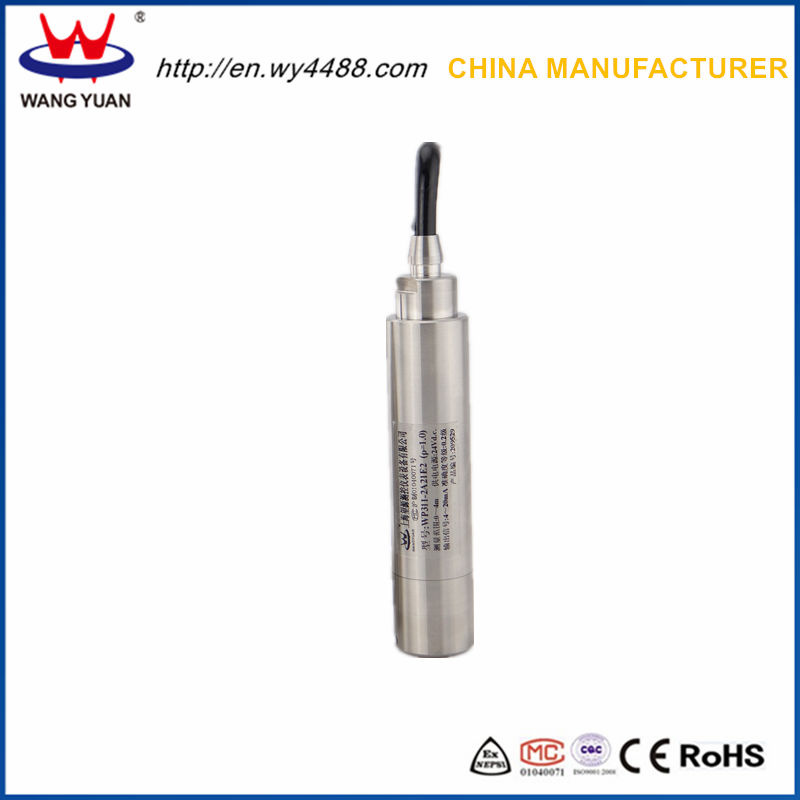

1. WP311A Boiler water Level sensor (also called static level transmitter) adopt advanced imported sensitive component with anti-corrosive diaphragm, the sensor chip was put inside a stainless steel (or Teflon) shell.
2. This model boiler water level transmitter is Two-piece liquid level sensor type with Junction box. Only pressure probe of this level transmitter will be thrown in liquid, circuit board is inside of junction box from another end, easy to adjust by customer.

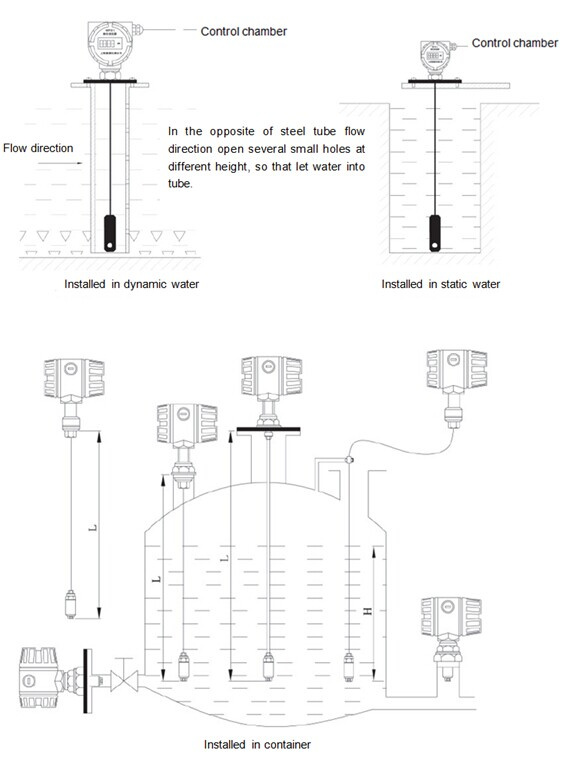

3. Installation method is M36*2 thread installation or DN50 PN0.6(GB9119-88) Standard flange installation ( or you can choose "L shape mounting bracket");
4. Probe's material of two-piece flange liquid level transmitter is SUS304 or SUS316L, cable sheathing is rubber plastic. Special requirement, Teflon probe, SS or Teflon cable sheathing is available.
Features
* Imported sensor component
* Various output signal
* Excellent corrosion proof and seal
* High stability & reliability
* Meet the standard for ships
* High precision 0.1%FS, 0.2%FS, 0.5%FS
Specification:
Name | ShHot sale water fuel diesel level sensor transmitter |
Pressure range | 0-0.5~200mH2O |
Accuracy | 0.1%FS; 0.2%FS; 0.5 %FS |
Supply voltage | 24VDC |
Output | 4-20mA (2 wire), 4-20mA with HART protocol |
Operating temperature | -40~85ºC (medium cannot be solid) |
Protection grade | IP68 |
Overload | 150%FS |
Stability | 0.2%FS/year |
Electric connector | Vented cable |
Installation type | M36*2, DN50 PN1.6 Flange (only for WP311 A) |
Pressure connector | M20*1.5, Optional |
Measured medium | All corrosive media compatible with 316L stainless steel or alumina ceramics |
Note: more detailed parameters, please feel free to contact us. |
Dimension:
Company Information:
Our service:
1. We have rich experience of OEM, factory can manufacture according to your request.
2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.
3. We can offer you neutral packing without our logo and company information.
4. Warranty: We offer 12 months warranty for all of our products from shipping date;
5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;
6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.
Shanghai Wangyuan Instruments of Measurement Co., Ltd. is a high-tech enterprise level company specializing in industrial process control technology and products. We offer a complete product line of pressure, temperature, flow and indicator. Our products and services comply with the professional standards of CE, ISO 9001, RoHS, Explosion proof and CPA.
Our main products are including Pressure transmitters, Pressure transducers, Pressure sensor, Level Transmitter, Differential pressure transmitter (DP transmitter), Temperature transmitter, Flow meter, Intelligent indicator, Control instrument, Paperless recorder, Pressure switch and etc.
Our products are applying in the fields like food & beverage plant, water and waste water treatment, oil & gas, electric power, scientific research, ocean, boiler, coal mine, forklift weighing system HVAC systems, CNG & LNG, air condition, fuel pressure measurement and other process control industries.

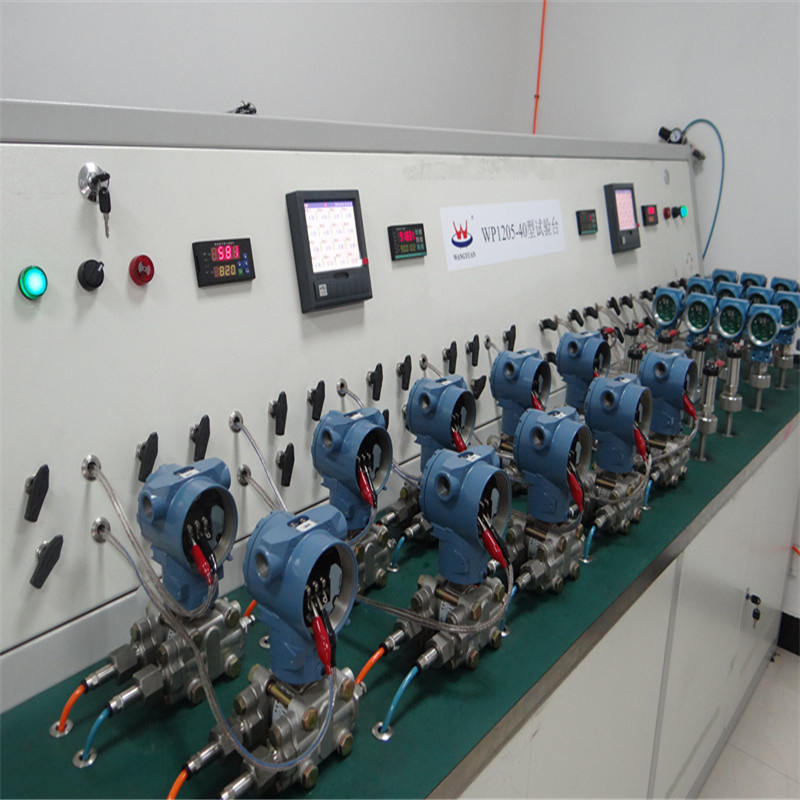

In addition, with our highly skilled and experienced team of professional engineers and technicians we can provide integrated research and development services that rank us at the top of our industry. All products are thoroughly tested in-house with our vast array of calibration and special testing equipment. Our testing process is conducted in accordance with a strict quality control system.
